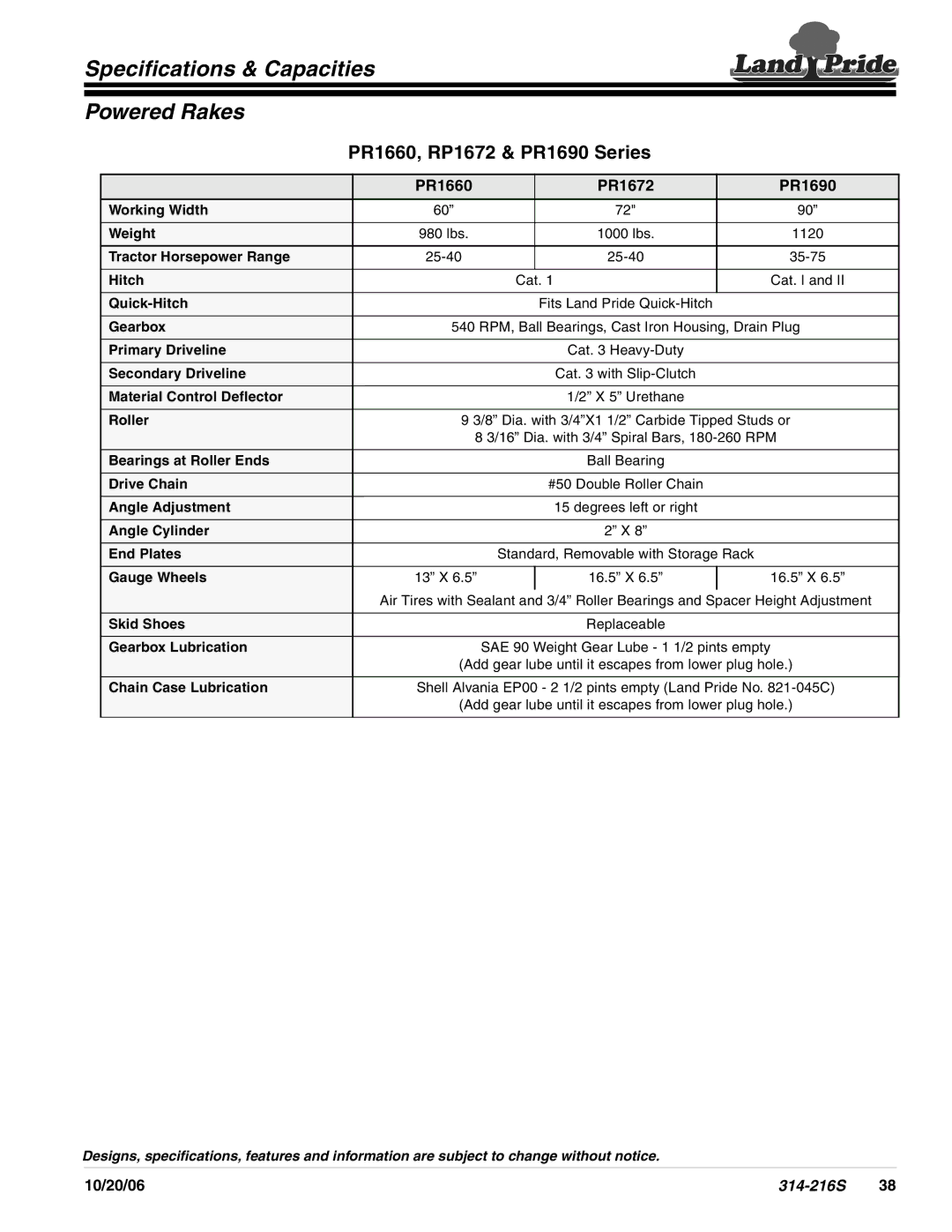

Specifications & Capacities
Powered Rakes
PR1660, RP1672 & PR1690 Series
| PR1660 |
| PR1672 |
| PR1690 |
Working Width | 60” |
| 72" |
| 90” |
Weight | 980 lbs. |
| 1000 lbs. |
| 1120 |
Tractor Horsepower Range |
|
| |||
Hitch |
| Cat. 1 |
| Cat. I and II | |
|
| Fits Land Pride |
| ||
Gearbox | 540 RPM, Ball Bearings, Cast Iron Housing, Drain Plug | ||||
Primary Driveline |
|
| Cat. 3 |
| |
Secondary Driveline |
|
| Cat. 3 with |
| |
Material Control Deflector |
|
| 1/2” X 5” Urethane |
| |
Roller | 9 3/8” Dia. with 3/4”X1 1/2” Carbide Tipped Studs or | ||||
| 8 3/16” Dia. with 3/4” Spiral Bars, | ||||
Bearings at Roller Ends |
|
| Ball Bearing |
| |
Drive Chain |
|
| #50 Double Roller Chain |
| |
Angle Adjustment |
|
| 15 degrees left or right |
| |
Angle Cylinder |
|
| 2” X 8” |
| |
End Plates |
| Standard, Removable with Storage Rack |
| ||
Gauge Wheels | 13” X 6.5” |
| 16.5” X 6.5” |
| 16.5” X 6.5” |
| Air Tires with Sealant and 3/4” Roller Bearings and Spacer Height Adjustment | ||||
Skid Shoes |
|
| Replaceable |
| |
Gearbox Lubrication |
| SAE 90 Weight Gear Lube - 1 1/2 pints empty |
| ||
| (Add gear lube until it escapes from lower plug hole.) | ||||
Chain Case Lubrication | Shell Alvania EP00 - 2 1/2 pints empty (Land Pride No. | ||||
| (Add gear lube until it escapes from lower plug hole.) | ||||
|
|
|
|
|
|
Designs, specifications, features and information are subject to change without notice.
10/20/06 | 38 |
