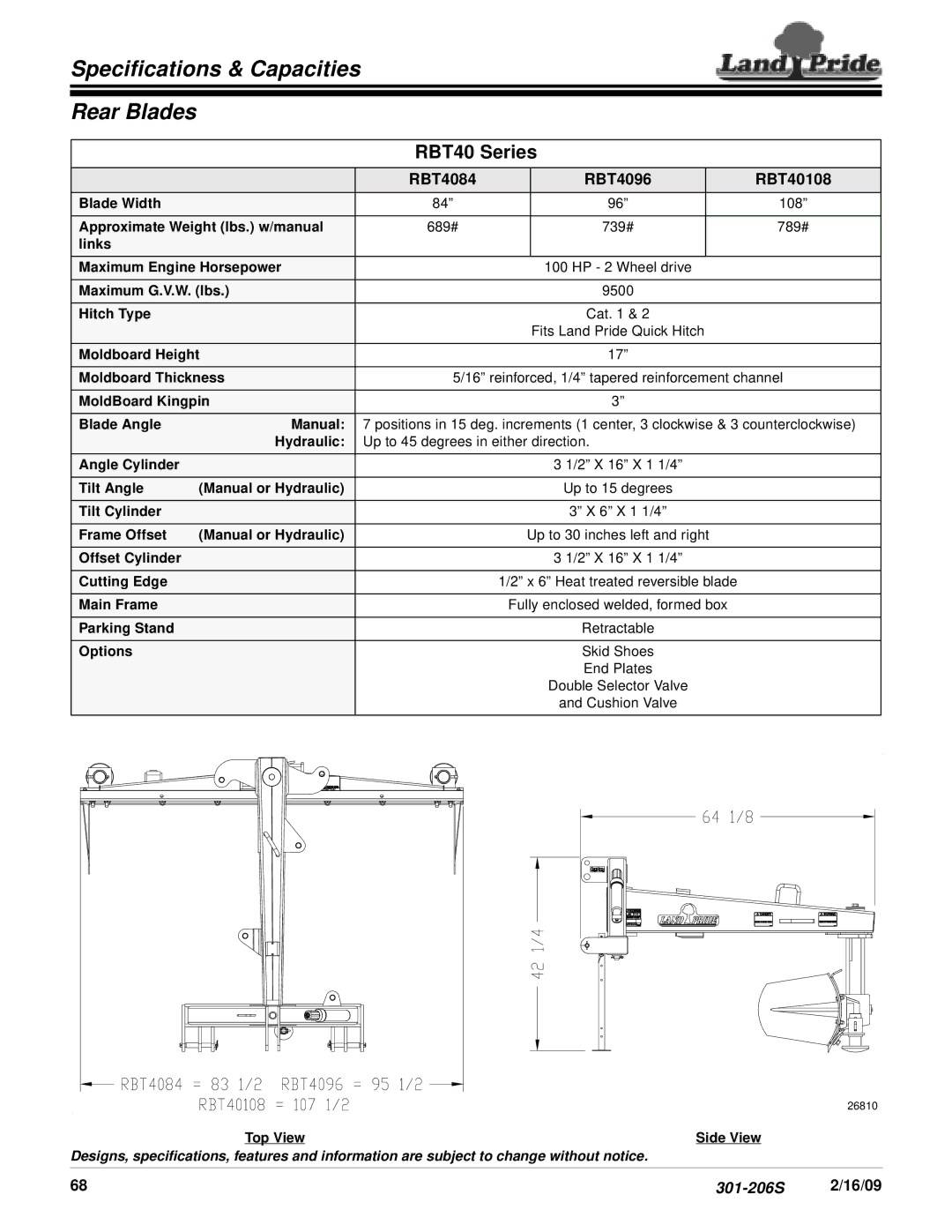

Specifications & Capacities
Rear Blades
RBT40 Series
|
| RBT4084 |
|
| RBT4096 |
|
| RBT40108 | ||||||||||||||||||
Blade Width |
| 84” |
|
|
| 96” |
|
|
|
| 108” | |||||||||||||||
Approximate Weight (lbs.) w/manual | 689# |
| 739# |
|
|
|
|
|
|
| 789# |
|
|
|
|
| ||||||||||
links |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Maximum Engine Horsepower |
|
| 100 HP - 2 Wheel drive |
|
|
|
|
|
|
|
|
| ||||||||||||||
Maximum G.V.W. (lbs.) |
| 9500 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| ||||||||
Hitch Type |
|
|
|
| Cat. 1 & 2 |
|
|
|
|
|
|
|
|
| ||||||||||||
|
|
|
| Fits Land Pride Quick Hitch |
|
|
|
|
|
|
|
|
| |||||||||||||
Moldboard Height |
|
|
|
| 17” |
|
|
|
|
|
|
|
|
| ||||||||||||
Moldboard Thickness | 5/16” reinforced, 1/4” tapered reinforcement channel | |||||||||||||||||||||||||
MoldBoard Kingpin |
|
|
|
| 3” |
|
|
|
|
|
|
|
|
| ||||||||||||
Blade Angle | Manual: | 7 positions in 15 deg. increments (1 center, 3 clockwise & 3 counterclockwise) | ||||||||||||||||||||||||
| Hydraulic: | Up to 45 degrees in either direction. |
|
|
|
|
|
|
|
|
| |||||||||||||||
Angle Cylinder |
|
|
| 3 1/2” X 16” X 1 1/4” |
|
|
|
|
|
|
|
|
| |||||||||||||
Tilt Angle | (Manual or Hydraulic) |
|
| Up to 15 degrees |
|
|
|
|
|
|
|
|
| |||||||||||||
Tilt Cylinder |
|
|
| 3” X 6” X 1 1/4” |
|
|
|
|
|
|
|
|
| |||||||||||||
Frame Offset | (Manual or Hydraulic) |
| Up to 30 inches left and right |
|
|
|
|
|
|
|
|
| ||||||||||||||
Offset Cylinder |
|
|
| 3 1/2” X 16” X 1 1/4” |
|
|
|
|
|
|
|
|
| |||||||||||||
Cutting Edge |
|
| 1/2” x 6” Heat treated reversible blade |
|
|
|
|
|
|
|
|
| ||||||||||||||
Main Frame |
|
| Fully enclosed welded, formed box |
|
|
|
|
|
|
|
|
| ||||||||||||||
Parking Stand |
|
|
|
| Retractable |
|
|
|
|
|
|
|
|
| ||||||||||||
Options |
|
|
|
| Skid Shoes |
|
|
|
|
|
|
|
|
| ||||||||||||
|
|
|
|
| End Plates |
|
|
|
|
|
|
|
|
| ||||||||||||
|
|
|
| Double Selector Valve |
|
|
|
|
|
|
|
|
| |||||||||||||
|
|
|
| and Cushion Valve |
|
|
|
|
|
|
|
|
| |||||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
26810
Top View | Side View |
Designs, specifications, features and information are subject to change without notice.
