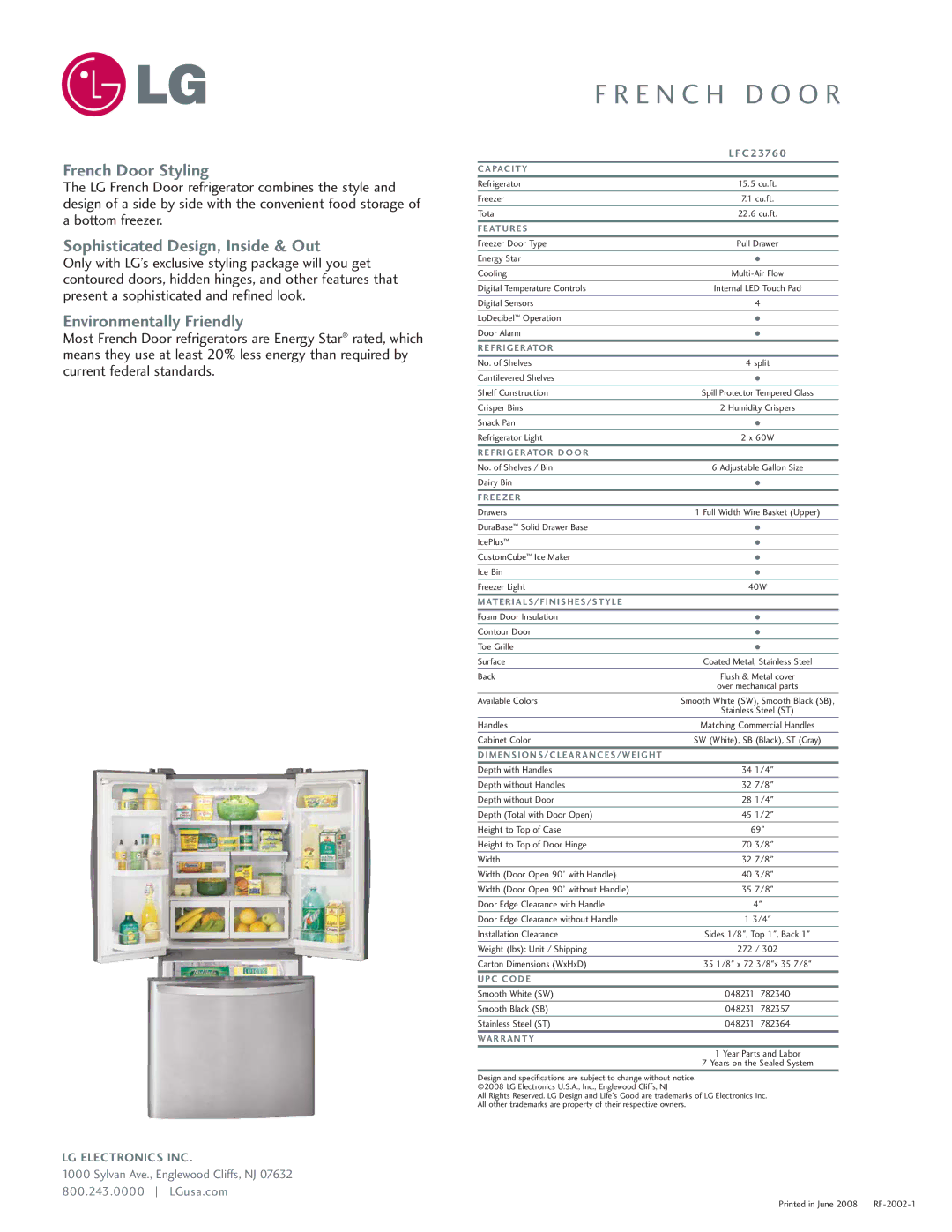

French Door Styling

The LG French Door refrigerator combines the style and design of a side by side with the convenient food storage of a bottom freezer.

Sophisticated Design, Inside & Out

Only with LG’s exclusive styling package will you get contoured doors, hidden hinges, and other features that present a sophisticated and refined look.

Environmentally Friendly

Most French Door refrigerators are Energy Star® rated, which means they use at least 20% less energy than required by current federal standards.

F R E N C H

D O O R





LFC23760

C A PAC I T Y









Refrigerator



15.5 cu.ft.



Freezer



7.1 cu.ft.



Total



22.6 cu.ft.

F E AT U R E S









Freezer Door Type



Pull Drawer

Energy Star









Cooling



Multi-Air Flow



Digital Temperature Controls

Internal LED Touch Pad

Digital Sensors



4



LoDecibel™ Operation









Door Alarm









R E F R I G E RATO R









No. of Shelves



4 split

Cantilevered Shelves









Shelf Construction

Spill Protector Tempered Glass

Crisper Bins

2 Humidity Crispers

Snack Pan









Refrigerator Light



2 x 60W

REFRIGERATOR DOOR









No. of Shelves / Bin

6 Adjustable Gallon Size

Dairy Bin









FREEZER









Drawers

1 Full Width Wire Basket (Upper)

DuraBase™ Solid Drawer Base









IcePlus™









CustomCube™ Ice Maker









Ice Bin









Freezer Light



40W

MATERIALS/FINISHES/STYLE









Foam Door Insulation









Contour Door









Toe Grille









Surface

Coated Metal, Stainless Steel



Back

Flush & Metal cover



over mechanical parts



Available Colors

Smooth White (SW), Smooth Black (SB),



Stainless Steel (ST)

Handles

Matching Commercial Handles



Cabinet Color

SW (White), SB (Black), ST (Gray)

DIMENSIONS/CLEARANCES/WEIGHT









Depth with Handles



34 1/4"



Depth without Handles



32 7/8"



Depth without Door



28 1/4"



Depth (Total with Door Open)



45 1/2"



Height to Top of Case



69"



Height to Top of Door Hinge



70 3/8"



Width



32 7/8"



Width (Door Open 90° with Handle)



40 3/8"



Width (Door Open 90° without Handle)



35 7/8"



Door Edge Clearance with Handle



4"



Door Edge Clearance without Handle



1 3/4"



Installation Clearance

Sides 1/8", Top 1", Back 1"

Weight (lbs): Unit / Shipping



272 / 302



Carton Dimensions (WxHxD)

35 1/8" x 72 3/8"x 35 7/8"

UPC CODE









Smooth White (SW)



048231 782340



Smooth Black (SB)



048231

782357



Stainless Steel (ST)



048231

782364



WARRANTY









1 Year Parts and Labor

7 Years on the Sealed System

Design and specifications are subject to change without notice. ©2008 LG Electronics U.S.A., Inc., Englewood Cliffs, NJ

All Rights Reserved. LG Design and Life's Good are trademarks of LG Electronics Inc. All other trademarks are property of their respective owners.

LG ELECTRONICS INC.

1000 Sylvan Ave., Englewood Cliffs, NJ 07632

800.243.0000

LGusa.com

Printed in June 2008 RF-2002-1

Page 2
Image 2
LG Electronics LFC23760ST manual French Door Styling, Sophisticated Design, Inside & Out, Environmentally Friendly

LFC23760ST specifications

The LG Electronics LFC23760ST is a standout model in the realm of modern refrigerators, known for its sleek design and advanced technology aimed at enhancing user convenience and food preservation. This refrigerator boasts a generous capacity of 23 cubic feet, providing ample space for groceries, beverages, and leftovers, making it a fantastic choice for families or individuals who require extra storage.

One of the key features of the LFC23760ST is its Smart Cooling System, which employs multiple fans and strategically placed vents to ensure consistent temperatures throughout the refrigerator and freezer compartments. This technology helps maintain optimal humidity levels, preserving the freshness of fruits and vegetables for longer periods. Additionally, it is equipped with Linear Compressor technology, which operates quietly and efficiently. This advanced compressor not only reduces energy consumption but also reduces noise levels, creating a more serene kitchen environment.

The refrigerator includes a wide range of customizable storage options, such as adjustable shelves and door bins, allowing users to configure the space to accommodate items of various sizes. The Glide N’ Serve drawer provides easy access to snacks and deli meats, while the Smart Pull Handle simplifies opening and closing the fridge, especially when hands are full.

Another notable characteristic of the LFC23760ST is its Energy Star certification, highlighting its commitment to energy efficiency. By consuming less electricity than standard models, it not only contributes to a reduced carbon footprint but also results in lower energy bills.

The dual ice maker feature is another highlight of this refrigerator. It produces both regular ice cubes and a unique form of ice that is perfect for entertaining or mixing drinks. The ice plus function boosts ice production for times when extra ice is needed.

Furthermore, the exterior features a fingerprint-resistant finish that helps maintain the refrigerator’s sleek appearance while minimizing smudges and fingerprints, making it easier to clean.

In summary, the LG Electronics LFC23760ST stands out with its spacious design, smart cooling technologies, energy-efficient operation, and user-friendly features, making it a practical and stylish addition to any modern kitchen.
