LG Electronics LFD21860 Wide Open Spaces, SmoothTouch Digital Temperature Controls, Tilt-A-Drawer

Wide Open Spaces

Open all three doors and take a step back. The Side by Side style gives you a panoramic view of all your fresh food, while the gallon size bins, slide-out shelves, and OptiBin™ drawers give you plenty of organizational options. Look down below, and the Bottom Freezer offers an extra-large capacity that can even hold a large frozen turkey.

SmoothTouch Digital Temperature Controls

Ensure precise temperature control in the refrigerator and freezer compartments. Located on the outside of the refrigerator, the touch-sensitive digital controls also allow you to use the IcePlus™ function, monitor room temperature, and reset the water filter.

External Water Dispenser

Fresh cold filtered water is dispensed on the exterior of the refrigerator to provide convenience and save energy by not opening the door.

Tilt-A-Drawer™

The freezer door tilts downward approximately 45 degrees for easy access to the entire freezer compartment.

Glide N' Serve™ Drawer

Full width drawer with an OptiBin™ opening allows for easy storage of platters, cans and wines.

Multi-Air Flow Cooling

Vents are located on every shelf for even air distribution and longer lasting food freshness.

OptiBin™ Crisper

Optimizes humidity, extending life of most fruits and vegetables with the innovative Magic Crisper grid. The crisper lid automatically lifts out of the way when the door is opened.

BioShield™ Anti-Bacterial Seal

Unique feature prevents mold and mildew from building up on the door seal.

LG ELECTRONICS INC.

1000 Sylvan Ave., Englewood Cliffs, NJ 07632

800.243.0000 LGappliances.com

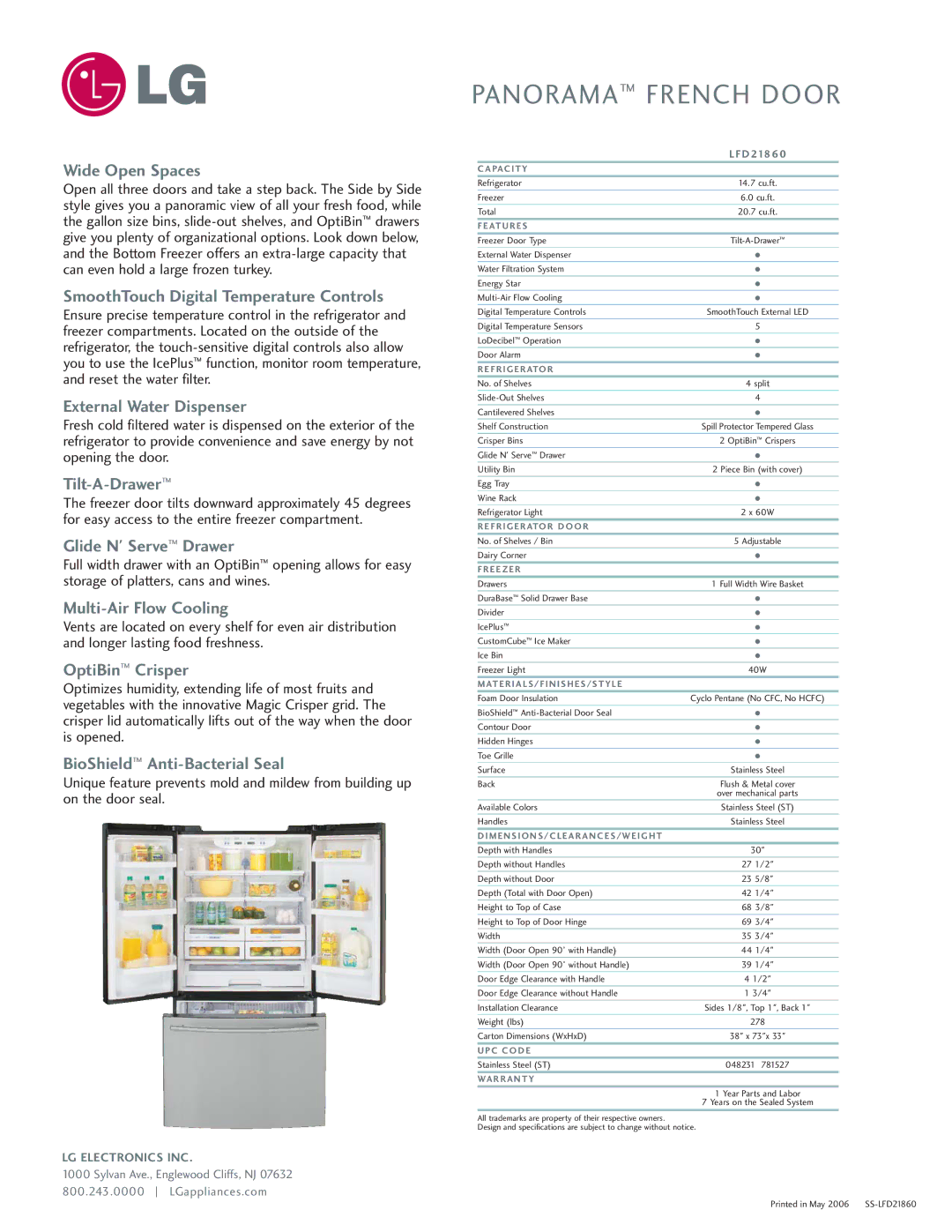

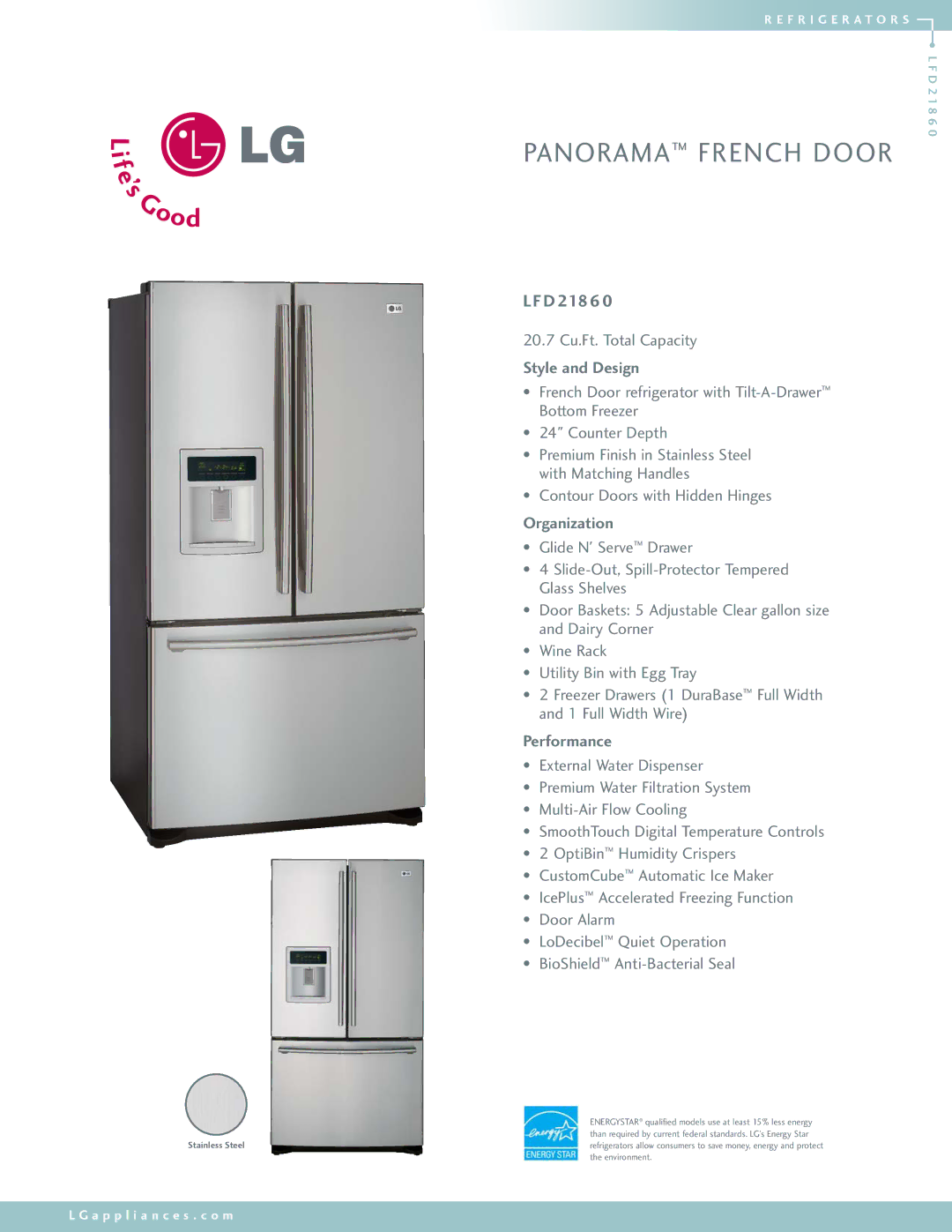

PANORAMA™ FRENCH DOOR

	LFD21860
C A PAC I T Y
Refrigerator	14.7 cu.ft.
Freezer	6.0 cu.ft.
Total	20.7 cu.ft.
F E AT U R E S
Freezer Door Type	Tilt-A-Drawer™
External Water Dispenser
Water Filtration System
Energy Star
Multi-Air Flow Cooling
Digital Temperature Controls	SmoothTouch External LED
Digital Temperature Sensors	5
LoDecibel™ Operation
Door Alarm
R E F R I G E RATO R
No. of Shelves	4 split
Slide-Out Shelves	4
Cantilevered Shelves
Shelf Construction	Spill Protector Tempered Glass
Crisper Bins	2 OptiBin™ Crispers
Glide N' Serve™ Drawer
Utility Bin	2 Piece Bin (with cover)
Egg Tray
Wine Rack
Refrigerator Light	2 x 60W
REFRIGERATOR DOOR
No. of Shelves / Bin	5 Adjustable
Dairy Corner
FREEZER
Drawers	1 Full Width Wire Basket
DuraBase™ Solid Drawer Base
Divider
IcePlus™
CustomCube™ Ice Maker
Ice Bin
Freezer Light	40W
MATERIALS/FINISHES/STYLE
Foam Door Insulation	Cyclo Pentane (No CFC, No HCFC)
BioShield™ Anti-Bacterial Door Seal
Contour Door
Hidden Hinges
Toe Grille
Surface	Stainless Steel
Back	Flush & Metal cover
	over mechanical parts
Available Colors	Stainless Steel (ST)
Handles	Stainless Steel
DIMENSIONS/CLEARANCES/WEIGHT
Depth with Handles	30"
Depth without Handles	27 1/2"
Depth without Door	23 5/8"
Depth (Total with Door Open)	42 1/4"
Height to Top of Case	68 3/8"
Height to Top of Door Hinge	69 3/4"
Width	35 3/4"
Width (Door Open 90° with Handle)	44 1/4"
Width (Door Open 90° without Handle)	39 1/4"
Door Edge Clearance with Handle	4 1/2"
Door Edge Clearance without Handle	1 3/4"
Installation Clearance	Sides 1/8", Top 1", Back 1"
Weight (lbs)	278
Carton Dimensions (WxHxD)	38" x 73"x 33"
UPC CODE
Stainless Steel (ST)	048231 781527
WARRANTY
	1 Year Parts and Labor
	7 Years on the Sealed System

All trademarks are property of their respective owners.

Design and specifications are subject to change without notice.

Printed in May 2006 SS-LFD21860
