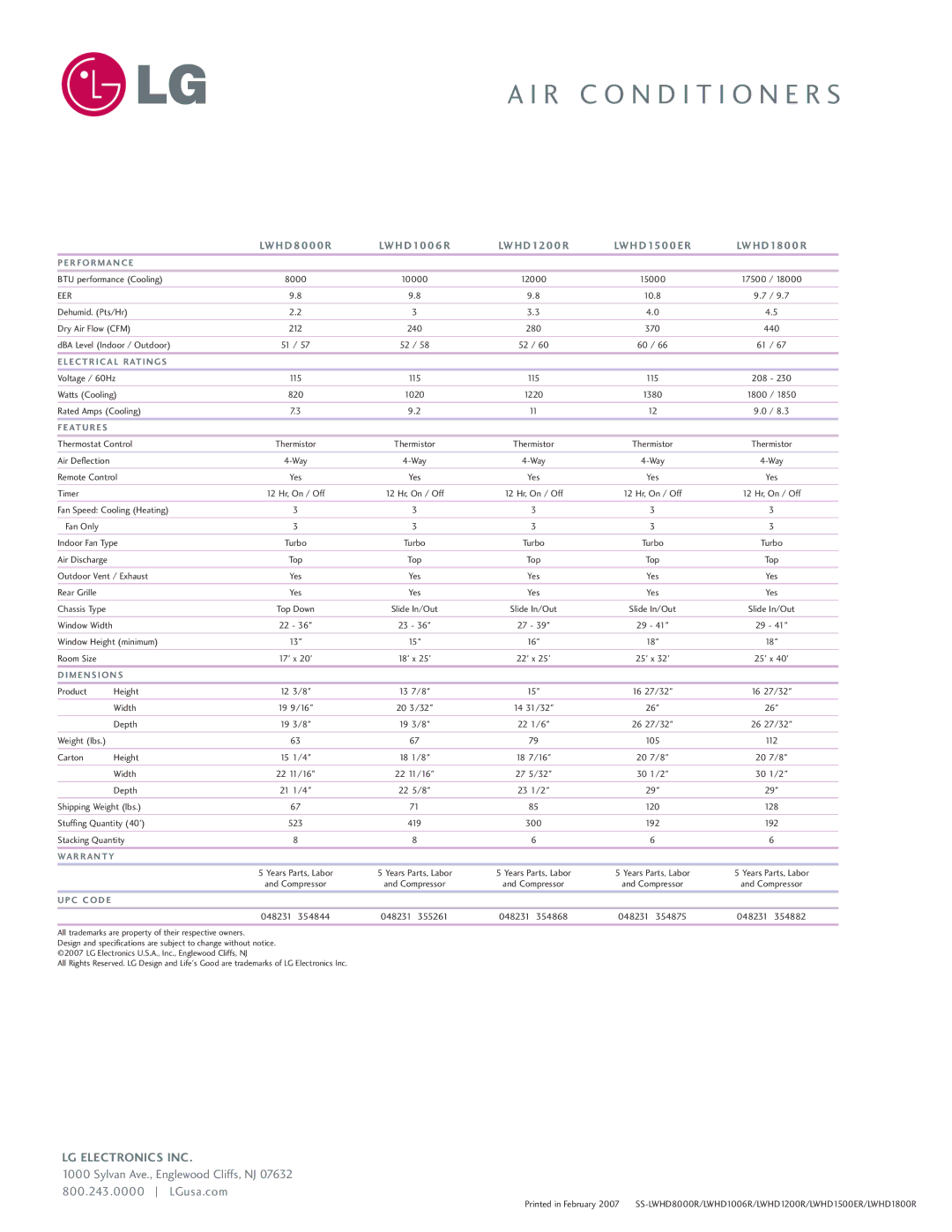

A I R C O N D I T I O N E R S





LWHD8000R

LWHD1006R

LWHD1200R

LWHD1500ER

LWHD1800R

P E R F O R M A N C E

































BTU performance (Cooling)

8000

10000

12000

15000

17500 / 18000















EER



9.8

9.8

9.8

10.8

9.7 / 9.7















Dehumid. (Pts/Hr)

2.2

3



3.3

4.0

4.5













Dry Air Flow (CFM)

212

240

280

370

440













dBA Level (Indoor / Outdoor)

51 / 57

52 / 58

52 / 60

60 / 66

61 / 67























ELECTRICAL RATINGS

































Voltage / 60Hz

115

115

115

115

208 - 230

Watts (Cooling)

820

1020

1220

1380

1800 / 1850

Rated Amps (Cooling)

7.3

9.2

11

12

9.0 / 8.3

FEATURES























Thermostat Control

Thermistor

Thermistor

Thermistor

Thermistor

Thermistor















Air Deflection



4-Way

4-Way

4-Way

4-Way

4-Way













Remote Control

Yes

Yes

Yes

Yes

Yes















Timer



12 Hr, On / Off

12 Hr, On / Off

12 Hr, On / Off

12 Hr, On / Off

12 Hr, On / Off























Fan Speed: Cooling (Heating)



3

3





3



3



3

Fan Only





3

3





3



3



3













Indoor Fan Type

Turbo

Turbo

Turbo

Turbo

Turbo















Air Discharge



Top

Top

Top

Top

Top













Outdoor Vent / Exhaust

Yes

Yes

Yes

Yes

Yes















Rear Grille



Yes

Yes

Yes

Yes

Yes















Chassis Type



Top Down

Slide In/Out

Slide In/Out

Slide In/Out

Slide In/Out















Window Width



22 - 36"

23 - 36"

27 - 39"

29 - 41"

29 - 41"

Window Height (minimum)

13"

15"

16"

18"

18"

Room Size



17' x 20'

18' x 25'

22' x 25'

25' x 32'

25' x 40'

DIMENSIONS





















Product

Height

12 3/8"

13 7/8"

15"

16 27/32"

16 27/32"

















Width

19 9/16"

20 3/32"

14 31/32"

26"

26"

















Depth

19 3/8"

19 3/8"

22 1/6"

26 27/32"

26 27/32"















Weight (lbs.)



63

67

79

105

112















Carton

Height

15 1/4"

18 1/8"

18 7/16"

20 7/8"

20 7/8"



Width

22 11/16"

22 11/16"

27 5/32"

30 1/2"

30 1/2"

















Depth

21 1/4"

22 5/8"

23 1/2"

29"

29"













Shipping Weight (lbs.)

67

71

85

120

128













Stuffing Quantity (40')

523

419

300

192

192























Stacking Quantity



8

8





6



6



6























WARRANTY







































5 Years Parts, Labor

5 Years Parts, Labor

5 Years Parts, Labor

5 Years Parts, Labor

5 Years Parts, Labor





and Compressor

and Compressor

and Compressor

and Compressor

and Compressor

UPC CODE



























048231

354844

048231

355261

048231

354868

048231

354875

048231

354882

All trademarks are property of their respective owners.

Design and specifications are subject to change without notice. ©2007 LG Electronics U.S.A., Inc., Englewood Cliffs, NJ

All Rights Reserved. LG Design and Life's Good are trademarks of LG Electronics Inc.

LG ELECTRONICS INC.

1000 Sylvan Ave., Englewood Cliffs, NJ 07632

800.243.0000

LGusa.com

Printed in February 2007 SS-LWHD8000R/LWHD1006R/LWHD1200R/LWHD1500ER/LWHD1800R

Page 2
Image 2

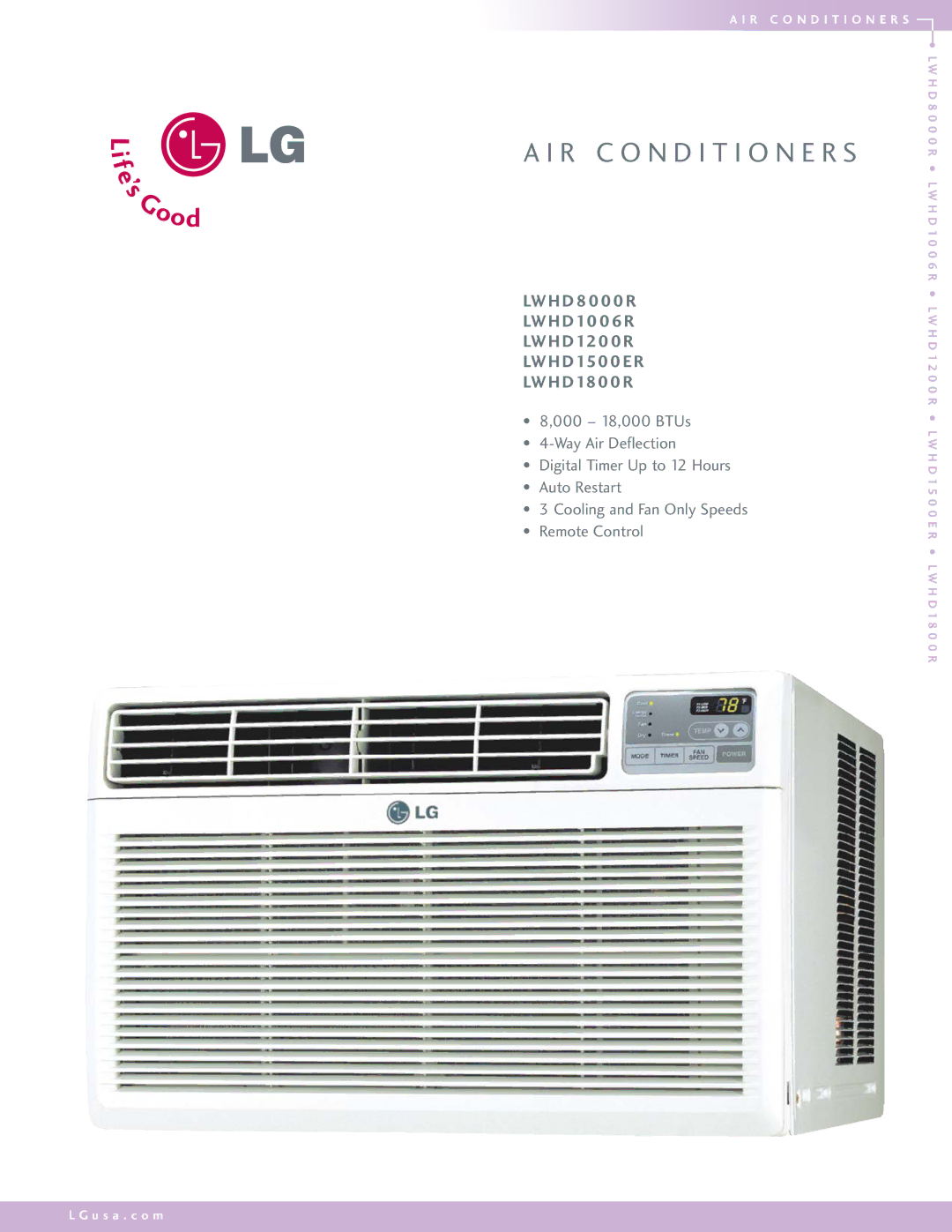

LG Electronics manual LWHD8000R LWHD1006R LWHD1200R LWHD1500ER LWHD1800R

LWHD1006R, LWHD1800R, LWHD1500ER specifications

LG Electronics has established itself as a leader in innovative home appliances, and its lineup of portable air conditioners is no exception. Among its range, the LWHD1006R, LWHD1500ER, and LWHD1800R models stand out for their performance and advanced features.

The LWHD1006R is designed for smaller rooms up to 350 square feet, making it an ideal choice for bedrooms or offices. This 10,000 BTU unit provides cooling power without consuming excessive energy, thanks to its energy-saving mode. Notably, it features a two-way air directional control that helps distribute cool air evenly throughout the space. The unit also incorporates a dehumidification mode, effectively removing up to 2.5 pints of moisture per hour, which can be particularly beneficial in humid climates.

Moving up in capacity, the LWHD1500ER boasts 14,000 BTUs, designed to cool spaces of approximately 700 square feet. One of its standout features is the dual motor system that enhances both cooling and dehumidification performance. This model also includes a 24-hour programmable timer, allowing users to set it to turn on or off according to their schedule, which further supports energy efficiency. With its sleek design and easy-to-use remote control, the LWHD1500ER is user-friendly and convenient.

Finally, the LWHD1800R is the most powerful of the trio, rated at 18,000 BTUs, making it suitable for larger areas up to 1,000 square feet. It features a robust cooling system that quickly brings down temperatures while maintaining a whisper-quiet operation, ensuring a peaceful environment. This model also offers advanced features such as an energy-saver mode, an auto restart function, and a filter alert to remind users when it is time to clean or replace the air filter, promoting optimized performance.

All three models leverage LG's innovative designs that prioritize energy efficiency and user comfort. They come equipped with an easy-to-install window mounting kit, ensuring a straightforward setup process. Additionally, they all highlight an intuitive user interface with remote control functions, making temperature adjustments seamless.

In conclusion, LG's LWHD1006R, LWHD1500ER, and LWHD1800R portable air conditioners provide exceptional cooling solutions suited for various room sizes and preferences. With energy-efficient technologies and customizable features, these models embody LG's commitment to enhancing indoor comfort while minimizing environmental impact.
