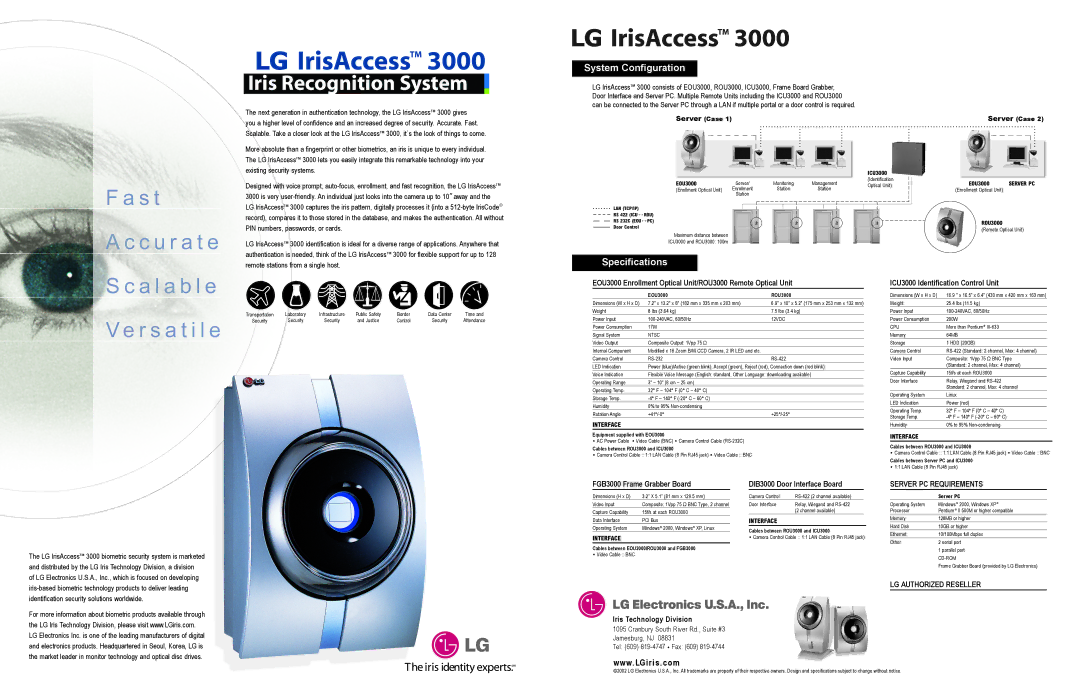

System Configuration
The next generation in authentication technology, the LG IrisAccess™ 3000 gives you a higher level of confidence and an increased degree of security. Accurate. Fast. Scalable. Take a closer look at the LG IrisAccess™ 3000, it’s the look of things to come.
More absolute than a fingerprint or other biometrics, an iris is unique to every individual. The LG IrisAccess™ 3000 lets you easily integrate this remarkable technology into your existing security systems.
Designed with voice prompt,
LG IrisAccess™ 3000 identification is ideal for a diverse range of applications. Anywhere that authentication is needed, think of the LG IrisAccess™ 3000 for flexible support for up to 128 remote stations from a single host.
LG IrisAccess™ 3000 consists of EOU3000, ROU3000, ICU3000, Frame Board Grabber, Door Interface and Server PC. Multiple Remote Units including the ICU3000 and ROU3000 can be connected to the Server PC through a LAN if multiple portal or a door control is required.
Server (Case 1)
EOU3000 | Server/ | Monitoring | Management |
(Enollment Optical Unit) | Enrollment | Station | Station |
| Station |
|
|
LAN (TCP/IP)
RS 422 (ICU ↔ROU)
RS 232C (EOU ↔PC)
Door Control
Maximum distance between
ICU3000 and ROU3000: 100m
Specifications
Server (Case 2)
ICU3000
(Identification | EOU3000 | SERVER PC | |
Optical Unit) | |||
(Enrollment Optical Unit) |
| ||
|
|
ROU3000
(Remote Optical Unit)
Transportation | Laboratory | Infrastructure | Public Safety | Border | Data Center | Time and |
Security | Security | Security | and Justice | Control | Security | Attendance |
EOU3000 Enrollment Optical Unit/ROU3000 Remote Optical Unit
| EOU3000 | ROU3000 |
Dimensions (W x H x D) | 7.2" x 13.2" x 8" (182 mm x 335 mm x 203 mm) | 6.9" x 10" x 5.2" (175 mm x 253 mm x 132 mm) |
Weight | 8 lbs (3.64 kg) | 7.5 lbs (3.4 kg) |
Power Input | 12VDC | |
Power Consumption | 17W |
|
Signal System | NTSC |
|
Video Output | Composite Output: 1Vpp 75 Ω |
|
Internal Component | Modified x 16 Zoom B/W CCD Camera, 2 IR LED and etc. |
|
Camera Control | ||
LED Indication | Power (blue)/Active (green blink), Accept (green), Reject (red), Connection down (red blink) | |
Voice Indication | Flexible Voice Message (English: standard, Other Language: downloading available) | |
Operating Range | 3" – 10" (8 cm – 25 cm) |
|
Operating Temp. | 32º F – 104º F (0º C – 40º C) |
|
Storage Temp. |
| |
Humidity | 0% to 95% |
|
Rotation Angle | ||
INTERFACE
Equipment supplied with EOU3000
•AC Power Cable • Video Cable (BNC) • Camera Control Cable
Cables between ROU3000 and ICU3000
•Camera Control Cable :: 1:1 LAN Cable (8 Pin RJ45 jack) • Video Cable :: BNC
ICU3000 Identification Control Unit
Dimensions (W x H x D) | 16.9 " x 16.5" x 6.4" (430 mm x 420 mm x 163 mm) |
Weight | 25.4 lbs (11.5 kg) |
Power Input | |
Power Consumption | 200W |
CPU | More than Pentium® |
Memory | 64MB |
Storage | 1 HDD (20GB) |
Camera Control | |
Video Input | Composite: 1Vpp 75 Ω BNC Type |
| (Standard: 2 channel, Max: 4 channel) |
Capture Capability | 15f/s at each ROU3000 |
Door Interface | Relay, Wiegand and |
| Standard: 2 channel, Max: 4 channel |
Operating System | Linux |
LED Indication | Power (red) |
Operating Temp. | 32º F – 104º F (0º C – 40º C) |
Storage Temp. | |
Humidity | 0% to 95% |
INTERFACE
Cables between ROU3000 and ICU3000
•Camera Control Cable :: 1:1 LAN Cable (8 Pin RJ45 jack) • Video Cable :: BNC
Cables between Server PC and ICU3000
•1:1 LAN Cable (8 Pin RJ45 jack)
The LG IrisAccess™ 3000 biometric security system is marketed and distributed by the LG Iris Technology Division, a division
FGB3000 Frame Grabber Board
Dimensions (H x D) | 3.2" X 5.1" (81 mm x 129.5 mm) |
Video Input | Composite: 1Vpp 75 Ω BNC Type, 2 channel |
Capture Capability | 15f/s at each ROU3000 |
Data Interface | PCI Bus |
Operating System | Windows® 2000, Windows® XP, Linux |
INTERFACE
Cables between EOU3000/ROU3000 and FGB3000
•Video Cable :: BNC
DIB3000 Door Interface Board
Camera Control | |
Door Interface | Relay, Wiegand and |
| (2 channel available) |
INTERFACE
Cables between ROU3000 and ICU3000
•Camera Control Cable :: 1:1 LAN Cable (8 Pin RJ45 jack)
SERVER PC REQUIREMENTS
| Server PC |
Operating System | Windows ® 2000, Windows XP ® |
Processor | Pentium ® II 500M or higher compatible |
Memory | 128MB or higher |
Hard Disk | 10GB or higher |
Ethernet | 10/100Mbps full duplex |
Other | 2 serial port |
| 1 parallel port |
| |
| Frame Grabber Board (provided by LG Electronics) |
of LG Electronics U.S.A., Inc., which is focused on developing
For more information about biometric products available through the LG Iris Technology Division, please visit www.LGiris.com. LG Electronics Inc. is one of the leading manufacturers of digital and electronics products. Headquartered in Seoul, Korea, LG is the market leader in monitor technology and optical disc drives.
