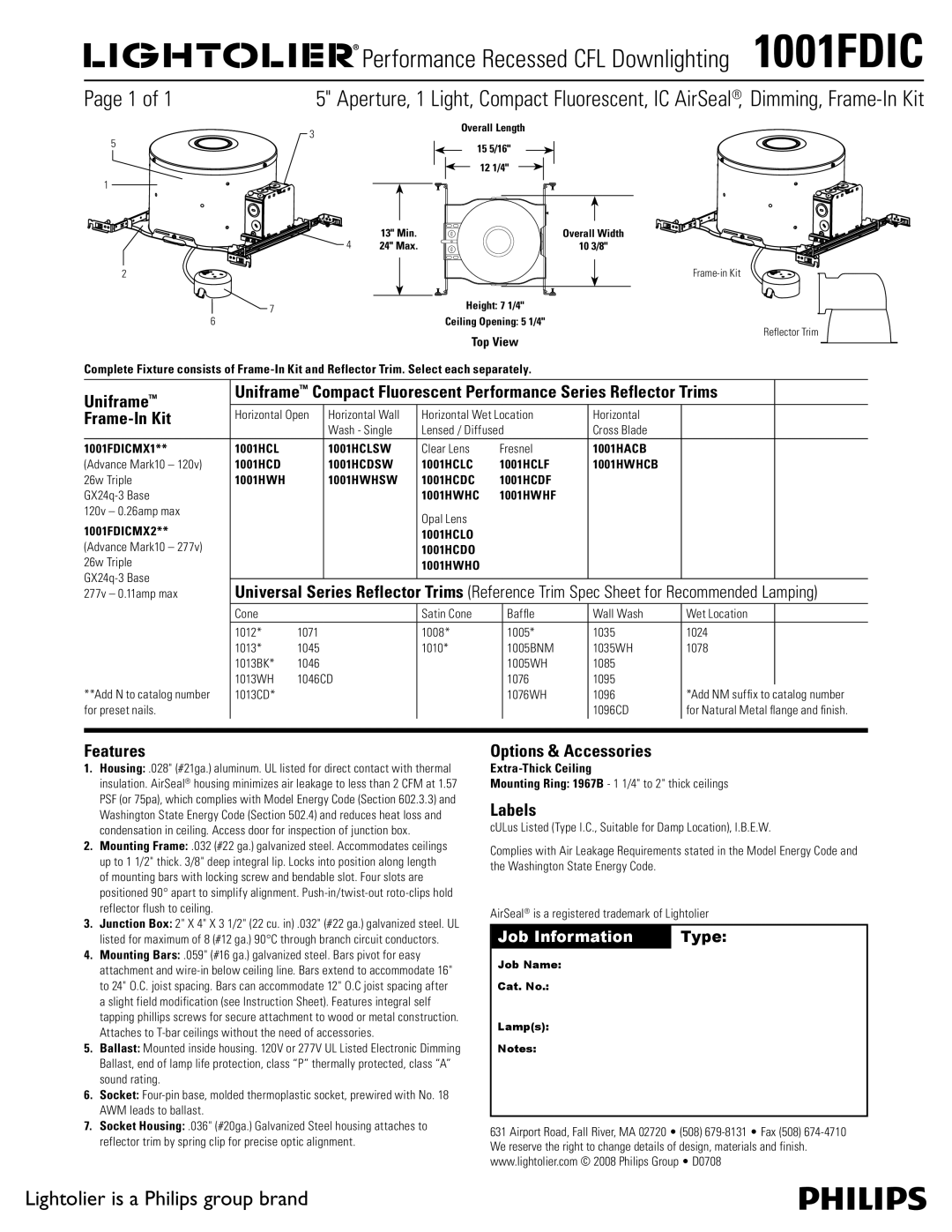

| Performance Recessed CFL Downlighting 1001FDIC |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| |||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| ||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| |||||
Page 1 of 1 |
|
|
|
|
|
|
|
|
|
|
|
| 5" Aperture, 1 Light, Compact Fluorescent, IC AirSeal®, Dimming, |
5
1
3
13" Min.
4 24" Max.
Overall Length 15 5/16"
12 1/4"
Overall Width
10 3/8"
2
7 6
Height: 7 1/4"
Ceiling Opening: 5 1/4"
Top View
Reflector Trim
Complete Fixture consists of
Uniframe™ | Uniframe™ Compact Fluorescent Performance Series Reflector Trims |
|
| |||||||||
|
|
|
|
|
|
|
|
|
|
| ||
| Horizontal Open | Horizontal Wall | Horizontal Wet Location | Horizontal |
|
|
|
| ||||
|
|
| Wash - Single | Lensed / Diffused | Cross Blade |
|
|
|
| |||
1001FDICMX1** | 1001HCL |
| 1001HCLSW | Clear Lens | Fresnel | 1001HACB |
|
|
|
| ||
(Advance Mark10 – 120v) | 1001HCD |
| 1001HCDSW | 1001HCLC | 1001HCLF | 1001HWHCB |
|
|
|
| ||
26w Triple | 1001HWH |
| 1001HWHSW | 1001HCDC | 1001HCDF |
|
|
|
|
| ||
|
|
| 1001HWHC | 1001HWHF |
|
|
|
|
| |||
120v – 0.26amp max |
|
|
| Opal Lens |
|
|
|
|
|
|
| |
1001FDICMX2** |
|
|
|
|
|
|
|
|
|
| ||
|
|
| 1001HCLO |
|
|
|
|
|
|
| ||
(Advance Mark10 – 277v) |
|
|
| 1001HCDO |
|
|
|
|
|
|
| |
26w Triple |
|
|
| 1001HWHO |
|
|
|
|
|
|
| |
|
|
|
|
|
|
|
|
|
|
| ||
Universal Series Reflector Trims (Reference Trim Spec Sheet for Recommended Lamping) | ||||||||||||
277v – 0.11amp max | ||||||||||||
| Cone |
|
| Satin Cone |
| Baffle | Wall Wash |
| Wet Location |
|
| |
| 1012* | 1071 |
| 1008* |
| 1005* | 1035 | 1024 |
|
| ||
| 1013* | 1045 |
| 1010* |
| 1005BNM | 1035WH | 1078 |
|
| ||
| 1013BK* | 1046 |
|
|
| 1005WH | 1085 |
|
|
|
| |
| 1013WH | 1046CD |
|
| 1076 | 1095 |
|
|
|
| ||
**Add N to catalog number | 1013CD* |
|
|
|
| 1076WH | 1096 |
| *Add NM suffix to catalog number |
| ||
for preset nails. |
|
|
|
|
|
| 1096CD |
| for Natural Metal flange and finish. |
| ||
|
|
|
|
|
|
|
|
|
|
|
|
Features
1.Housing: .028" (#21ga.) aluminum. UL listed for direct contact with thermal insulation. AirSeal® housing minimizes air leakage to less than 2 CFM at 1.57 PSF (or 75pa), which complies with Model Energy Code (Section 602.3.3) and Washington State Energy Code (Section 502.4) and reduces heat loss and condensation in ceiling. Access door for inspection of junction box.
2.Mounting Frame: .032 (#22 ga.) galvanized steel. Accommodates ceilings up to 1 1/2" thick. 3/8" deep integral lip. Locks into position along length of mounting bars with locking screw and bendable slot. Four slots are positioned 90° apart to simplify alignment.
3.Junction Box: 2" X 4" X 3 1/2" (22 cu. in) .032" (#22 ga.) galvanized steel. UL listed for maximum of 8 (#12 ga.) 90°C through branch circuit conductors.
4.Mounting Bars: .059" (#16 ga.) galvanized steel. Bars pivot for easy attachment and
5.Ballast: Mounted inside housing. 120V or 277V UL Listed Electronic Dimming Ballast, end of lamp life protection, class “P” thermally protected, class “A” sound rating.
6.Socket:
7.Socket Housing: .036" (#20ga.) Galvanized Steel housing attaches to reflector trim by spring clip for precise optic alignment.
Lightolier is a Philips group brand
Options & Accessories
Mounting Ring: 1967B - 1 1/4" to 2" thick ceilings
Labels
cULus Listed (Type I.C., Suitable for Damp Location), I.B.E.W.
Complies with Air Leakage Requirements stated in the Model Energy Code and the Washington State Energy Code.
AirSeal® is a registered trademark of Lightolier
Job Information | Type: |
|
|
Job Name:
Cat. No.:
Lamp(s):
Notes:
631 Airport Road, Fall River, MA 02720 • (508)
