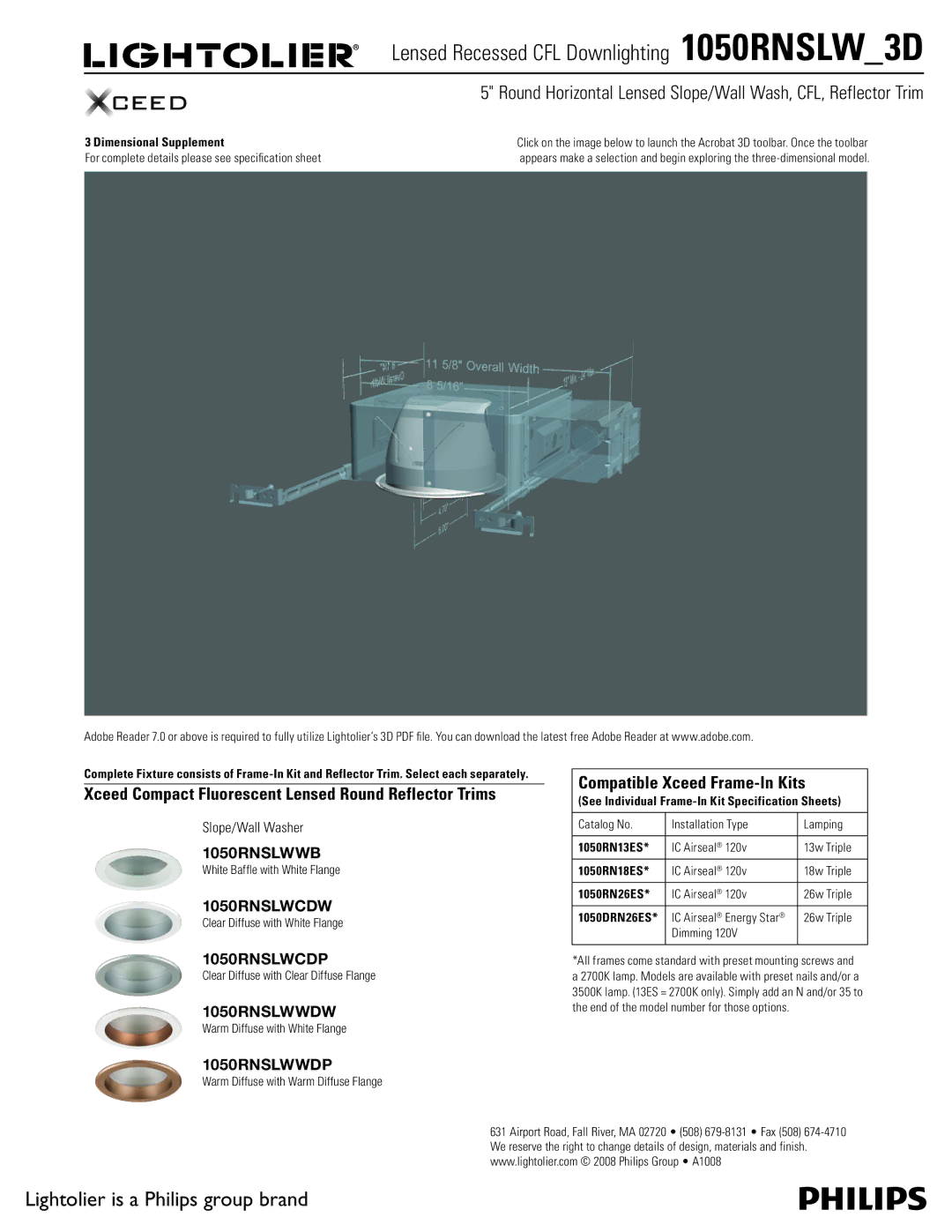

| Lensed Recessed CFL Downlighting 1050RNSLW_3D | |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| ||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| ||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| 5" Round Horizontal Lensed Slope/Wall Wash, CFL, Reflector Trim | |
3 Dimensional Supplement |
|
| Click on the image below to launch the Acrobat 3D toolbar. Once the toolbar | ||||||||||||||||||||
For complete details please see specification sheet |
|
| appears make a selection and begin exploring the | ||||||||||||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Adobe Reader 7.0 or above is required to fully utilize Lightolier’s 3D PDF file. You can download the latest free Adobe Reader at www.adobe.com.
Complete Fixture consists of
Xceed Compact Fluorescent Lensed Round Reflector Trims
Slope/Wall Washer
1050RNSLWWB
White Baffle with White Flange
1050RNSLWCDW
Clear Diffuse with White Flange
1050RNSLWCDP
Clear Diffuse with Clear Diffuse Flange
1050RNSLWWDW
Warm Diffuse with White Flange
1050RNSLWWDP
Warm Diffuse with Warm Diffuse Flange
Compatible Xceed Frame-In Kits
(See Individual
Catalog No. | Installation Type | Lamping |
|
|
|
1050RN13ES* | IC Airseal® 120v | 13w Triple |
|
|
|
1050RN18ES* | IC Airseal® 120v | 18w Triple |
|
|
|
1050RN26ES* | IC Airseal® 120v | 26w Triple |
|
|
|
1050DRN26ES* | IC Airseal® Energy Star® | 26w Triple |
| Dimming 120V |
|
|
|
|
*All frames come standard with preset mounting screws and a 2700K lamp. Models are available with preset nails and/or a 3500K lamp. (13ES = 2700K only). Simply add an N and/or 35 to the end of the model number for those options.
631 Airport Road, Fall River, MA 02720 • (508)
