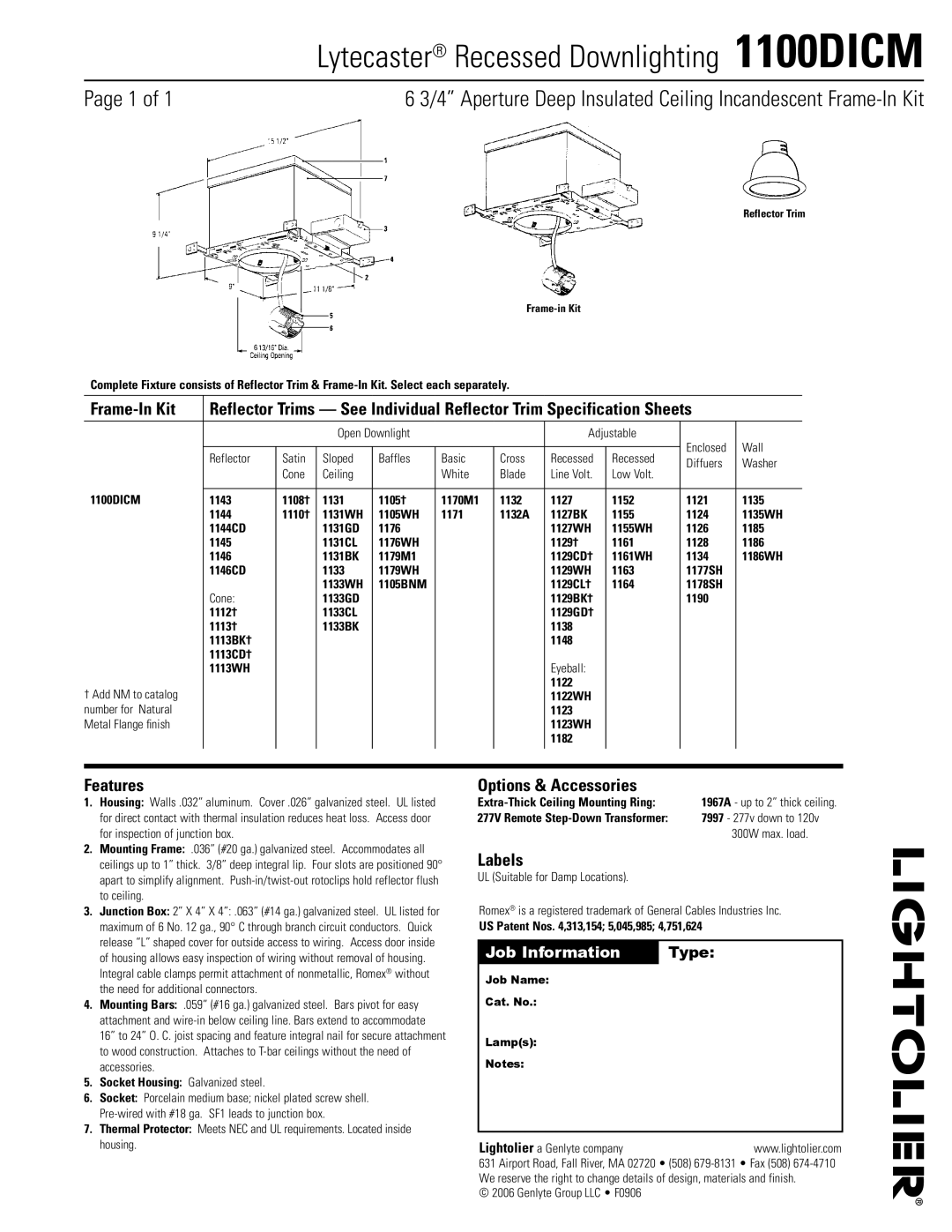

	Lytecaster® Recessed Downlighting  1100DICM
Page  of 1	6 3/4” Aperture Deep Insulated Ceiling Incandescent Frame-In Kit

Reflector Trim

Frame-in Kit

Complete Fixture consists of Reflector Trim & Frame-In Kit. Select each separately.

Frame-In Kit	Reflector Trims — See Individual Reflector Trim Specification Sheets
			Open Downlight				Adjustable
									Enclosed	Wall
	Reflector	Satin	Sloped	Baffles	Basic	Cross	Recessed	Recessed
									Diffuers	Washer
		Cone	Ceiling		White	Blade	Line Volt.	Low Volt.
1100DICM
	1143	1108†	1131	1105†	1170M1	1132	1127	1152	1121	1135
	1144	1110†	1131WH	1105WH	1171	1132A	1127BK	1155	1124	1135WH
	1144CD		1131GD	1176			1127WH	1155WH	1126	1185
	1145		1131CL	1176WH			1129†	1161	1128	1186
	1146		1131BK	1179M1			1129CD†	1161WH	1134	1186WH
	1146CD		1133	1179WH			1129WH	1163	1177SH
			1133WH	1105BNM			1129CL†	1164	1178SH
	Cone:		1133GD				1129BK†		1190
	1112†		1133CL				1129GD†
	1113†		1133BK				1138
	1113BK†						1148
	1113CD†
	1113WH						Eyeball:
† Add NM to catalog							1122
							1122WH
number for Natural							1123
Metal Flange finish							1123WH
							1182

Features

1.Housing: Walls .032” aluminum. Cover .026” galvanized steel. UL listed for direct contact with thermal insulation reduces heat loss. Access door for inspection of junction box.

2.Mounting Frame: .036” (#20 ga.) galvanized steel. Accommodates all ceilings up to 1” thick. 3/8” deep integral lip. Four slots are positioned 90° apart to simplify alignment. Push-in/twist-out rotoclips hold reflector flush to ceiling.

3.Junction Box: 2” X 4” X 4”: .063” (#14 ga.) galvanized steel. UL listed for maximum of 6 No. 12 ga., 90° C through branch circuit conductors. Quick release “L” shaped cover for outside access to wiring. Access door inside of housing allows easy inspection of wiring without removal of housing. Integral cable clamps permit attachment of nonmetallic, Romex® without the need for additional connectors.

4.Mounting Bars: .059” (#16 ga.) galvanized steel. Bars pivot for easy attachment and wire-in below ceiling line. Bars extend to accommodate 16” to 24” O. C. joist spacing and feature integral nail for secure attachment to wood construction. Attaches to T-bar ceilings without the need of accessories.

5.Socket Housing: Galvanized steel.

6.Socket: Porcelain medium base; nickel plated screw shell. Pre-wired with #18 ga. SF1 leads to junction box.

7.Thermal Protector: Meets NEC and UL requirements. Located inside housing.

Options & Accessories

Extra-Thick Ceiling Mounting Ring:	1967A - up to 2” thick ceiling.
277V Remote Step-Down Transformer:	7997 - 277v down to 120v
	300W max. load.

Labels

UL (Suitable for Damp Locations).

Romex® is a registered trademark of General Cables Industries Inc.

US Patent Nos. 4,313,154; 5,045,985; 4,751,624
