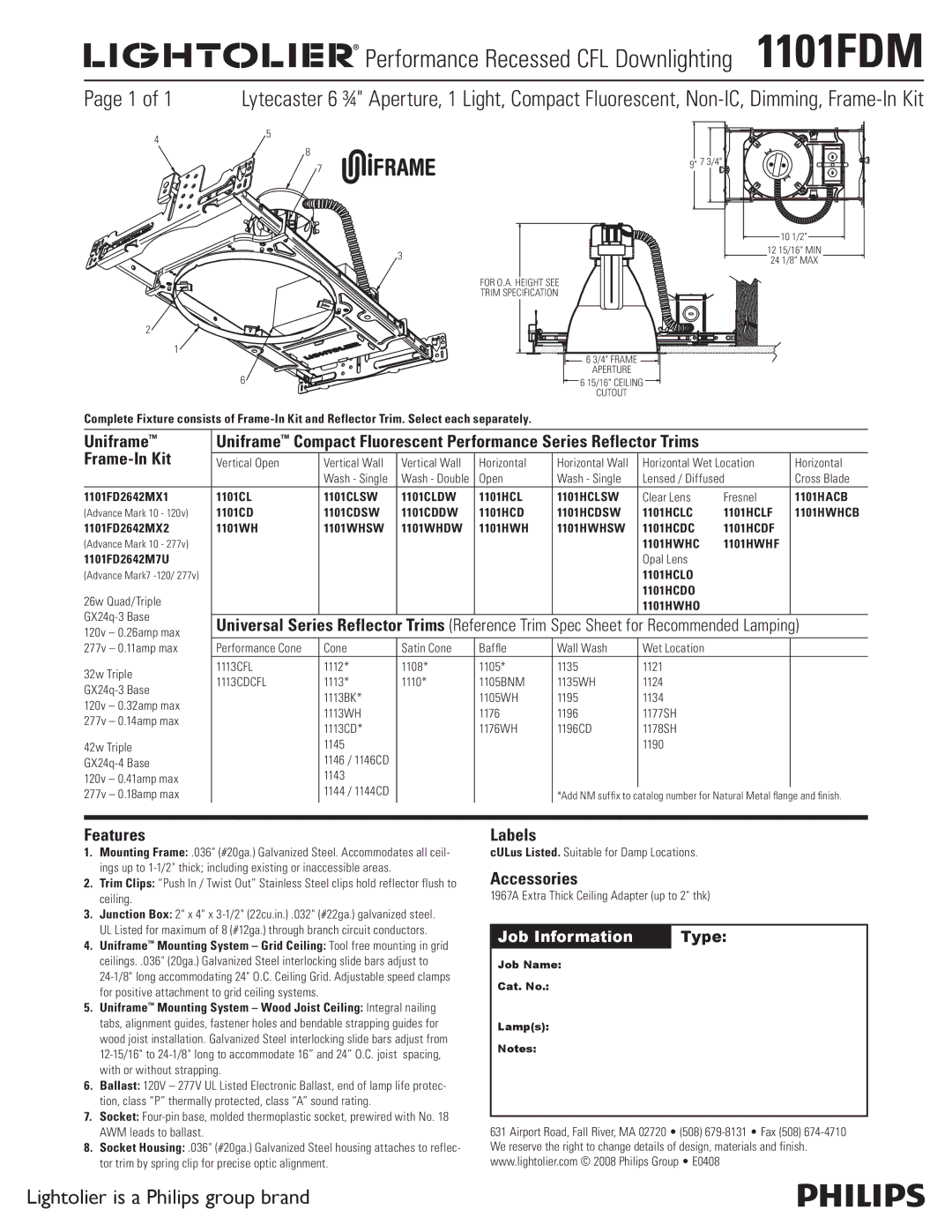

Performance Recessed CFL Downlighting  1101FDM































































































































































Page 1 of 1







Lytecaster 6 ¾" Aperture, 1 Light, Compact Fluorescent, Non-IC, Dimming, Frame-In Kit

4 5

8

7

3

FOR O.A. HEIGHT SEE

TRIM SPECIFICATION

9" 7 3/4"

10 1/2"

12 15/16" MIN

24 1/8" MAX

2

1















6 3/4" FRAME











6











APERTURE





















6 15/16" CEILING



















CUTOUT









Complete Fixture consists of Frame-In Kit and Reflector Trim. Select each separately.







































Uniframe

UniframeCompact Fluorescent Performance Series Reflector Trims





Frame-In Kit





















Vertical Open

Vertical Wall

Vertical Wall

Horizontal



Horizontal Wall

Horizontal Wet Location

Horizontal





Wash - Single

Wash - Double

Open



Wash - Single

Lensed / Diffused

Cross Blade

1101FD2642MX1

1101CL

1101CLSW

1101CLDW

1101HCL



1101HCLSW

Clear Lens

Fresnel

1101HACB

(Advance Mark 10 - 120v)

1101CD

1101CDSW

1101CDDW

1101HCD



1101HCDSW

1101HCLC

1101HCLF

1101HWHCB

1101FD2642MX2

1101WH

1101WHSW

1101WHDW

1101HWH



1101HWHSW

1101HCDC

1101HCDF



(Advance Mark 10 - 277v)















1101HWHC

1101HWHF



1101FD2642M7U















Opal Lens





(Advance Mark7 -120/ 277v)















1101HCLO





26w Quad/Triple















1101HCDO



















1101HWHO





GX24q-3 Base



















Universal Series Reflector Trims (Reference Trim Spec Sheet for Recommended Lamping)

120v – 0.26amp max























277v – 0.11amp max

Performance Cone

Cone

Satin Cone

Baffle



Wall Wash

Wet Location





32w Triple

1113CFL

1112*

1108*

1105*

1135

1121





1113CDCFL

1113*

1110*

1105BNM



1135WH

1124





GX24q-3 Base









1113BK*



1105WH

1195

1134





120v – 0.32amp max











1113WH



1176

1196

1177SH





277v – 0.14amp max











1113CD*



1176WH



1196CD

1178SH

















42w Triple



1145











1190





GX24q-4 Base



1146 / 1146CD



















120v – 0.41amp max



1143



















277v – 0.18amp max



1144 / 1144CD







*Add NM suffix to catalog number for Natural Metal flange and finish.

























Features

1.Mounting Frame: .036" (#20ga.) Galvanized Steel. Accommodates all ceil- ings up to 1-1/2" thick; including existing or inaccessible areas.

2.Trim Clips: “Push In / Twist Out” Stainless Steel clips hold reflector flush to ceiling.

3.Junction Box: 2" x 4" x 3-1/2" (22cu.in.) .032" (#22ga.) galvanized steel. UL Listed for maximum of 8 (#12ga.) through branch circuit conductors.

4.UniframeMounting System – Grid Ceiling: Tool free mounting in grid ceilings. .036" (20ga.) Galvanized Steel interlocking slide bars adjust to

241/8" long accommodating 24" O.C. Ceiling Grid. Adjustable speed clamps for positive attachment to grid ceiling systems.

5.UniframeMounting System – Wood Joist Ceiling: Integral nailing tabs, alignment guides, fastener holes and bendable strapping guides for wood joist installation. Galvanized Steel interlocking slide bars adjust from 12-15/16" to 24-1/8" long to accommodate 16” and 24” O.C. joist spacing, with or without strapping.

6.Ballast: 120V – 277V UL Listed Electronic Ballast, end of lamp life protec- tion, class “P” thermally protected, class “A” sound rating.

7.Socket: Four-pin base, molded thermoplastic socket, prewired with No. 18

AWM leads to ballast.

8.Socket Housing: .036" (#20ga.) Galvanized Steel housing attaches to reflec- tor trim by spring clip for precise optic alignment.

Lightolier is a Philips group brand

Labels

cULus Listed. Suitable for Damp Locations.

Accessories

1967A Extra Thick Ceiling Adapter (up to 2" thk)

Job Information

Type:





Job Name:

Cat. No.:

Lamp(s):

Notes:

631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710 We reserve the right to change details of design, materials and finish. www.lightolier.com © 2008 Philips Group • E0408

Page 1
