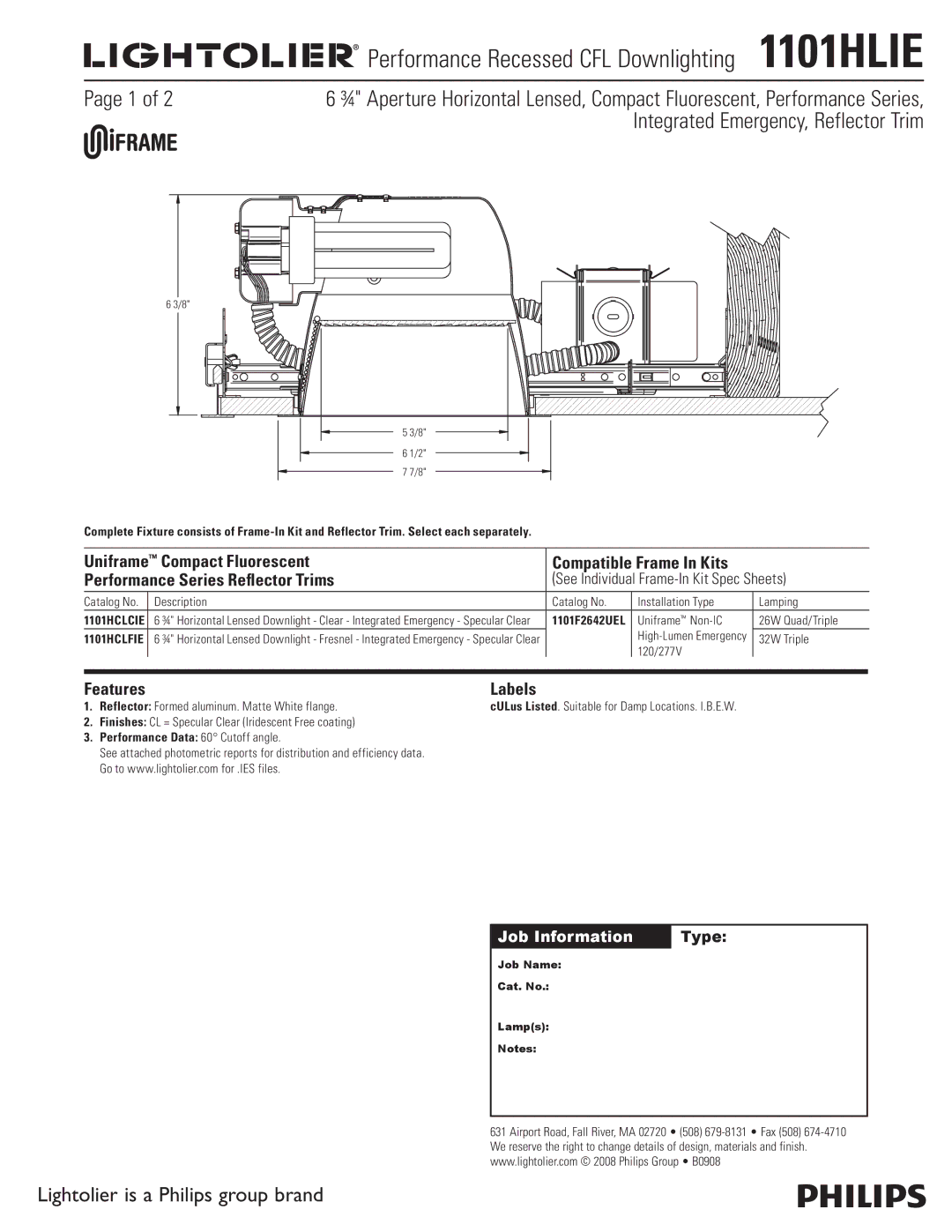

| Performance Recessed CFL Downlighting 1101HLIE |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| |||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| ||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| |||||
Page 1 of 2 |
|
|
|
|
|
|
|
|
|
|
|
|
| 6 ¾" Aperture Horizontal Lensed, Compact Fluorescent, Performance Series, | |||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| Integrated Emergency, Reflector Trim |
6 3/8"
5 3/8"
6 1/2"
7 7/8"
Complete Fixture consists of
Uniframe™ Compact Fluorescent | Compatible Frame In Kits |
|
| |||
Performance Series Reflector Trims | (See Individual | |||||
Catalog No. | Description | Catalog No. | Installation Type | Lamping | ||
1101HCLCIE | 6 | ¾" Horizontal Lensed Downlight - Clear - Integrated Emergency - Specular Clear | 1101F2642UEL | Uniframe™ | 26W | Quad/Triple |
1101HCLFIE | 6 | ¾" Horizontal Lensed Downlight - Fresnel - Integrated Emergency - Specular Clear |
|
| 32W | Triple |
|
|
|
| 120/277V |
|
|
Features |
| Labels |
|
|
|
|
1.Reflector: Formed aluminum. Matte White flange.
2.Finishes: CL = Specular Clear (Iridescent Free coating)
3.Performance Data: 60° Cutoff angle.

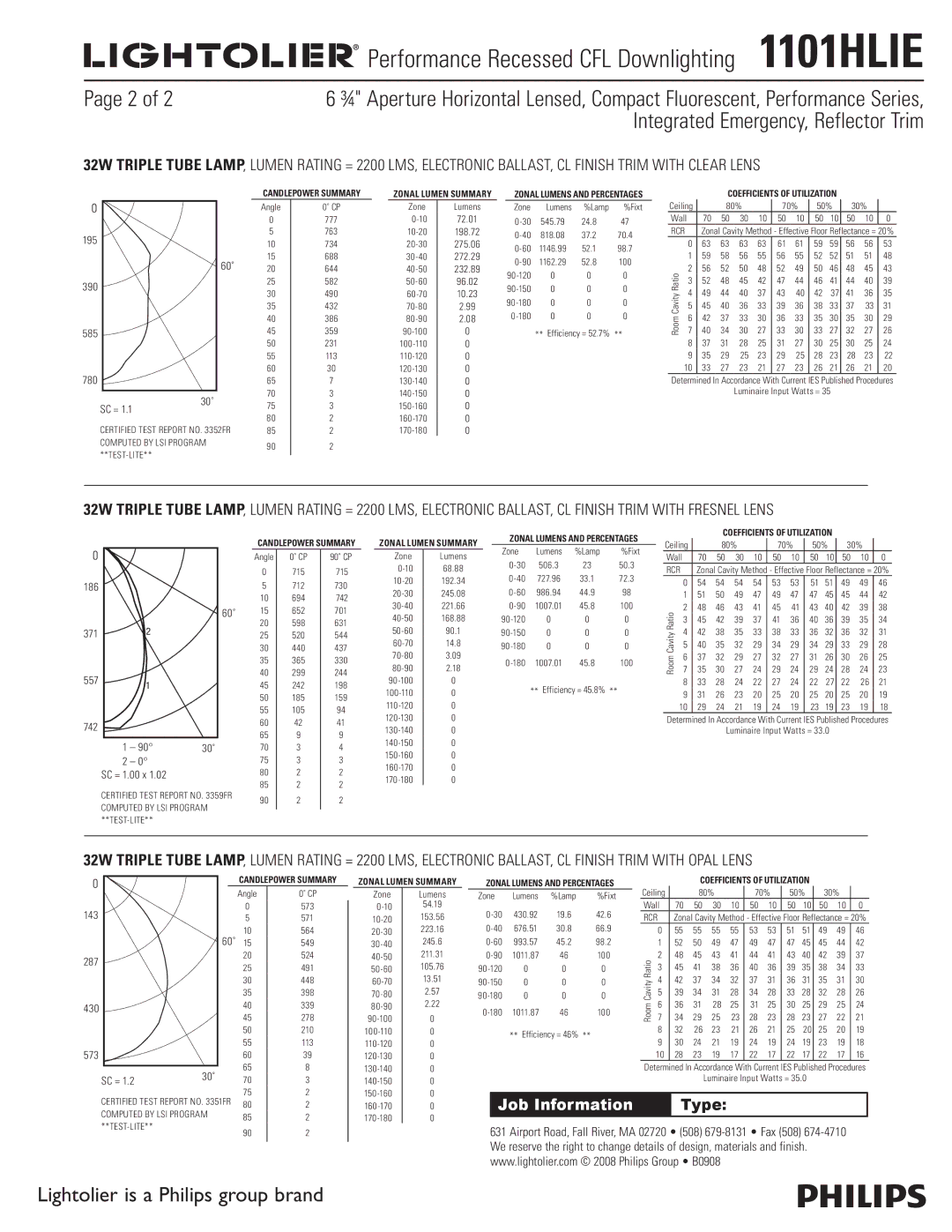

See attached photometric reports for distribution and efficiency data.
Go to www.lightolier.com for .IES files.
cULus Listed. Suitable for Damp Locations. I.B.E.W.
Job Information | Type: |
|
|
Job Name:
Cat. No.:
Lamp(s):
Notes:
631 Airport Road, Fall River, MA 02720 • (508)
