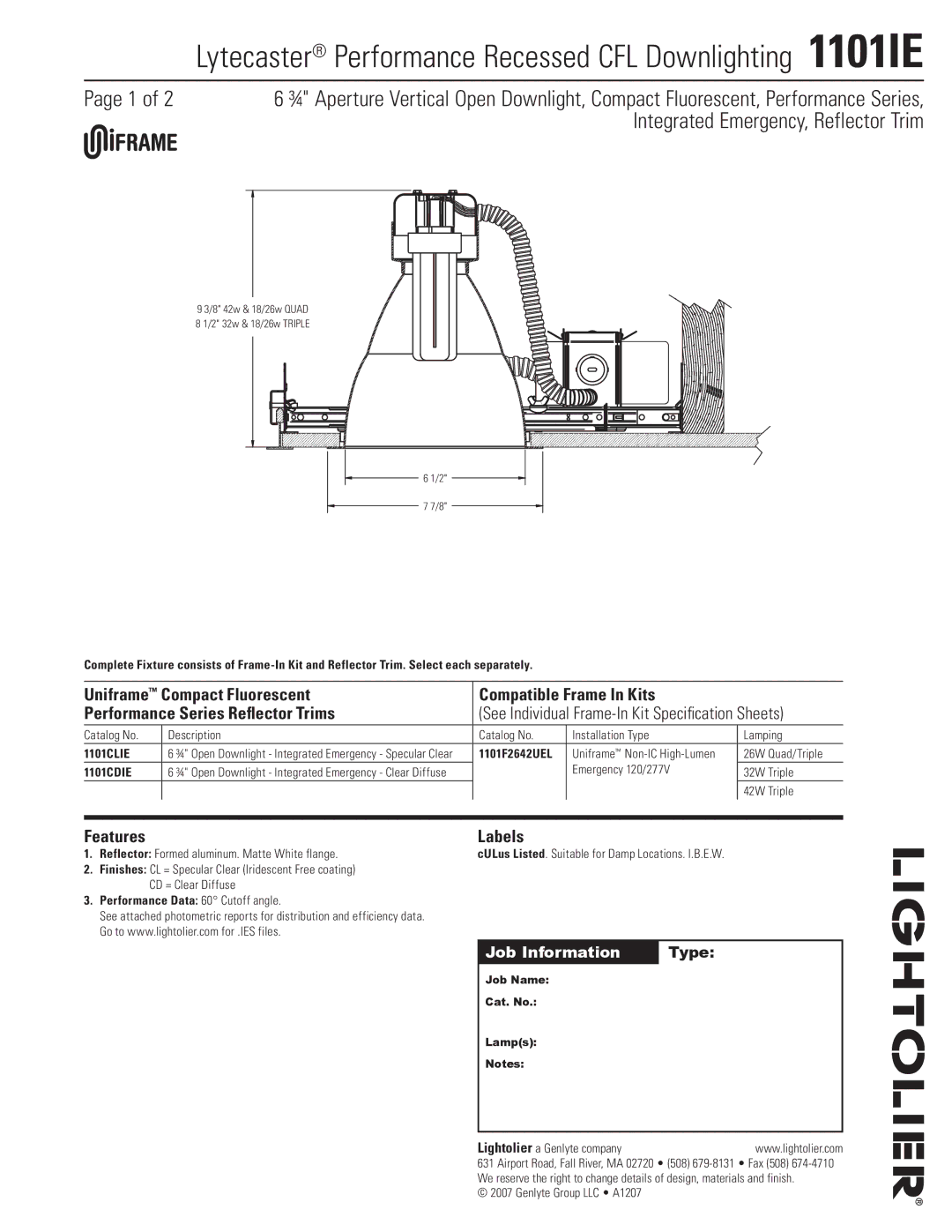

	Lytecaster® Performance Recessed CFL Downlighting  1101IE
Page of 2	6 ¾" Aperture Vertical Open Downlight, Compact Fluorescent, Performance Series,
		Integrated Emergency, Reflector Trim

9 3/8" 42w & 18/26w QUAD

8 1/2" 32w & 18/26w TRIPLE

6 1/2"

7 7/8"

Complete Fixture consists of Frame-In Kit and Reflector Trim. Select each separately.

Uniframe™ Compact Fluorescent			Compatible Frame In Kits
Performance Series Reflector Trims			(See Individual Frame-In Kit Specification Sheets)
Catalog No.	Description		Catalog No.	Installation Type	Lamping
1101CLIE	6	¾" Open Downlight - Integrated Emergency - Specular Clear	1101F2642UEL	Uniframe™ Non-IC High-Lumen	26W	Quad/Triple
1101CDIE	6	¾" Open Downlight - Integrated Emergency - Clear Diffuse		Emergency 120/277V	32W	Triple
					42W Triple

Features		Labels
1.	Reflector: Formed aluminum. Matte White flange.	cULus Listed. Suitable for Damp Locations. I.B.E.W.
2.	Finishes: CL = Specular Clear (Iridescent Free coating)
	CD = Clear Diffuse
3.	Performance Data: 60° Cutoff angle.
	See attached photometric reports for distribution and efficiency data.
	Go to www.lightolier.com for .IES files.
		Job Information	Type:

Job Name:

Cat. No.:

Lamp(s):

Notes:

Lightolier a Genlyte companywww.lightolier.com 631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710 We reserve the right to change details of design, materials and finish.

© 2007 Genlyte Group LLC • A1207
