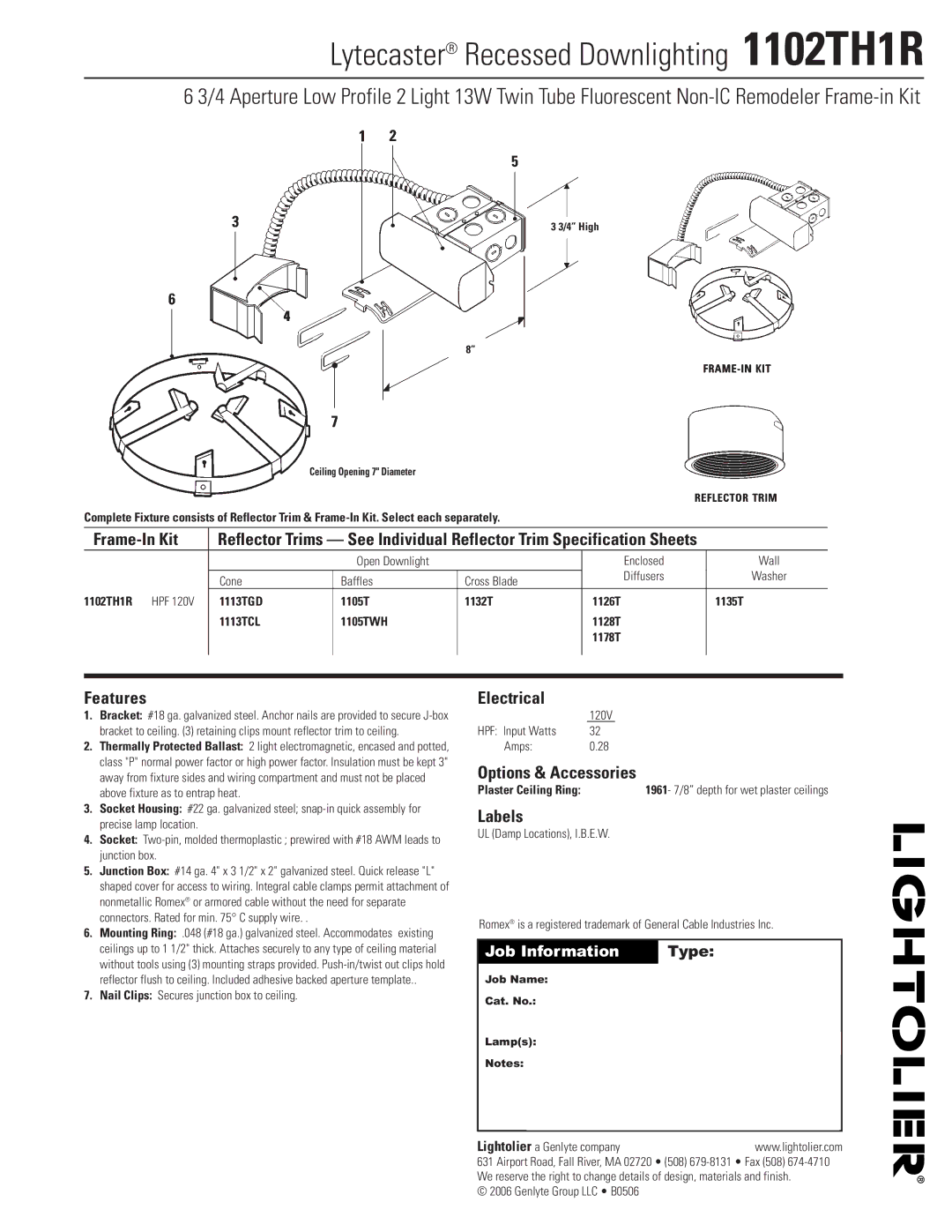

Lightolier specifications Lytecaster Recessed Downlighting 1102TH1R

Lytecaster® Recessed Downlighting 1102TH1R

6 3/4 Aperture Low Profile 2 Light 13W Twin Tube Fluorescent Non-IC Remodeler Frame-in Kit

3 3/4” High

8”

Ceiling Opening 7" Diameter

Complete Fixture consists of Reflector Trim & Frame-In Kit. Select each separately.

Frame-In Kit	Reflector Trims — See Individual Reflector Trim Specification Sheets
		Open Downlight		Enclosed	Wall
	Cone	Baffles	Cross Blade	Diffusers	Washer
1102TH1R HPF 120V	1113TGD	1105T	1132T	1126T	1135T
	1113TCL	1105TWH		1128T
				1178T

Features

1.Bracket: #18 ga. galvanized steel. Anchor nails are provided to secure J-box bracket to ceiling. (3) retaining clips mount reflector trim to ceiling.

2.Thermally Protected Ballast: 2 light electromagnetic, encased and potted, class "P" normal power factor or high power factor. Insulation must be kept 3" away from fixture sides and wiring compartment and must not be placed above fixture as to entrap heat.

3.Socket Housing: #22 ga. galvanized steel; snap-in quick assembly for precise lamp location.

4.Socket: Two-pin, molded thermoplastic ; prewired with #18 AWM leads to junction box.

5.Junction Box: #14 ga. 4" x 3 1/2" x 2" galvanized steel. Quick release "L" shaped cover for access to wiring. Integral cable clamps permit attachment of nonmetallic Romex® or armored cable without the need for separate connectors. Rated for min. 75° C supply wire. .

6.Mounting Ring: .048 (#18 ga.) galvanized steel. Accommodates existing ceilings up to 1 1/2" thick. Attaches securely to any type of ceiling material without tools using (3) mounting straps provided. Push-in/twist out clips hold reflector flush to ceiling. Included adhesive backed aperture template..

7.Nail Clips: Secures junction box to ceiling.

Electrical

	120V
HPF: Input Watts	32
Amps:	0.28

Options & Accessories

Plaster Ceiling Ring:1961- 7/8” depth for wet plaster ceilings

Labels

UL (Damp Locations), I.B.E.W.

Romex® is a registered trademark of General Cable Industries Inc.
Job Information	Type:

Job Name:

Cat. No.:

Lamp(s):

Notes:

Lightolier a Genlyte companywww.lightolier.com 631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710 We reserve the right to change details of design, materials and finish.

© 2006 Genlyte Group LLC • B0506
