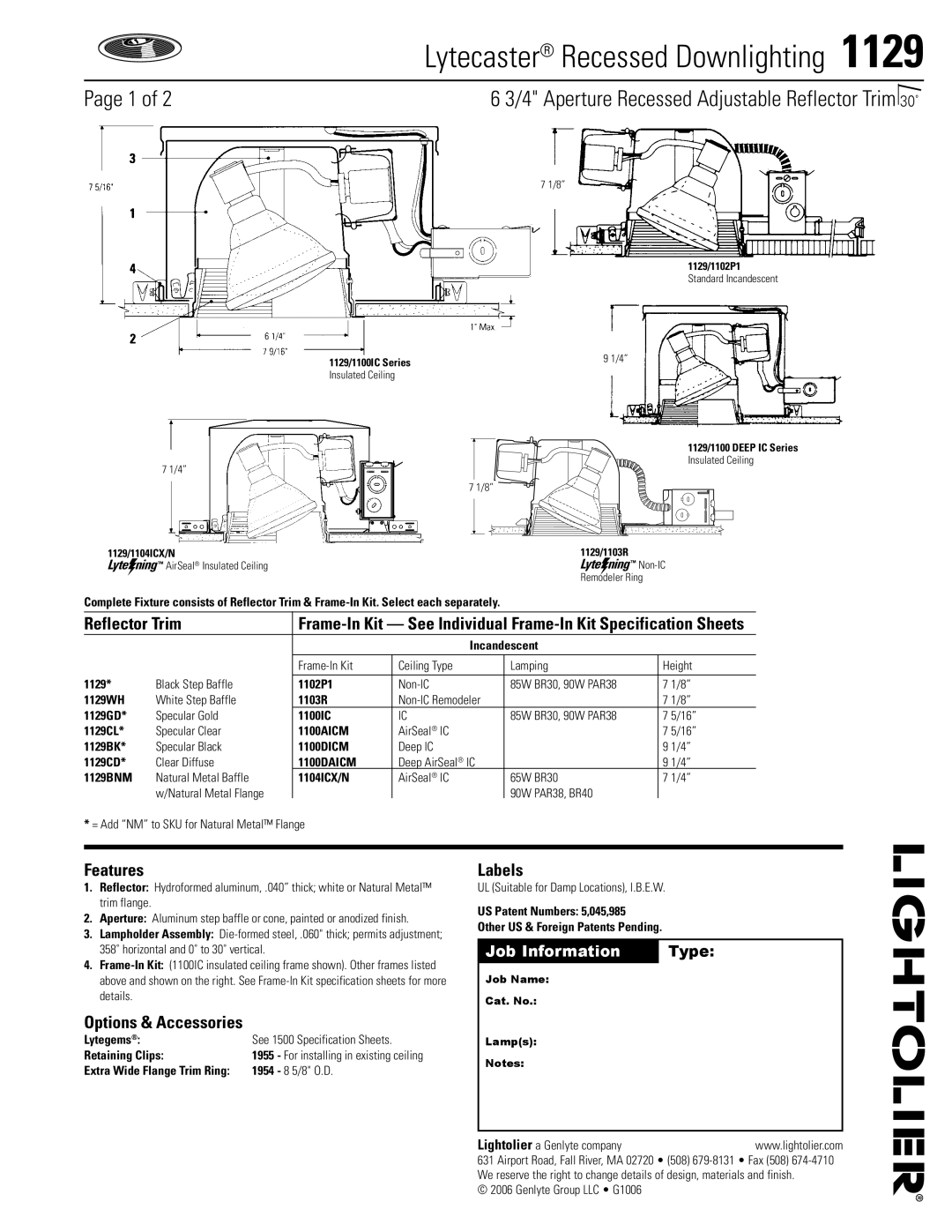

Lightolier 1129 specifications Lytecaster Recessed Downlighting, Page of, Job Information, Type

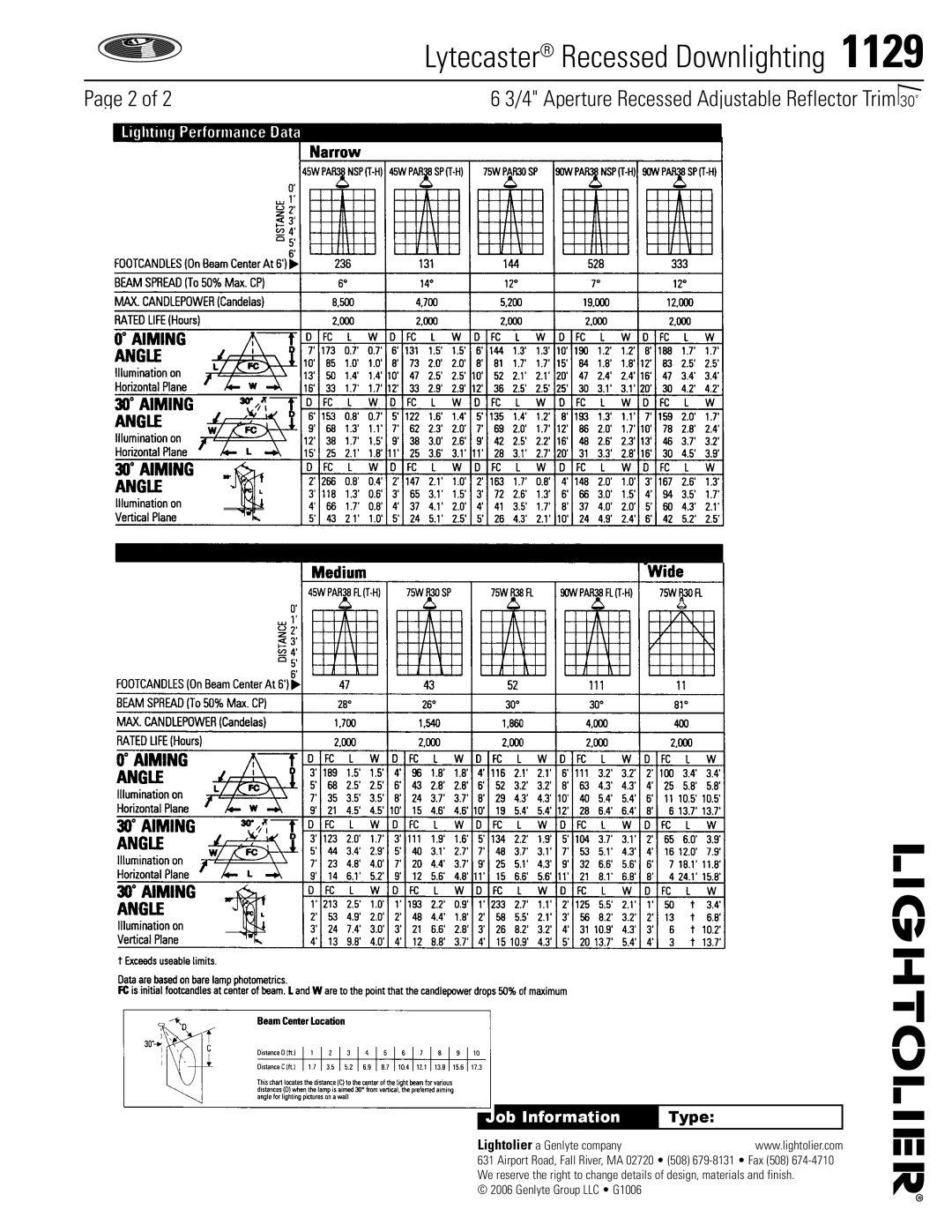

	Lytecaster® Recessed Downlighting  1129
Page of 2	6 3/4" Aperture Recessed Adjustable Reflector Trim 30˚

7 1/8”

1129/1102P1

Standard Incandescent

	1129/1100ic Series	9 1/4”
	Insulated Ceiling
		1129/1100 DEEP IC Series
7 1/4”		Insulated Ceiling
		7 1/8”
1129/1104ICX/N		1129/1103R
0™ AirSeal® Insulated Ceiling		0™ Non-IC
		Remodeler Ring

Complete Fixture consists of Reflector Trim & Frame-In Kit. Select each separately.

Reflector Trim		Frame-In Kit — See Individual Frame-In Kit Specification Sheets
			Incandescent
		Frame-In Kit	Ceiling Type	Lamping		Height
1129*	Black Step Baffle	1102P1	Non-IC	85W	BR30, 90W PAR38	7	1/8”
1129WH	White Step Baffle	1103R	Non-IC Remodeler			7	1/8”
1129GD*	Specular Gold	1100IC	IC	85W BR30, 90W PAR38		7	5/16”
1129CL*	Specular Clear	1100AICM	AirSeal® IC			7	5/16”
1129BK*	Specular Black	1100DICM	Deep IC			9	1/4”
1129CD*	Clear Diffuse	1100DAICM	Deep AirSeal® IC			9	1/4”
1129BNM	Natural Metal Baffle	1104ICX/N	AirSeal® IC	65W	BR30	7	1/4”
	w/Natural Metal Flange			90W	PAR38, BR40

*= Add “NM” to SKU for Natural Metal™ Flange

Features

1.Reflector: Hydroformed aluminum, .040” thick; white or Natural Metal™ trim flange.

2.Aperture: Aluminum step baffle or cone, painted or anodized finish.

3.Lampholder Assembly: Die-formed steel, .060" thick; permits adjustment; 358˚ horizontal and 0˚ to 30˚ vertical.

4.Frame-In Kit: (1100IC insulated ceiling frame shown). Other frames listed above and shown on the right. See Frame-In Kit specification sheets for more details.

Options & Accessories

Lytegems®:	See 1500 Specification Sheets.
Retaining Clips:	1955	- For installing in existing ceiling
Extra Wide Flange Trim Ring:	1954	- 8 5/8" O.D.

Labels

UL (Suitable for Damp Locations), I.B.E.W.

US Patent Numbers: 5,045,985

Other US & Foreign Patents Pending.

Job Information Type:

Job Name:

Cat. No.:

Lamp(s):

Notes:

Lightolier a Genlyte companywww.lightolier.com 631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710 We reserve the right to change details of design, materials and finish.

© 2006 Genlyte Group LLC • G1006
