	Lytecaster® Recessed Downlighting  1131

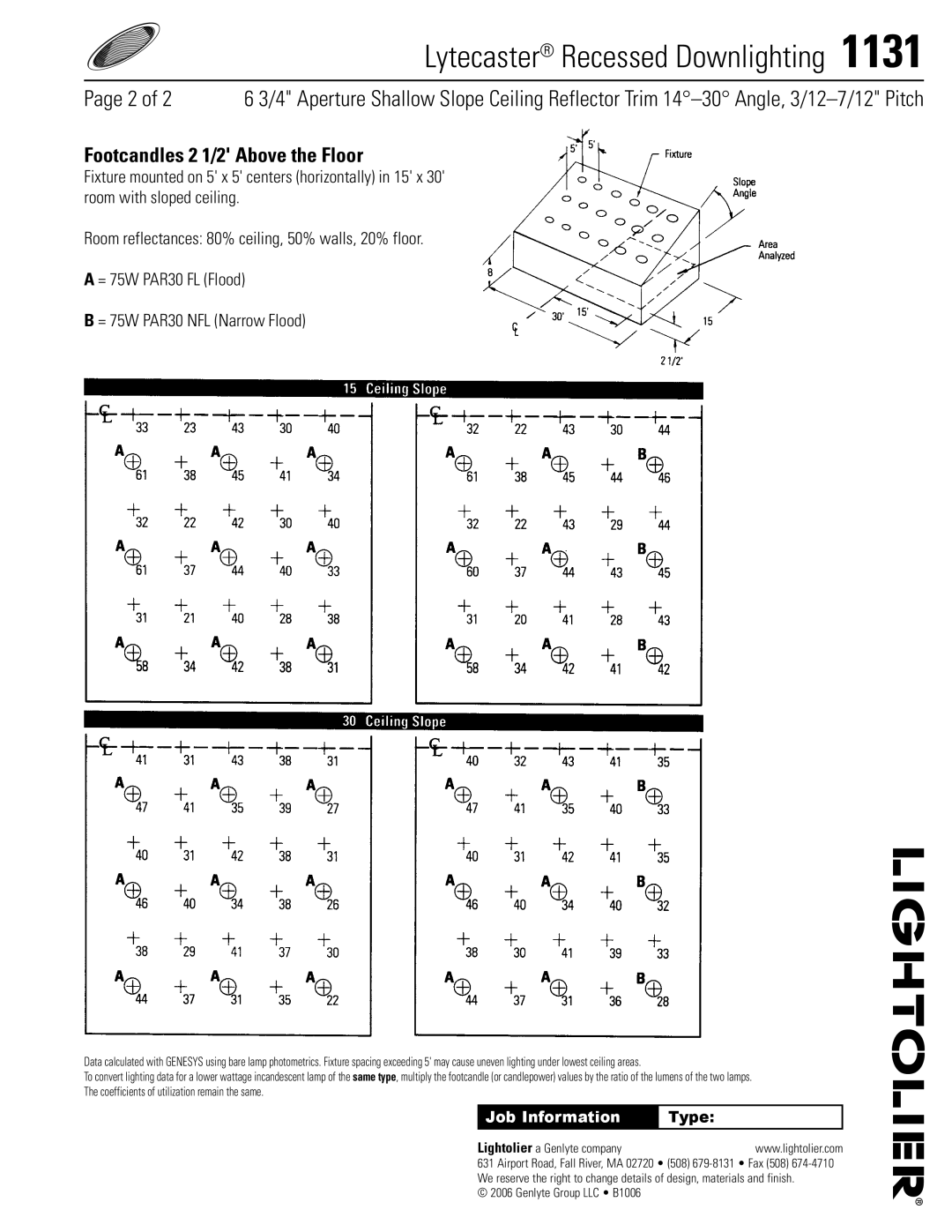

Page  of 2	6 3/4" Aperture Shallow Slope Ceiling Reflector Trim 14°–30° Angle, 3/12–7/12" Pitch

7 15/16”

1131/1100ic Series

Insulated Ceiling

1100IC Mounting Frame must be installed with

the J-Box on the “UPHILL” side.

7 1/4”

1131/1104ICX/N

™ AirSeal® Insulated Ceiling

1104ICX/N Mounting Frame must be installed

with the J-Box on the “DOWNHILL” side.

Complete Fixture consists of Reflector Trim & Frame-In Kit. Select each separately.

Reflector Trim		Frame-In Kit — See Individual Frame-In Kit Specification Sheets
					Incandescent
		Frame-In Kit	Installation Type	Lamping		Height
1131	Black Step Baffle	1100IC	IC	75W	PAR30 (Short Neck)	7	5/16”
1131WH	White Step Baffle	1100AICM	AirSeal® IC	65W	BR30	7	5/16”
1131GD	Specular Gold	1104ICX/N	AirSeal® IC	75W	PAR30 (Short Neck)	7	1/4”
1131CL	Specular Clear			85W	BR30
1131BK	Specular Black

Features

1.Housing: Hydroformed aluminum, .040” thick; white trim flange.

2.Aperture: Conical aluminum step baffle, matte black or gloss white finish; or hydroformed aluminum cone, specular finish. For ceiling slopes 14˚ - 30˚ angle, 3/12 - 7/12 pitch.

3.Lamp Housing: Hydroformed aluminum, .040" thick; permits ± 7˚ vertical adjustment for straight downlighting.

4.Frame-In Kit: See Frame-In Kit specification sheets for more details.

Options & Accessories

Extra Wide Flange Trim Ring: 1954 - 8 5/8" O.D.

Labels

UL (Suitable for Damp Locations), I.B.E.W.

US Patent Numbers: 4,313,154; 5,045,985; 5,457,617

Job Information Type:

Job Name:

Cat. No.:

Lamp(s):

Notes:
