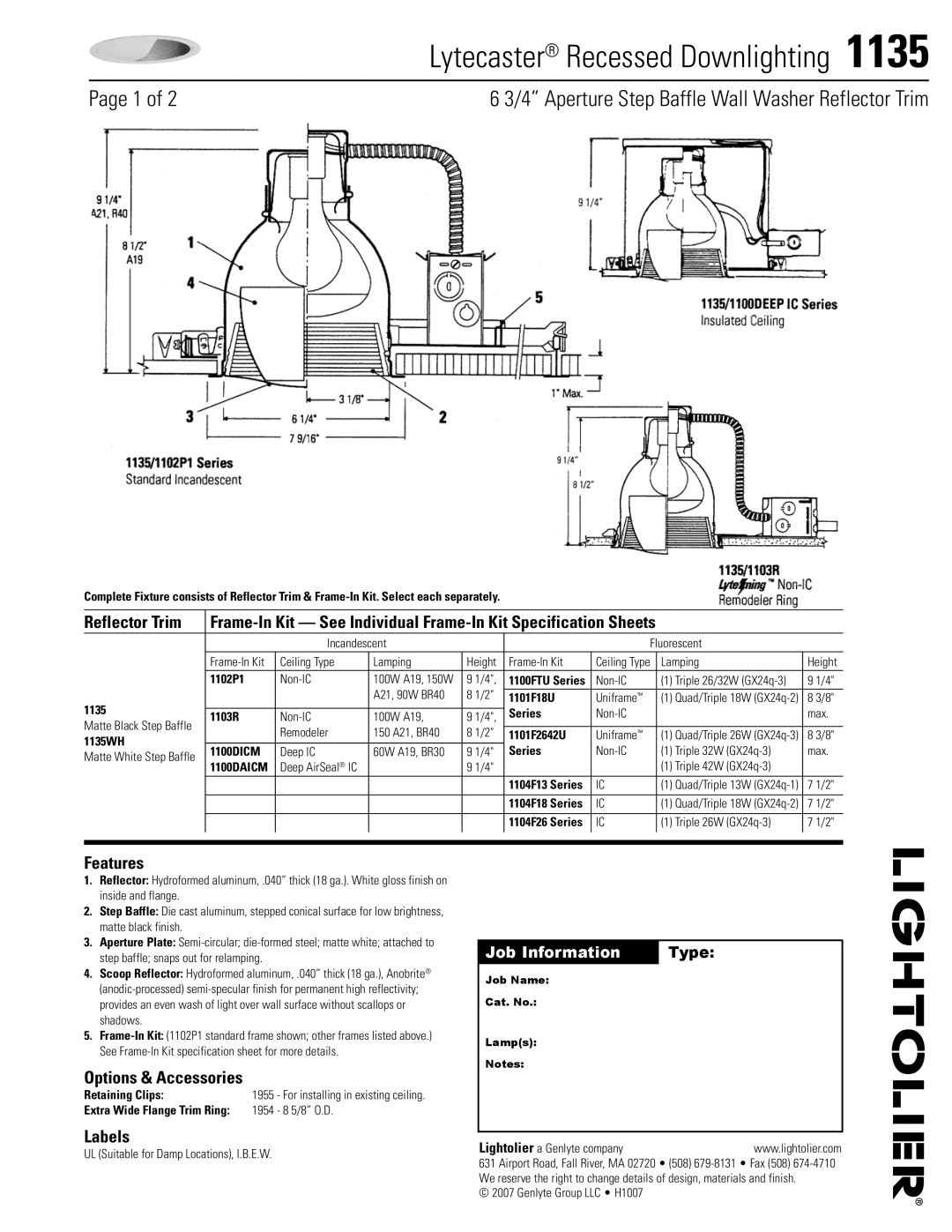

	Lytecaster® Recessed Downlighting  1135

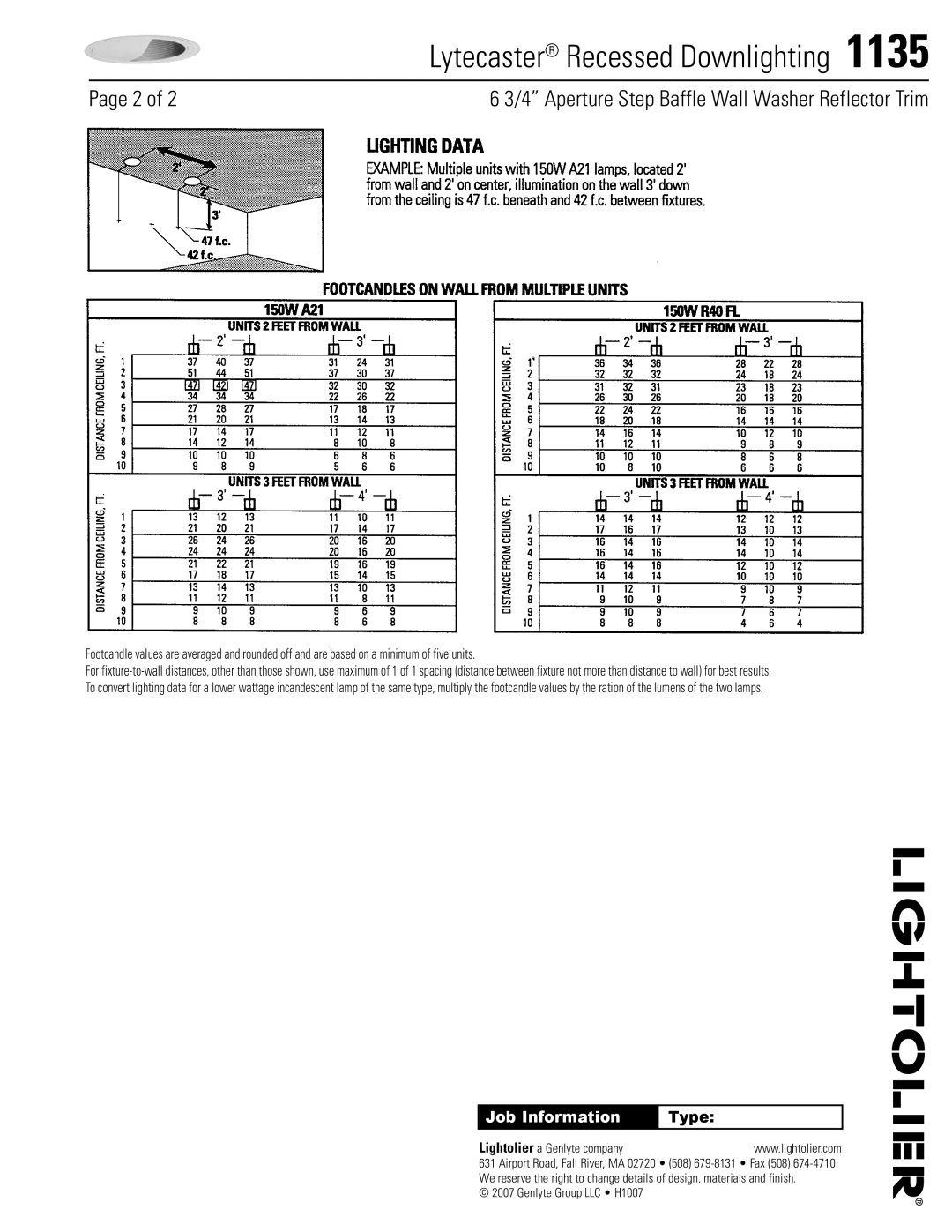

Page  of 2	6 3/4” Aperture Step Baffle Wall Washer Reflector Trim

Complete Fixture consists of Reflector Trim & Frame-In Kit. Select each separately.

Reflector Trim	Frame-In Kit — See Individual Frame-In Kit Specification Sheets
		Incandescent					Fluorescent
	Frame-In Kit	Ceiling Type	Lamping	Height		Frame-In Kit	Ceiling Type	Lamping		Height
	1102P1	Non-IC	100W A19, 150W	9	1/4",	1100FTU Series	Non-IC	(1)	Triple 26/32W (GX24q-3)	9 1/4"
1135			A21, 90W BR40	8	1/2"	1101F18U	Uniframe™	(1)	Quad/Triple 18W (GX24q-2)	8 3/8"
						Series	Non-IC			max.
	1103R	Non-IC	100W A19,	9	1/4",
Matte Black Step Baffle		Remodeler	150 A21, BR40	8	1/2"
						1101F2642U	Uniframe™	(1)	Quad/Triple 26W (GX24q-3)	8 3/8"
1135WH
	1100DICM	Deep IC	60W A19, BR30	9	1/4"	Series	Non-IC	(1)	Triple 32W (GX24q-3)	max.
Matte White Step Baffle
	1100DAICM	Deep AirSeal® IC		9	1/4"			(1)	Triple 42W (GX24q-3)
						1104F13 Series	IC	(1)	Quad/Triple 13W (GX24q-1)	7 1/2"
						1104F18 Series	IC	(1)	Quad/Triple 18W (GX24q-2)	7 1/2"
						1104F26 Series	IC	(1)	Triple 26W (GX24q-3)	7 1/2"

Features

1.Reflector: Hydroformed aluminum, .040” thick (18 ga.). White gloss finish on inside and flange.

2.Step Baffle: Die cast aluminum, stepped conical surface for low brightness, matte black finish.

3.Aperture Plate: Semi-circular; die-formed steel; matte white; attached to step baffle; snaps out for relamping.

4.Scoop Reflector: Hydroformed aluminum, .040” thick (18 ga.), Anobrite® (anodic-processed) semi-specular finish for permanent high reflectivity; provides an even wash of light over wall surface without scallops or shadows.

5.Frame-In Kit: (1102P1 standard frame shown; other frames listed above.) See Frame-In Kit specification sheet for more details.

Options & Accessories

Retaining Clips:	1955	- For installing in existing ceiling.
Extra Wide Flange Trim Ring:	1954	- 8 5/8” O.D.

Labels

UL (Suitable for Damp Locations), I.B.E.W.
