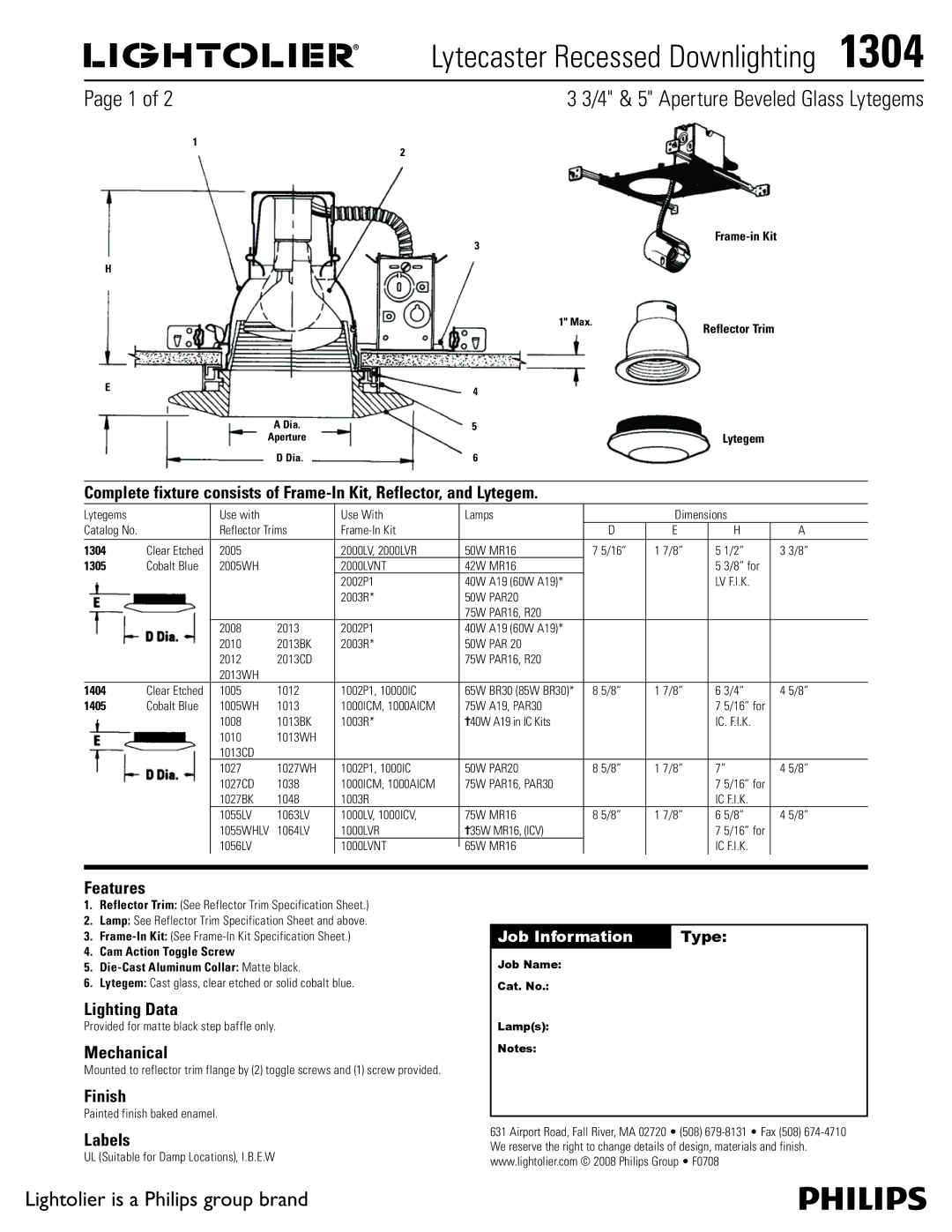

Lightolier specifications Lytecaster Recessed Downlighting1304, Page 1 of, Features, Finish

	Lytecaster Recessed Downlighting  1304
Page 1 of 2	3 3/4" & 5" Aperture Beveled Glass Lytegems

1

2

Frame-in Kit

3

H

1" Max.

Reflector Trim

E

4

A Dia.

5

Aperture

Lytegem

D Dia.

6

Complete fixture consists of Frame-In Kit, Reflector, and Lytegem.

Lytegems

Use with

Use With

Lamps

Dimensions

Catalog No.

Reflector Trims

Frame-In Kit

D

E

H

A

1304

Clear Etched

2005

2000LV, 2000LVR

50W

MR16

7 5/16”

1 7/8”

5

1/2”

3 3/8”

1305

Cobalt Blue

2005WH

2000LVNT

42W

MR16

5

3/8” for

2002P1

40W

A19 (60W A19)*

LV F.I.K.

2003R*

50W

PAR20

75W

PAR16, R20

2008

2013

2002P1

40W

A19 (60W A19)*

2010

2013BK

2003R*

50W

PAR 20

2012

2013CD

75W

PAR16, R20

2013WH

1404

Clear Etched

1005

1012

1002P1, 10000IC

65W

BR30 (85W BR30)*

8 5/8”

1 7/8”

6

3/4”

4 5/8”

1405

Cobalt Blue

1005WH

1013

1000ICM, 1000AICM

75W

A19, PAR30

7

5/16” for

1008

1013BK

1003R*

†40W A19 in IC Kits

IC. F.I.K.

1010

1013WH

1013CD

1027

1027WH

1002P1, 1000IC

50W

PAR20

8 5/8”

1 7/8”

7”

4 5/8”

1027CD

1038

1000ICM, 1000AICM

75W

PAR16, PAR30

7

5/16” for

1027BK

1048

1003R

IC F.I.K.

1055LV

1063LV

1000LV, 1000ICV,

75W

MR16

8 5/8”

1 7/8”

6

5/8”

4 5/8”

1055WHLV

1064LV

1000LVR

†35W MR16, (ICV)

7

5/16” for

1056LV

1000LVNT

65W

MR16

IC F.I.K.

Features

1.Reflector Trim: (See Reflector Trim Specification Sheet.)

2.Lamp: See Reflector Trim Specification Sheet and above.

3.Frame-In Kit: (See Frame-In Kit Specification Sheet.)

4.Cam Action Toggle Screw5.Die-Cast Aluminum Collar: Matte black.

6.Lytegem: Cast glass, clear etched or solid cobalt blue.

Lighting Data

Provided for matte black step baffle only.

Mechanical

Mounted to reflector trim flange by (2) toggle screws and (1) screw provided.

Finish

Painted finish baked enamel.

Labels

UL (Suitable for Damp Locations), I.B.E.W

Lightolier is a Philips group brand

Job Information Type:

Job Name:

Cat. No.:

Lamp(s):

Notes:

631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710 We reserve the right to change details of design, materials and finish. www.lightolier.com © 2008 Philips Group • F0708
