Lightolier 2004ICV Series instruction sheet IS 2026WH, Frame-Inkits With Roto Clips, A0203

READ AND UNDERSTAND THESE INSTRUCTIONS BEFORE INSTALLING FIXTURE

This fixture is intended for installation in accordance with the National Electrical Code and local

or Federal code specifications. To assure full compliance with local codes and regulations, check with your local electrical inspector before installation. To prevent electrical shock, turn off electricity at fuse box before proceeding.

Retain these instructions for maintenance reference.

INSTRUCTION SHEET NO.

IS:2026WH

A0203 Page 1 of 1

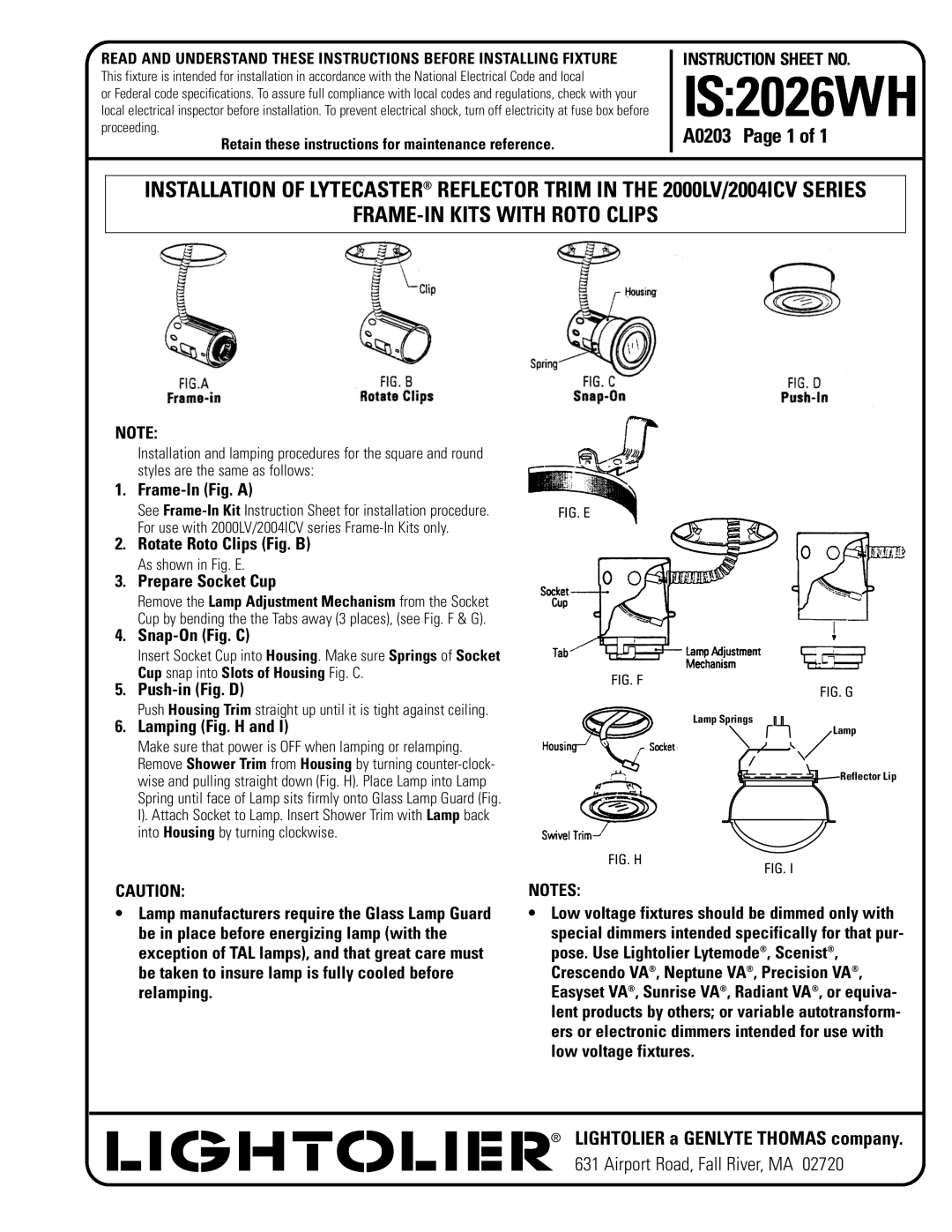

INSTALLATION OF LYTECASTER® REFLECTOR TRIM IN THE 2000LV/2004ICV SERIES

FRAME-IN KITS WITH ROTO CLIPS

NOTE:

Installation and lamping procedures for the square and round styles are the same as follows:

1.	Frame-In (Fig. A)
	See Frame-In Kit Instruction Sheet for installation procedure.
	For use with 2000LV/2004ICV series Frame-In Kits only.
2.	Rotate Roto Clips (Fig. B)
	As shown in Fig. E.
3.	Prepare Socket Cup
	Remove the Lamp Adjustment Mechanism from the Socket
	Cup by bending the the Tabs away (3 places), (see Fig. F & G).
4.	Snap-On (Fig. C)
	Insert Socket Cup into Housing. Make sure Springs of Socket
	Cup snap into Slots of Housing Fig. C.
5.	Push-in (Fig. D)
	Push Housing Trim straight up until it is tight against ceiling.
6.	Lamping (Fig. H and I)

FIG. E

FIG. F

FIG. G

Lamp Springs

Make sure that power is OFF when lamping or relamping.

Remove Shower Trim from Housing by turning counter-clock-

wise and pulling straight down (Fig. H). Place Lamp into Lamp

Spring until face of Lamp sits firmly onto Glass Lamp Guard (Fig.

I). Attach Socket to Lamp. Insert Shower Trim with Lamp back

into Housing by turning clockwise.

CAUTION:

FIG. H

NOTES:

Lamp

Reflector Lip

FIG. I

•Lamp manufacturers require the Glass Lamp Guard be in place before energizing lamp (with the exception of TAL lamps), and that great care must be taken to insure lamp is fully cooled before relamping.

•Low voltage fixtures should be dimmed only with special dimmers intended specifically for that pur- pose. Use Lightolier Lytemode®, Scenist®, Crescendo VA®, Neptune VA®, Precision VA®, Easyset VA®, Sunrise VA®, Radiant VA®, or equiva- lent products by others; or variable autotransform- ers or electronic dimmers intended for use with low voltage fixtures.

®LIGHTOLIER a GENLYTE THOMAS company. 631 Airport Road, Fall River, MA 02720
