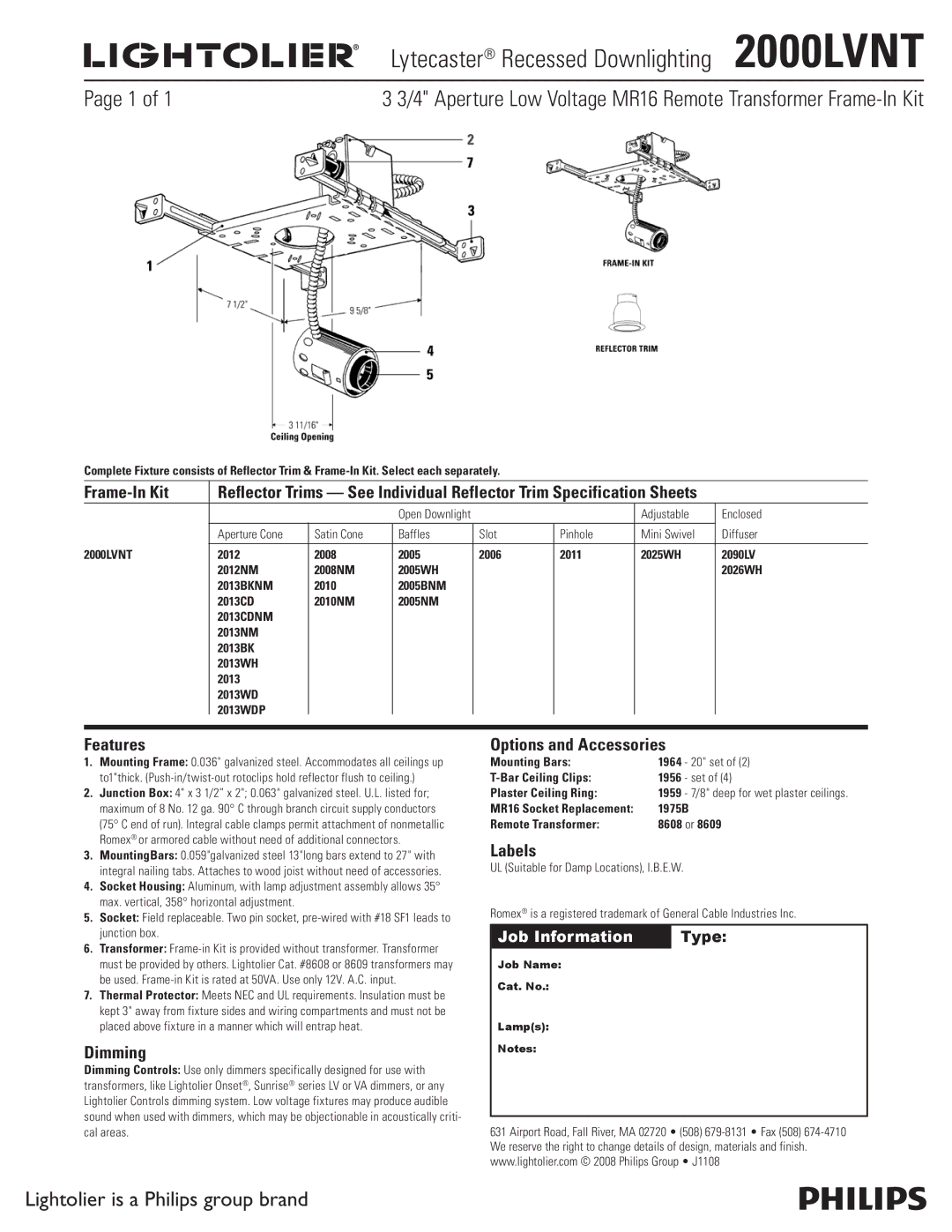

| Lytecaster® Recessed Downlighting 2000LVNT |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| |||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| ||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| |||||
Page 1 of 1 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| 3 3/4" Aperture Low Voltage MR16 Remote Transformer | |||||||
Complete Fixture consists of Reflector Trim &
| Reflector Trims — See Individual Reflector Trim Specification Sheets |
| |||||
|
|
| Open Downlight |
|
| Adjustable | Enclosed |
| Aperture Cone | Satin Cone | Baffles | Slot | Pinhole | Mini Swivel | Diffuser |
|
|
|
|
|
|
|
|
2000LVNT | 2012 | 2008 | 2005 | 2006 | 2011 | 2025WH | 2090LV |
| 2012NM | 2008NM | 2005WH |
|
|
| 2026WH |
| 2013BKNM | 2010 | 2005BNM |
|
|
|
|
| 2013CD | 2010NM | 2005NM |
|
|
|
|
| 2013CDNM |
|
|
|
|
|
|
| 2013NM |
|
|
|
|
|
|
| 2013BK |
|
|
|
|
|
|
| 2013WH |
|
|
|
|
|
|
| 2013 |
|
|
|
|
|
|
| 2013WD |
|
|
|
|
|
|
| 2013WDP |
|
|
|
|
|
|
|
|
|
|
|
|
| |
Features
1.Mounting Frame: 0.036" galvanized steel. Accommodates all ceilings up to1"thick.
2.Junction Box: 4" x 3 1/2” x 2"; 0.063" galvanized steel. U.L. listed for; maximum of 8 No. 12 ga. 90° C through branch circuit supply conductors (75° C end of run). Integral cable clamps permit attachment of nonmetallic Romex® or armored cable without need of additional connectors.
3.MountingBars: 0.059"galvanized steel 13"long bars extend to 27" with integral nailing tabs. Attaches to wood joist without need of accessories.
4.Socket Housing: Aluminum, with lamp adjustment assembly allows 35° max. vertical, 358° horizontal adjustment.
5.Socket: Field replaceable. Two pin socket,
6.Transformer:
7.Thermal Protector: Meets NEC and UL requirements. Insulation must be kept 3" away from fixture sides and wiring compartments and must not be placed above fixture in a manner which will entrap heat.
Dimming
Dimming Controls: Use only dimmers specifically designed for use with transformers, like Lightolier Onset®, Sunrise® series LV or VA dimmers, or any Lightolier Controls dimming system. Low voltage fixtures may produce audible sound when used with dimmers, which may be objectionable in acoustically criti- cal areas.
Options and Accessories
Mounting Bars: | 1964 - 20" set of (2) | |
1956 | - set of (4) | |
Plaster Ceiling Ring: | 1959 | - 7/8" deep for wet plaster ceilings. |
MR16 Socket Replacement: | 1975B | |
Remote Transformer: | 8608 or 8609 | |
Labels
UL (Suitable for Damp Locations), I.B.E.W.
Romex® is a registered trademark of General Cable Industries Inc.
Job Information | Type: |
|
|
Job Name:
Cat. No.:
Lamp(s):
Notes:
631 Airport Road, Fall River, MA 02720 • (508)
