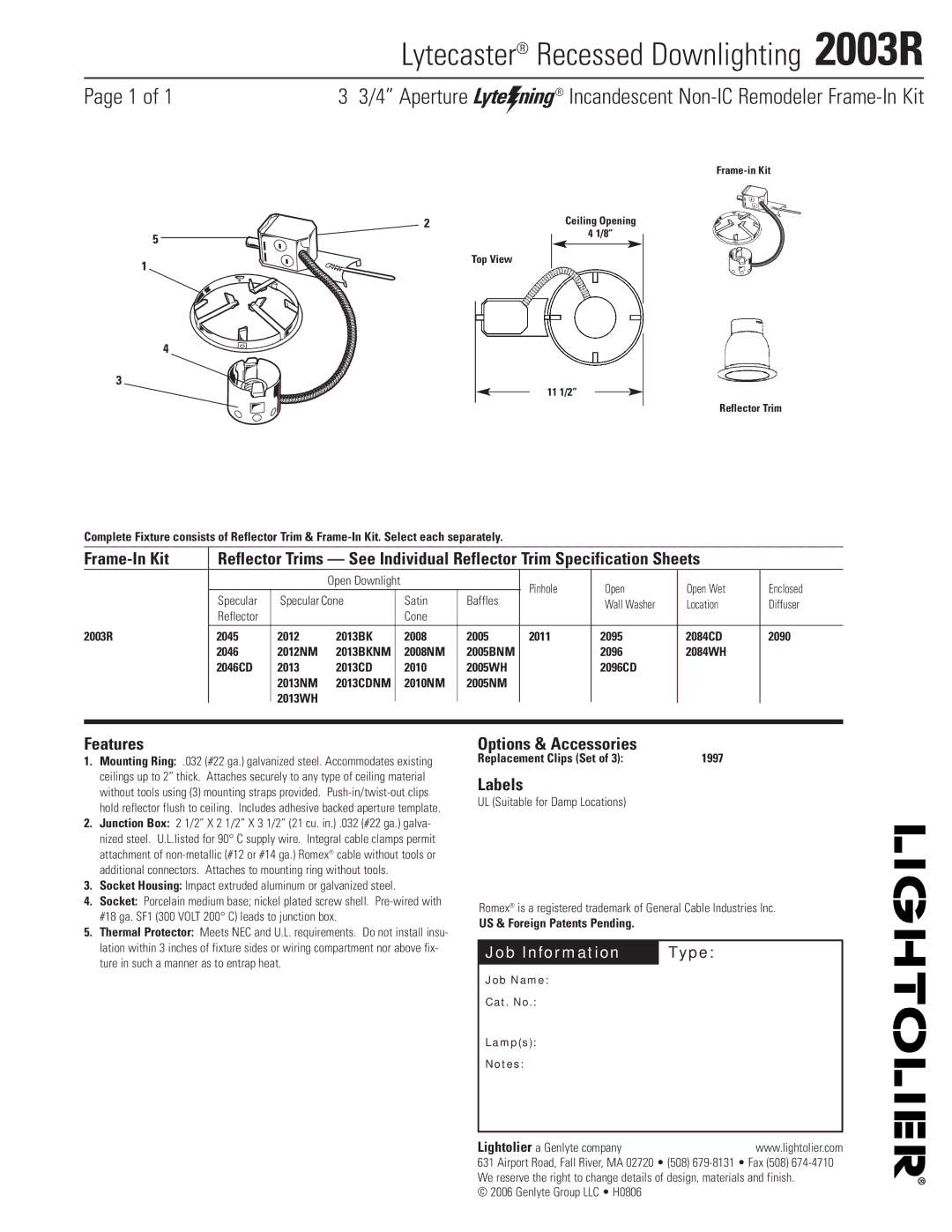

Lytecaster® Recessed Downlighting 2003R

Page 1 of 1

3 3/4” Aperture 0® Incandescent Non-IC Remodeler Frame-In Kit

2

Ceiling Opening

5

4 1/8”



1

Top View



4

3

11 1/2”

Frame-in Kit

Reflector Trim

Complete Fixture consists of Reflector Trim & Frame-In Kit. Select each separately.

Frame-In Kit

Reflector Trims — See Individual Reflector Trim Specification Sheets









Open Downlight





Pinhole

Open

Open Wet

Enclosed



Specular

Specular Cone



Satin

Baffles

Pinhole

Wall Washer

Location

Diffuser



Reflector







Cone











2003R

2045

2012

2013BK



2008

2005

2011

2095

2084CD

2090



2046

2012NM

2013BKNM



2008NM

2005BNM



2096

2084WH





2046CD

2013

2013CD



2010

2005WH



2096CD









2013NM

2013CDNM



2010NM

2005NM













2013WH







































Features

1.Mounting Ring: .032 (#22 ga.) galvanized steel. Accommodates existing ceilings up to 2” thick. Attaches securely to any type of ceiling material without tools using (3) mounting straps provided. Push-in/twist-out clips hold reflector flush to ceiling. Includes adhesive backed aperture template.

2.Junction Box: 2 1/2” X 2 1/2” X 3 1/2” (21 cu. in.) .032 (#22 ga.) galva- nized steel. U.L.listed for 90° C supply wire. Integral cable clamps permit attachment of non-metallic (#12 or #14 ga.) Romex® cable without tools or additional connectors. Attaches to mounting ring without tools.

3.Socket Housing: Impact extruded aluminum or galvanized steel.

4.Socket: Porcelain medium base; nickel plated screw shell. Pre-wired with #18 ga. SF1 (300 VOLT 200° C) leads to junction box.

5.Thermal Protector: Meets NEC and U.L. requirements. Do not install insu- lation within 3 inches of fixture sides or wiring compartment nor above fix- ture in such a manner as to entrap heat.

Options & Accessories

Replacement Clips (Set of 3):

1997

Labels

UL (Suitable for Damp Locations)

Romex® is a registered trademark of General Cable Industries Inc.

US & Foreign Patents Pending.

Job Information

Type:

Job Name:

Cat. No.:

Lamp(s):

Notes:

Lightolier a Genlyte companywww.lightolier.com 631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710 We reserve the right to change details of design, materials and finish.

© 2006 Genlyte Group LLC • H0806
