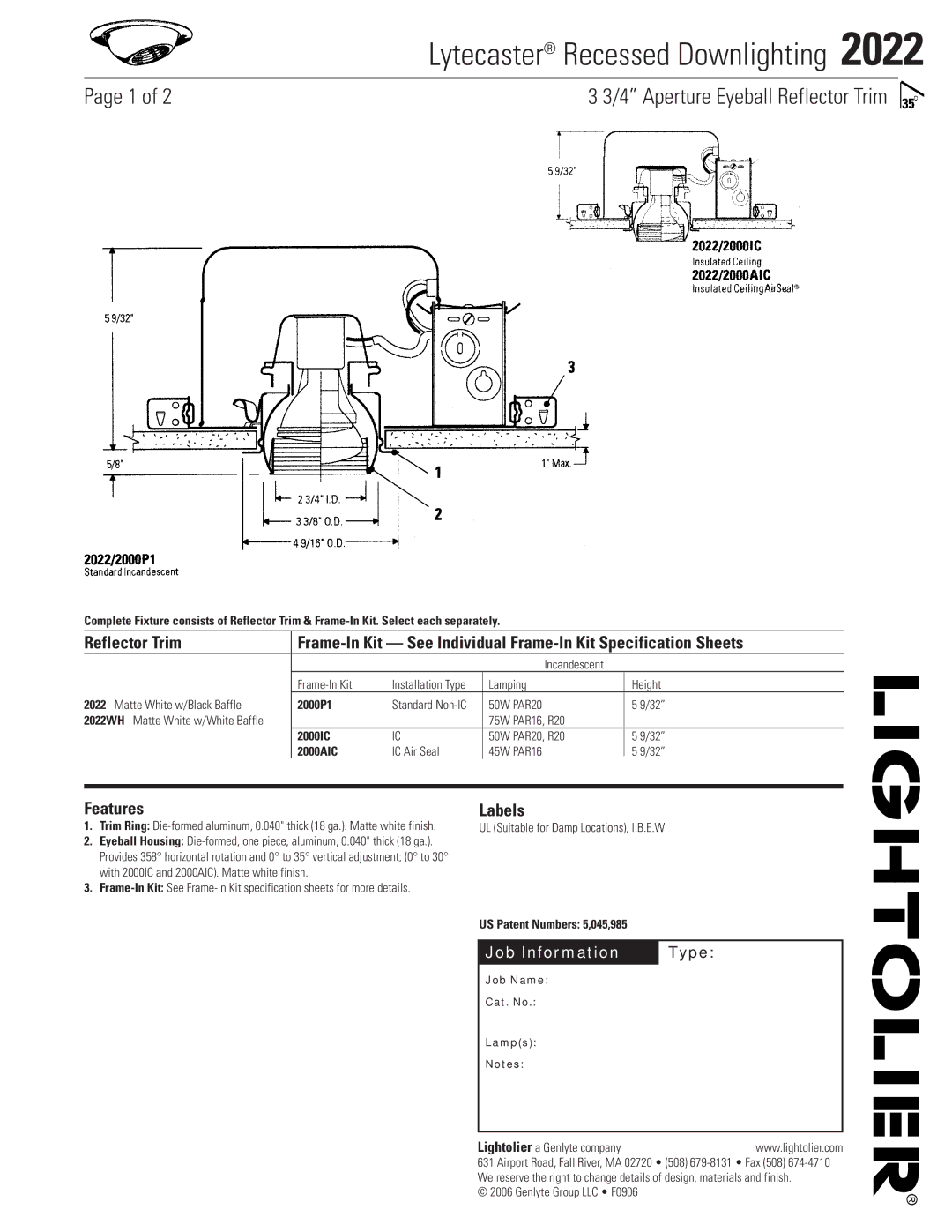

	Lytecaster® Recessed Downlighting 2022
Page 1 of 2		3 3/4” Aperture Eyeball Reflector Trim

Complete Fixture consists of Reflector Trim & Frame-In Kit. Select each separately.

Reflector Trim	Frame-In Kit — See Individual Frame-In Kit Specification Sheets
				Incandescent
	Frame-In Kit	Installation Type	Lamping		Height
2022 Matte White w/Black Baffle	2000P1	Standard Non-IC	50W	PAR20	5 9/32”
2022WH Matte White w/White Baffle			75W PAR16, R20
	2000IC	IC	50W	PAR20, R20	5 9/32”
	2000AIC	IC Air Seal	45W	PAR16	5 9/32”

Features

1.Trim Ring: Die-formed aluminum, 0.040" thick (18 ga.). Matte white finish.

2.Eyeball Housing: Die-formed, one piece, aluminum, 0.040" thick (18 ga.). Provides 358° horizontal rotation and 0° to 35° vertical adjustment; (0° to 30° with 2000IC and 2000AIC). Matte white finish.

3.Frame-In Kit: See Frame-In Kit specification sheets for more details.

Labels

UL (Suitable for Damp Locations), I.B.E.W

US Patent Numbers: 5,045,985

Job Information Type:

Job Name:

Cat. No.:

Lamp(s):

Notes:

Lightolier a Genlyte company	www.lightolier.com
631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710
We reserve the right to change details of design, materials and finish.
© 2006 Genlyte Group LLC • F0906	®
