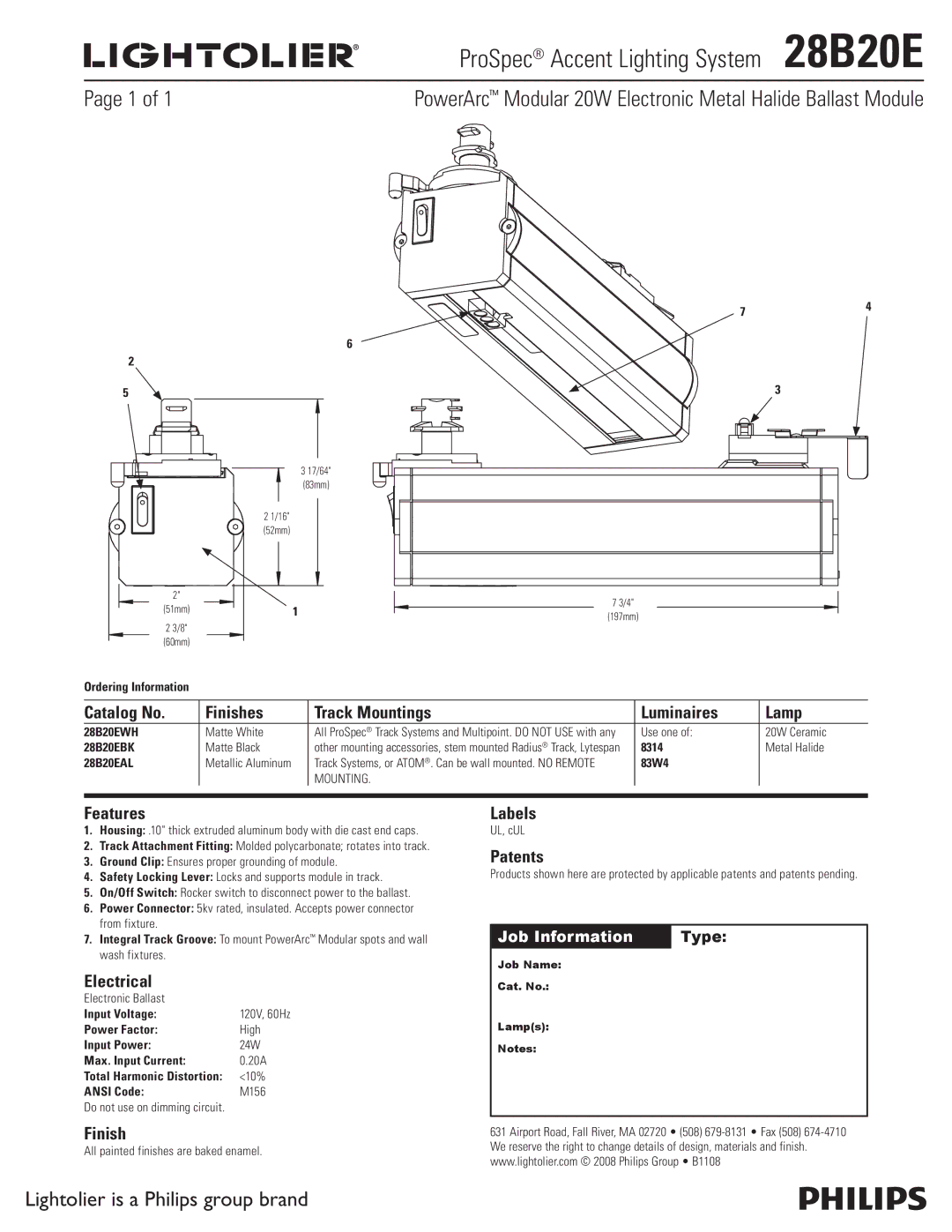

| ProSpec® Accent Lighting System 28B20E |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| |||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| ||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| |||||
Page 1 of 1 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| PowerArc™ Modular 20W Electronic Metal Halide Ballast Module | |||||||
2
5
2"
(51mm)
2 3/8"
(60mm)
Ordering Information
6
3 17/64"
(83mm)
21/16"
(52mm)
1
74
3
73/4"
(197mm)
Catalog No. | Finishes | Track Mountings | Luminaires | Lamp |
28B20EWH | Matte White | All ProSpec® Track Systems and Multipoint. DO NOT USE with any | Use one of: | 20W Ceramic |
28B20EBK | Matte Black | other mounting accessories, stem mounted Radius® Track, Lytespan | 8314 | Metal Halide |
28B20EAL | Metallic Aluminum | Track Systems, or ATOM®. Can be wall mounted. NO REMOTE | 83W4 |
|
|
| MOUNTING. |
|
|
|
|
|
|
|
Features
1.Housing: .10" thick extruded aluminum body with die cast end caps.
2.Track Attachment Fitting: Molded polycarbonate; rotates into track.
3.Ground Clip: Ensures proper grounding of module.
4.Safety Locking Lever: Locks and supports module in track.
5.On/Off Switch: Rocker switch to disconnect power to the ballast.
6.Power Connector: 5kv rated, insulated. Accepts power connector from fixture.
7.Integral Track Groove: To mount PowerArc™ Modular spots and wall wash fixtures.
Electrical
Electronic Ballast |
|
Input Voltage: | 120V, 60Hz |
Power Factor: | High |
Input Power: | 24W |
Max. Input Current: | 0.20A |
Total Harmonic Distortion: | <10% |
ANSI Code: | M156 |
Do not use on dimming circuit. |
|
Finish
All painted finishes are baked enamel.
Labels
UL, cUL
Patents
Products shown here are protected by applicable patents and patents pending.
Job Information | Type: |
|
|
Job Name:
Cat. No.:
Lamp(s):
Notes:
631 Airport Road, Fall River, MA 02720 • (508)
