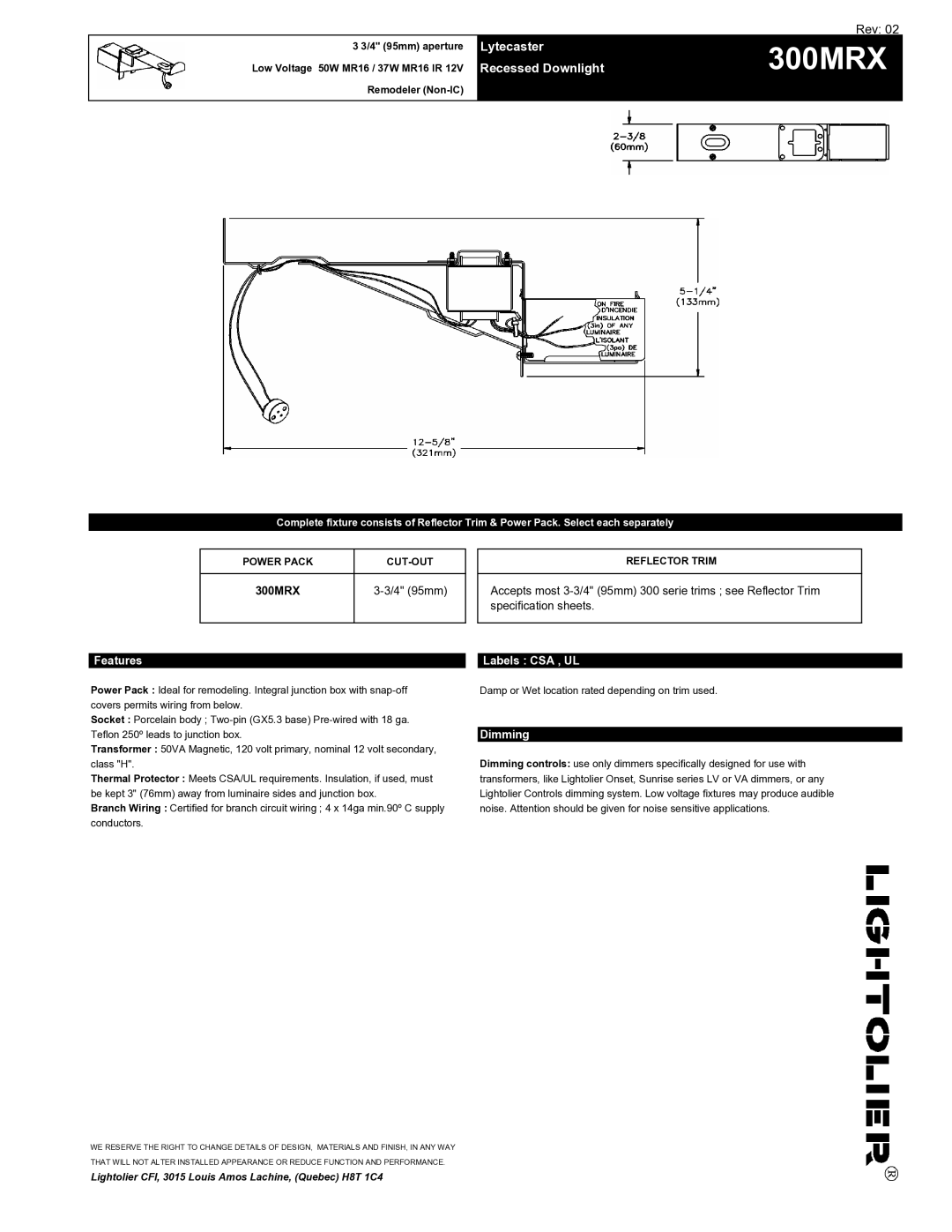

Rev: 02

3 3/4" (95mm) aperture

Lytecaster

300MRX



Low Voltage 50W MR16 / 37W MR16 IR 12V

Recessed Downlight



Remodeler (Non-IC)















Complete fixture consists of Reflector Trim & Power Pack. Select each separately

POWER PACK

CUT-OUT





300MRX

3-3/4" (95mm)





Features

Power Pack : Ideal for remodeling. Integral junction box with snap-off covers permits wiring from below.

Socket : Porcelain body ; Two-pin (GX5.3 base) Pre-wired with 18 ga. Teflon 250º leads to junction box.

Transformer : 50VA Magnetic, 120 volt primary, nominal 12 volt secondary, class "H".

Thermal Protector : Meets CSA/UL requirements. Insulation, if used, must be kept 3" (76mm) away from luminaire sides and junction box.

Branch Wiring : Certified for branch circuit wiring ; 4 x 14ga min.90º C supply conductors.

REFLECTOR TRIM

Accepts most 3-3/4" (95mm) 300 serie trims ; see Reflector Trim specification sheets.

Labels : CSA , UL

Damp or Wet location rated depending on trim used.

Dimming

Dimming controls: use only dimmers specifically designed for use with transformers, like Lightolier Onset, Sunrise series LV or VA dimmers, or any Lightolier Controls dimming system. Low voltage fixtures may produce audible noise. Attention should be given for noise sensitive applications.

WE RESERVE THE RIGHT TO CHANGE DETAILS OF DESIGN, MATERIALS AND FINISH, IN ANY WAY THAT WILL NOT ALTER INSTALLED APPEARANCE OR REDUCE FUNCTION AND PERFORMANCE.

Lightolier CFI, 3015 Louis Amos Lachine, (Quebec) H8T 1C4

Page 1
Image 1
Lightolier 300MRX specifications Lytecaster, Recessed Downlight

300MRX specifications

The Lightolier 300MRX is a cutting-edge lighting solution designed to meet the needs of modern spaces while offering energy efficiency, versatility, and aesthetic appeal. Built on advanced LED technology, the 300MRX series delivers exceptional lighting performance, making it an ideal choice for both residential and commercial applications.

One of the standout features of the Lightolier 300MRX is its sleek, minimalist design. The fixture is available in various finishes, allowing it to seamlessly integrate into any interior decor while providing an elegant touch to the environment. Its unobtrusive appearance makes it suitable for a wide range of applications, from accent lighting in art galleries to general illumination in office spaces.

The heart of the 300MRX's performance lies in its advanced LED technology. It offers an impressive lumen output, ensuring bright and even illumination across the desired area. This lighting solution boasts a high color rendering index (CRI), which means it accurately reproduces colors as they appear in natural daylight. This feature is particularly beneficial in environments where color differentiation is crucial, such as retail stores or design studios.

Moreover, the Lightolier 300MRX is designed with energy efficiency in mind. Equipped with a long-lasting LED source, it significantly reduces energy consumption compared to traditional lighting options. This not only leads to lower utility bills but also contributes to a more sustainable approach to lighting, aligning with the growing demand for eco-friendly building practices.

Another key characteristic of the 300MRX is its dimming capability. It is compatible with a range of dimming systems, allowing users to adjust the light intensity to suit their preferences or specific activities. This feature enhances the versatility of the fixture, making it suitable for various settings such as conference rooms, dining areas, or theaters where ambiance control is essential.

Installation and maintenance of the Lightolier 300MRX are also user-friendly. The fixture is designed for easy mounting and can be integrated into existing lighting systems with minimal effort. Additionally, the LED technology used in the 300MRX has a long lifespan, reducing the frequency of replacements and maintenance costs over time.

In summary, the Lightolier 300MRX combines style, functionality, and energy efficiency, making it a premier choice for anyone looking to enhance their lighting designs. With its advanced technology and thoughtful features, the 300MRX is set to illuminate spaces brilliantly while meeting the demands of modern living and working environments.
