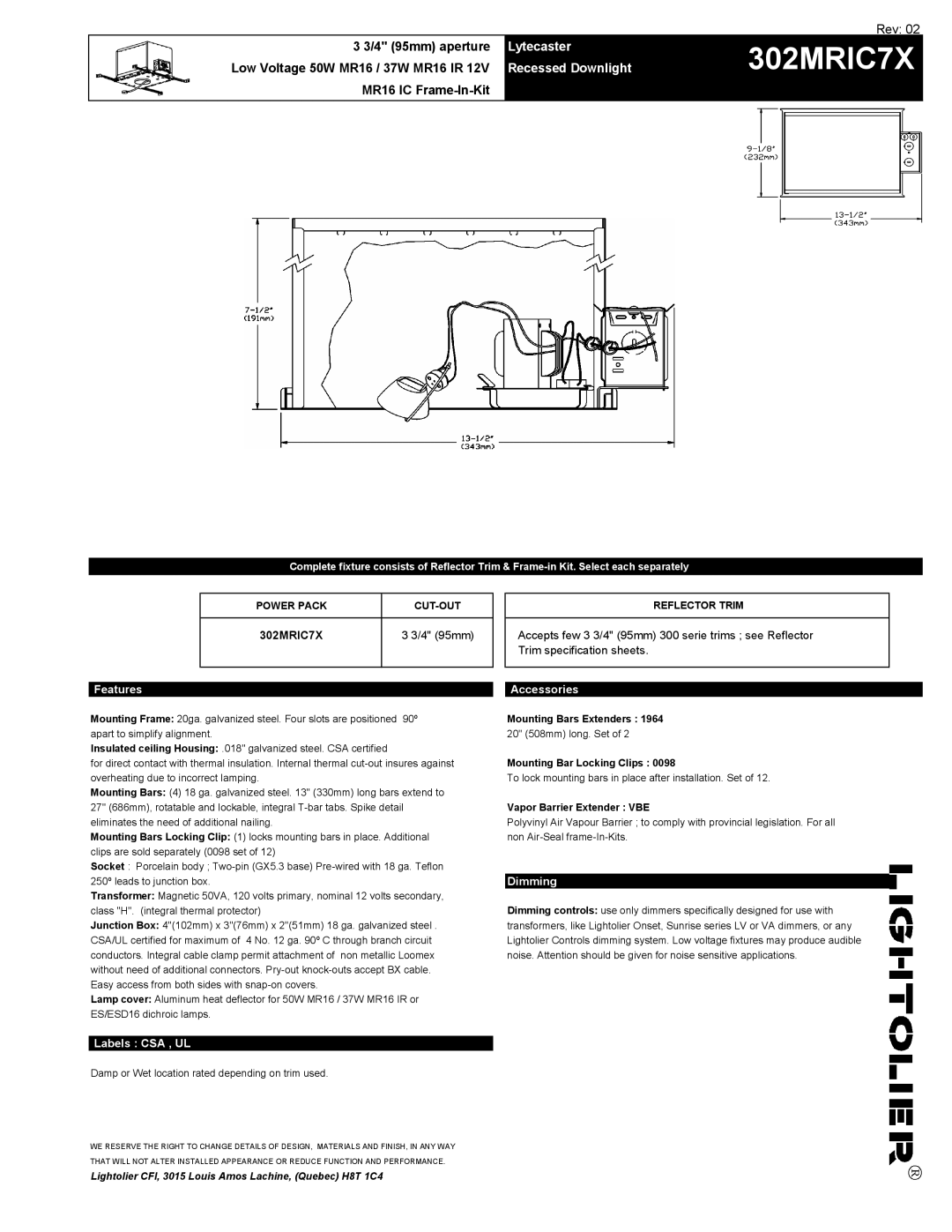

Rev: 02

3 3/4" (95mm) aperture

Lytecaster

302MRIC7X



Low Voltage 50W MR16 / 37W MR16 IR 12V

Recessed Downlight



MR16 IC Frame-In-Kit







Complete fixture consists of Reflector Trim & Frame-in Kit. Select each separately

POWER PACK

CUT-OUT





302MRIC7X

3 3/4" (95mm)





Features

Mounting Frame: 20ga. galvanized steel. Four slots are positioned 90º apart to simplify alignment.

Insulated ceiling Housing: .018" galvanized steel. CSA certified

for direct contact with thermal insulation. Internal thermal cut-out insures against overheating due to incorrect lamping.

Mounting Bars: (4) 18 ga. galvanized steel. 13" (330mm) long bars extend to 27" (686mm), rotatable and lockable, integral T-bar tabs. Spike detail eliminates the need of additional nailing.

Mounting Bars Locking Clip: (1) locks mounting bars in place. Additional clips are sold separately (0098 set of 12)

Socket : Porcelain body ; Two-pin (GX5.3 base) Pre-wired with 18 ga. Teflon 250º leads to junction box.

Transformer: Magnetic 50VA, 120 volts primary, nominal 12 volts secondary, class "H". (integral thermal protector)

Junction Box: 4"(102mm) x 3"(76mm) x 2"(51mm) 18 ga. galvanized steel . CSA/UL certified for maximum of 4 No. 12 ga. 90º C through branch circuit conductors. Integral cable clamp permit attachment of non metallic Loomex without need of additional connectors. Pry-out knock-outs accept BX cable. Easy access from both sides with snap-on covers.

Lamp cover: Aluminum heat deflector for 50W MR16 / 37W MR16 IR or ES/ESD16 dichroic lamps.

REFLECTOR TRIM

Accepts few 3 3/4" (95mm) 300 serie trims ; see Reflector Trim specification sheets.

Accessories

Mounting Bars Extenders : 1964 20" (508mm) long. Set of 2

Mounting Bar Locking Clips : 0098

To lock mounting bars in place after installation. Set of 12.

Vapor Barrier Extender : VBE

Polyvinyl Air Vapour Barrier ; to comply with provincial legislation. For all non Air-Seal frame-In-Kits.

Dimming

Dimming controls: use only dimmers specifically designed for use with transformers, like Lightolier Onset, Sunrise series LV or VA dimmers, or any Lightolier Controls dimming system. Low voltage fixtures may produce audible noise. Attention should be given for noise sensitive applications.

Labels : CSA , UL

Damp or Wet location rated depending on trim used.

WE RESERVE THE RIGHT TO CHANGE DETAILS OF DESIGN, MATERIALS AND FINISH, IN ANY WAY THAT WILL NOT ALTER INSTALLED APPEARANCE OR REDUCE FUNCTION AND PERFORMANCE.

Lightolier CFI, 3015 Louis Amos Lachine, (Quebec) H8T 1C4

Page 1 Page 1
Page 1
Image 1
Lightolier 302MRIC7X specifications Lytecaster, Recessed Downlight
Page 1 Page 1

302MRIC7X specifications
