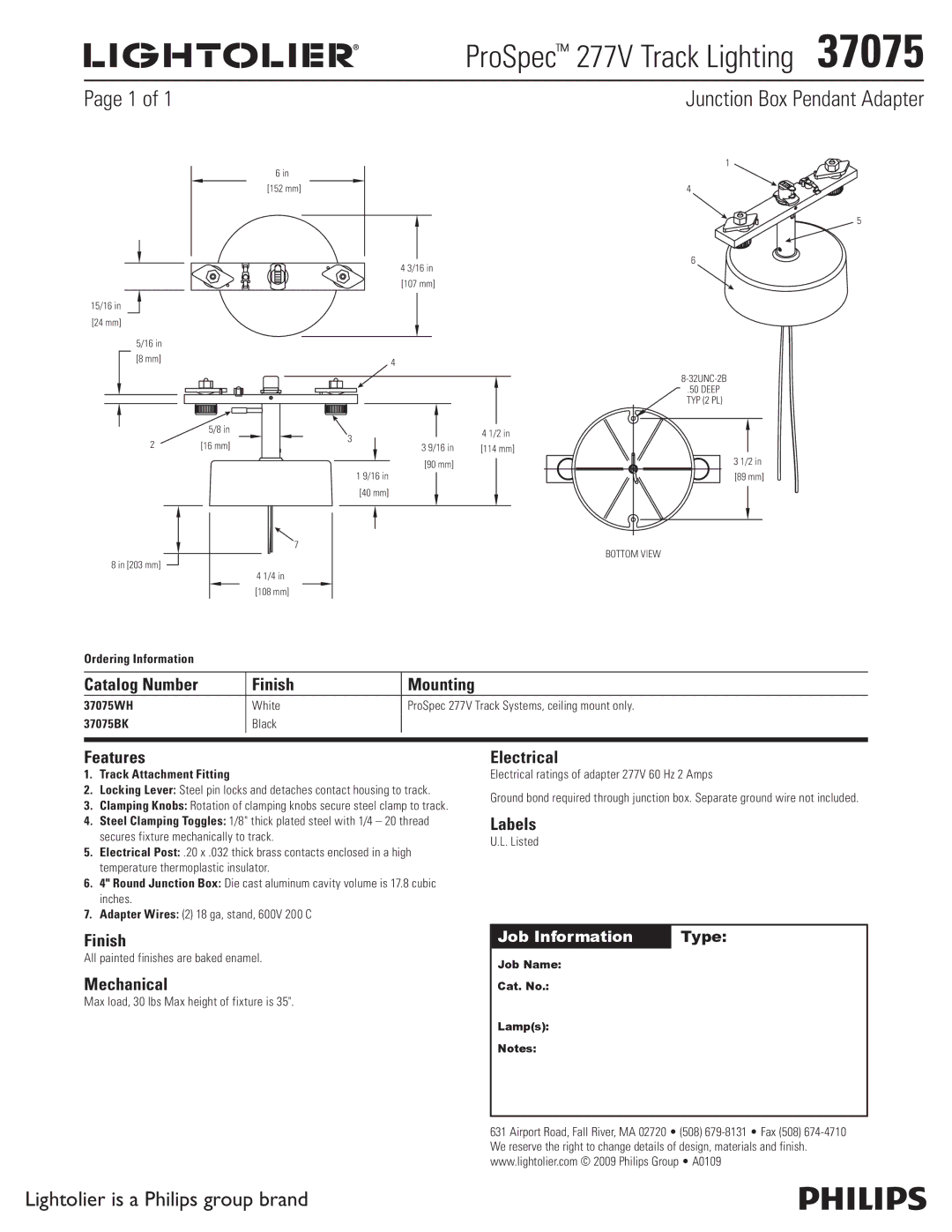

| ProSpec™ 277V Track Lighting 37075 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| |||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| ||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| |||||
Page 1 of 1 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| Junction Box Pendant Adapter | |||||||
6 in
[152 mm]
1
4
4 3/16 in
5
6
15/16 in [24 mm]
5/16 in [8 mm]
| 5/8 in |
2 | [16 mm] |
7
8 in [203 mm]
4 1/4 in
[108 mm]
[107 mm]
4
| |
| .50 DEEP |
| TYP (2 PL) |
3 | 4 1/2 in |
| |
3 9/16 in | [114 mm] |
[90 mm] | 3 1/2 in |
| |
1 9/16 in | [89 mm] |
[40 mm] |
|
| BOTTOM VIEW |
Catalog Number | Finish | Mounting |
| 37075WH | White | ProSpec 277V Track Systems, ceiling mount only. |
| 37075BK | Black |
|
|
|
|
Features
1.Track Attachment Fitting2.Locking Lever: Steel pin locks and detaches contact housing to track.
3.Clamping Knobs: Rotation of clamping knobs secure steel clamp to track.
4.Steel Clamping Toggles: 1/8" thick plated steel with 1/4 – 20 thread secures fixture mechanically to track.
5.Electrical Post: .20 x .032 thick brass contacts enclosed in a high temperature thermoplastic insulator.
6.4" Round Junction Box: Die cast aluminum cavity volume is 17.8 cubic inches.
7.Adapter Wires: (2) 18 ga, stand, 600V 200 C
Electrical
Electrical ratings of adapter 277V 60 Hz 2 Amps
Ground bond required through junction box. Separate ground wire not included.
Labels
U.L. Listed
Finish
All painted finishes are baked enamel.
Mechanical
Max load, 30 lbs Max height of fixture is 35".
Lightolier is a Philips group brand
Job Information | Type: |
|
|
Job Name:
Cat. No.:
Lamp(s):
Notes:
631 Airport Road, Fall River, MA 02720 • (508)
