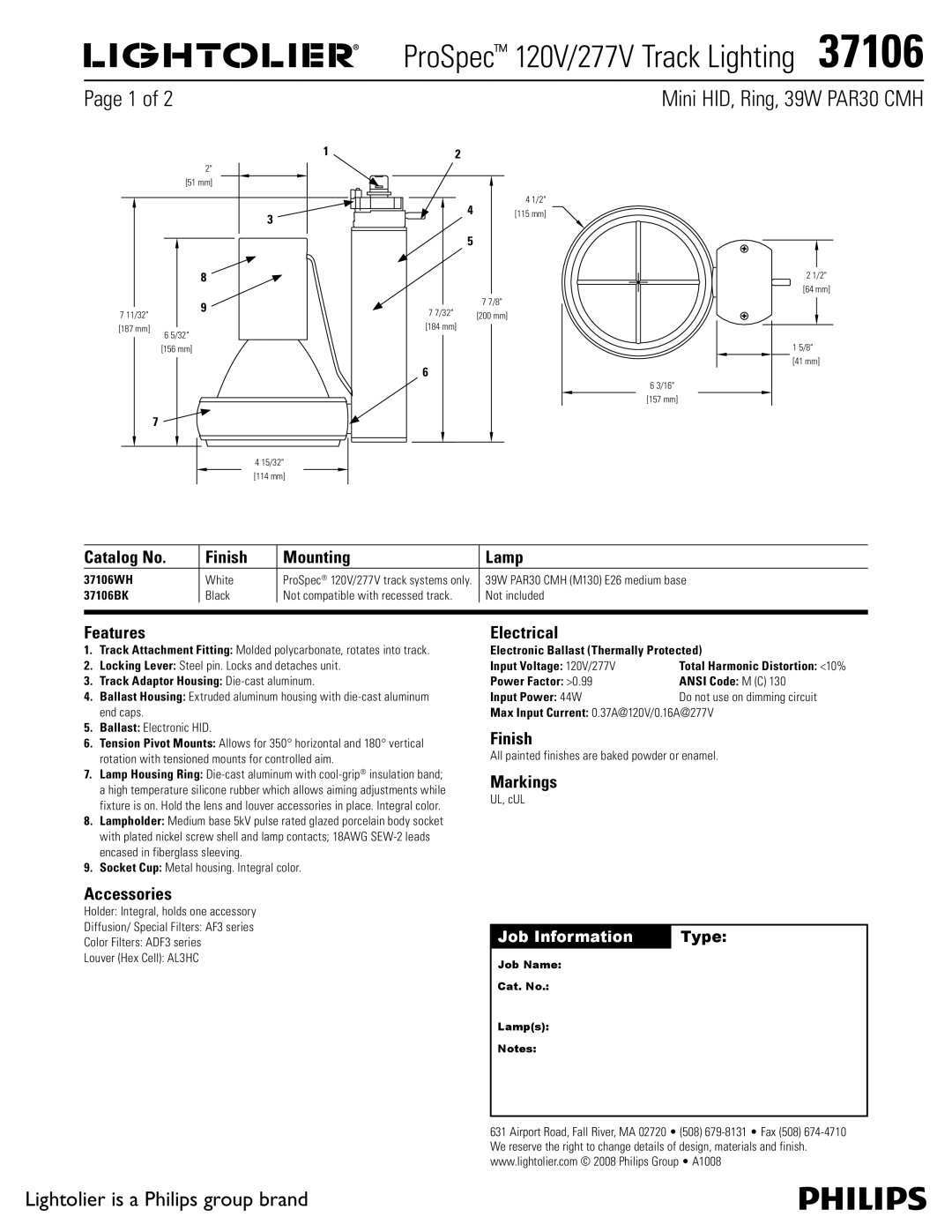

ProSpec120V/277V Track Lighting  37106































































































































































Page 1 of 2































Mini HID, Ring, 39W PAR30 CMH

2" [51 mm]

3





8

7 11/32"



9





[187 mm]





6 5/32"





[156 mm]

7

12

4

4 1/2"

[115 mm]

5







7 7/32"

7 7/8"

[200 mm]

[184 mm]



6

63/16" [157 mm]

21/2" [64 mm]

15/8"

[41 mm]

415/32" [114 mm]

Catalog No.

Finish

Mounting

Lamp

37106WH

White

ProSpec® 120V/277V track systems only.

39W PAR30 CMH (M130) E26 medium base

37106BK

Black

Not compatible with recessed track.

Not included









Features

1.Track Attachment Fitting: Molded polycarbonate, rotates into track.

2.Locking Lever: Steel pin. Locks and detaches unit.

3.Track Adaptor Housing: Die-cast aluminum.

4.Ballast Housing: Extruded aluminum housing with die-cast aluminum end caps.

5.Ballast: Electronic HID.

6.Tension Pivot Mounts: Allows for 350° horizontal and 180° vertical rotation with tensioned mounts for controlled aim.

7.Lamp Housing Ring: Die-cast aluminum with cool-grip®insulation band; a high temperature silicone rubber which allows aiming adjustments while fixture is on. Hold the lens and louver accessories in place. Integral color.

8.Lampholder: Medium base 5kV pulse rated glazed porcelain body socket with plated nickel screw shell and lamp contacts; 18AWG SEW-2 leads encased in fiberglass sleeving.

9.Socket Cup: Metal housing. Integral color.

Accessories

Holder: Integral, holds one accessory

Diffusion/ Special Filters: AF3 series

Color Filters: ADF3 series

Louver (Hex Cell): AL3HC

Lightolier is a Philips group brand

Electrical

Electronic Ballast (Thermally Protected)

Input Voltage: 120V/277V

Total Harmonic Distortion: <10%

Power Factor: >0.99

ANSI Code: M (C) 130

Input Power: 44W

Do not use on dimming circuit

Max Input Current: 0.37A@120V/0.16A@277V

Finish

All painted finishes are baked powder or enamel.

Markings

UL, cUL

Job Information

Type:





Job Name:

Cat. No.:

Lamp(s):

Notes:

631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710 We reserve the right to change details of design, materials and finish. www.lightolier.com © 2008 Philips Group • A1008
