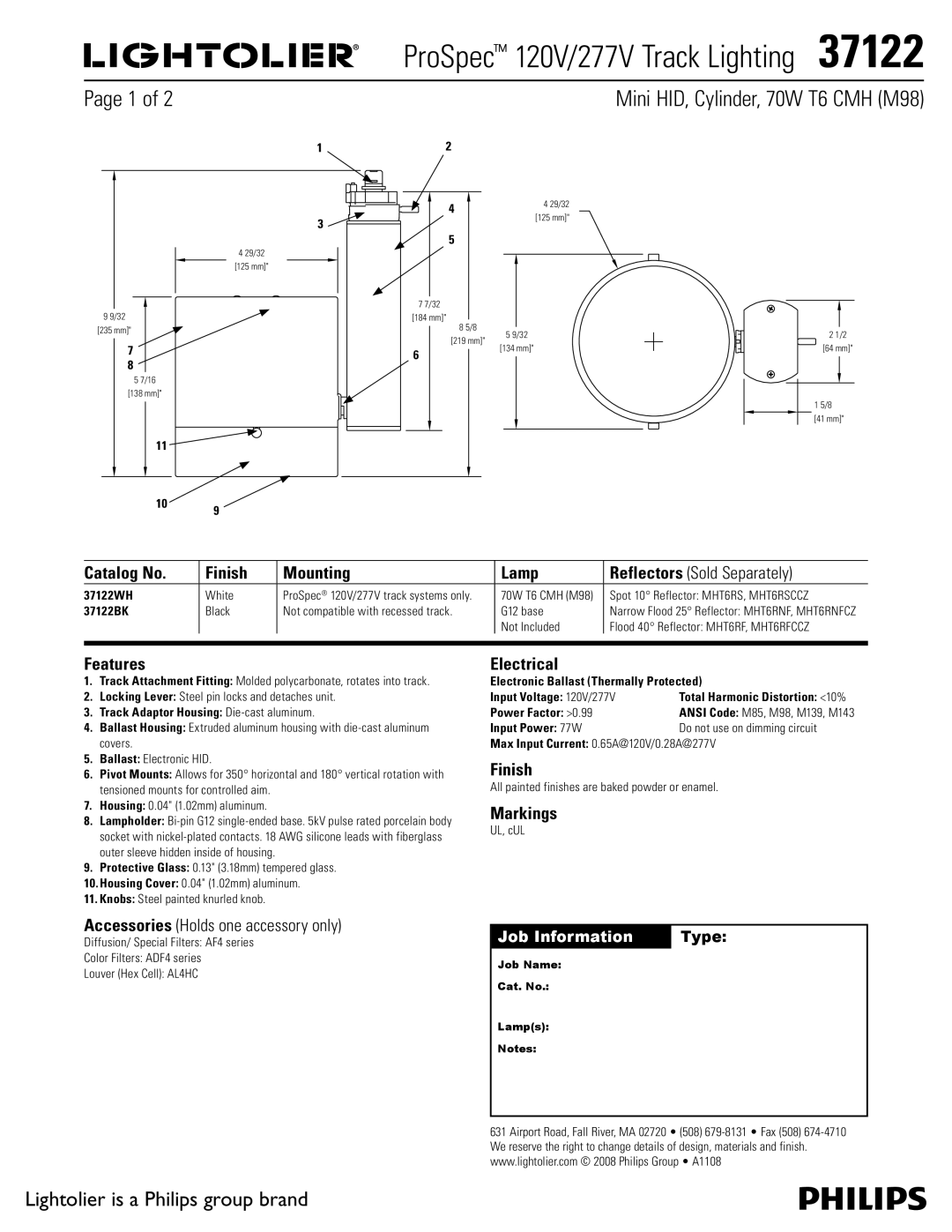

ProSpec120V/277V Track Lighting  37122































































































































































Page 1 of 2































Mini HID, Cylinder, 70W T6 CMH (M98)

1

2





4

4 29/32



[125 mm]"

3









5



4 29/32





[125 mm]"







7 7/32



9 9/32

[184 mm]"



[235 mm]"

8 5/8

5 9/32

[219 mm]"



7

[134 mm]"

6

8







57/16

[138 mm]"

11

21/2

[64 mm]"

15/8 [41 mm]"

10

9



Catalog No.

Finish

Mounting

Lamp

Reflectors (Sold Separately)

37122WH

White

ProSpec® 120V/277V track systems only.

70W T6 CMH (M98)

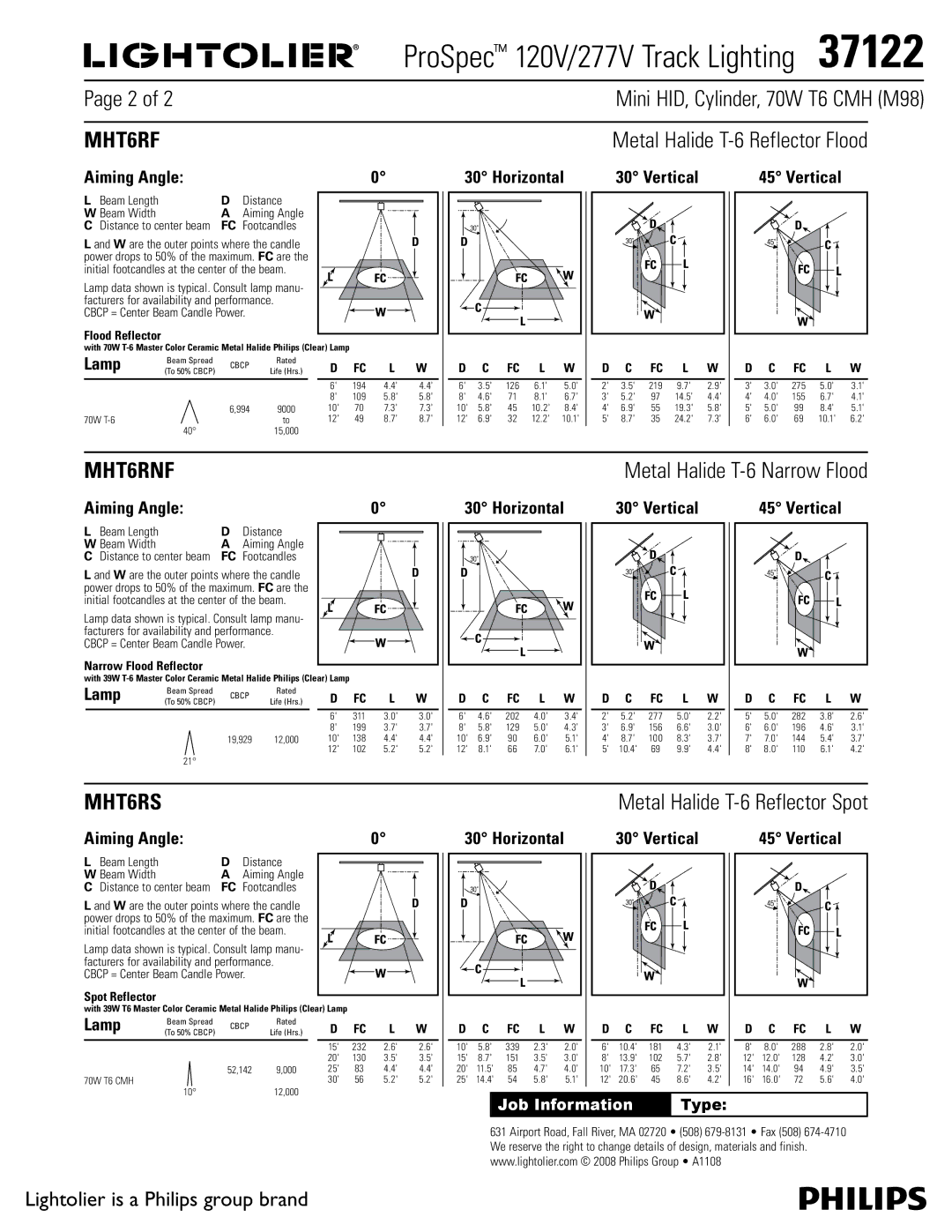

Spot 10° Reflector: MHT6RS, MHT6RSCCZ

37122BK

Black

Not compatible with recessed track.

G12 base

Narrow Flood 25° Reflector: MHT6RNF, MHT6RNFCZ







Not Included

Flood 40° Reflector: MHT6RF, MHT6RFCCZ











Features

1.Track Attachment Fitting: Molded polycarbonate, rotates into track.

2.Locking Lever: Steel pin locks and detaches unit.

3.Track Adaptor Housing: Die-cast aluminum.

4.Ballast Housing: Extruded aluminum housing with die-cast aluminum covers.

5.Ballast: Electronic HID.

6.Pivot Mounts: Allows for 350° horizontal and 180° vertical rotation with tensioned mounts for controlled aim.

7.Housing: 0.04" (1.02mm) aluminum.

8.Lampholder: Bi-pin G12 single-ended base. 5kV pulse rated porcelain body socket with nickel-plated contacts. 18 AWG silicone leads with fiberglass outer sleeve hidden inside of housing.

9.Protective Glass: 0.13" (3.18mm) tempered glass.

10.Housing Cover: 0.04" (1.02mm) aluminum.

11.Knobs: Steel painted knurled knob.

Accessories (Holds one accessory only)

Diffusion/ Special Filters: AF4 series

Color Filters: ADF4 series

Louver (Hex Cell): AL4HC

Electrical

Electronic Ballast (Thermally Protected)

Input Voltage: 120V/277V

Total Harmonic Distortion: <10%

Power Factor: >0.99

ANSI Code: M85, M98, M139, M143

Input Power: 77W

Do not use on dimming circuit

Max Input Current: 0.65A@120V/0.28A@277V

Finish

All painted finishes are baked powder or enamel.

Markings

UL, cUL

Job Information

Type:





Job Name:

Cat. No.:

Lamp(s):

Notes:

631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710 We reserve the right to change details of design, materials and finish. www.lightolier.com © 2008 Philips Group • A1108

Lightolier is a Philips group brand
