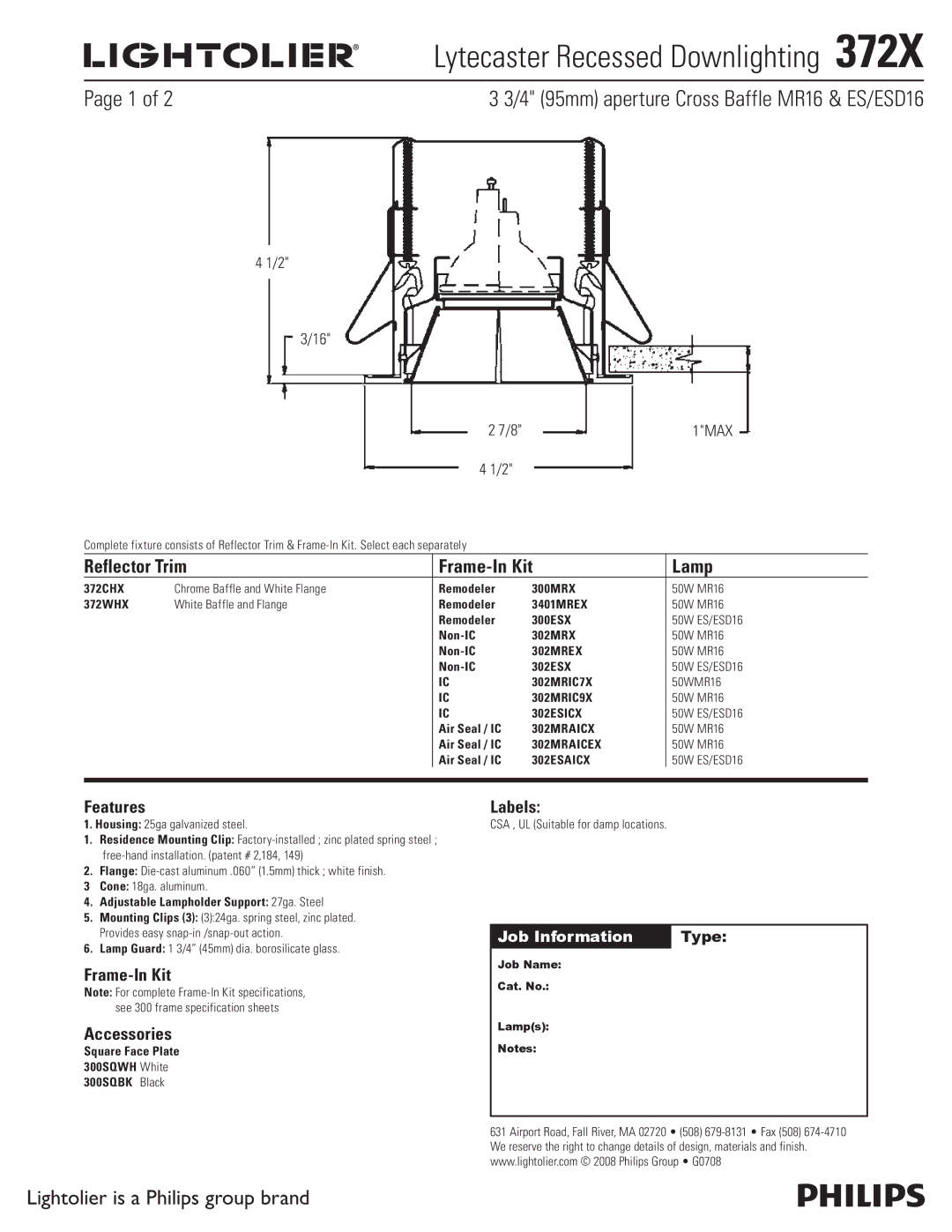

Lightolier 372X specifications Lytecaster Recessed Downlighting, Page 1 of, Job Information, Type

	Lytecaster Recessed Downlighting  372X
Page 1 of 2	3 3/4" (95mm) aperture Cross Baffle MR16 & ES/ESD16

4 1/2"

3/16"

2 7/8" 1"MAX

4 1/2"

Complete fixture consists of Reflector Trim & Frame-In Kit. Select each separately

Reflector Trim		Frame-In Kit		Lamp
372CHX	Chrome Baffle and White Flange	Remodeler	300MRX	50W MR16
372WHX	White Baffle and Flange	Remodeler	3401MREX	50W MR16
		Remodeler	300ESX	50W ES/ESD16
		Non-IC	302MRX	50W MR16
		Non-IC	302MREX	50W MR16
		Non-IC	302ESX	50W ES/ESD16
		IC	302MRIC7X	50WMR16
		IC	302MRIC9X	50W MR16
		IC	302ESICX	50W ES/ESD16
		Air Seal / IC	302MRAICX	50W MR16
		Air Seal / IC	302MRAICEX	50W MR16
		Air Seal / IC	302ESAICX	50W ES/ESD16

Features

1.Housing: 25ga galvanized steel.

1.Residence Mounting Clip: Factory-installed ; zinc plated spring steel ; free-hand installation. (patent # 2,184, 149)

2.Flange: Die-cast aluminum .060” (1.5mm) thick ; white finish.

3Cone: 18ga. aluminum.

4.Adjustable Lampholder Support: 27ga. Steel

5.Mounting Clips (3): (3):24ga. spring steel, zinc plated. Provides easy snap-in /snap-out action.

6.Lamp Guard: 1 3/4” (45mm) dia. borosilicate glass.

Frame-In Kit

Note: For complete Frame-In Kit specifications, see 300 frame specification sheets

Accessories

Square Face Plate 300SQWH White 300SQBK Black

Labels:

CSA , UL (Suitable for damp locations.

Job Information Type:

Job Name:

Cat. No.:

Lamp(s):

Notes:

631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710 We reserve the right to change details of design, materials and finish. www.lightolier.com © 2008 Philips Group • G0708

Lightolier is a Philips group brand
