Lightolier specifications Lytecaster Recessed Downlighting374X, Page 1 of, Job Information

	Lytecaster Recessed Downlighting  374X

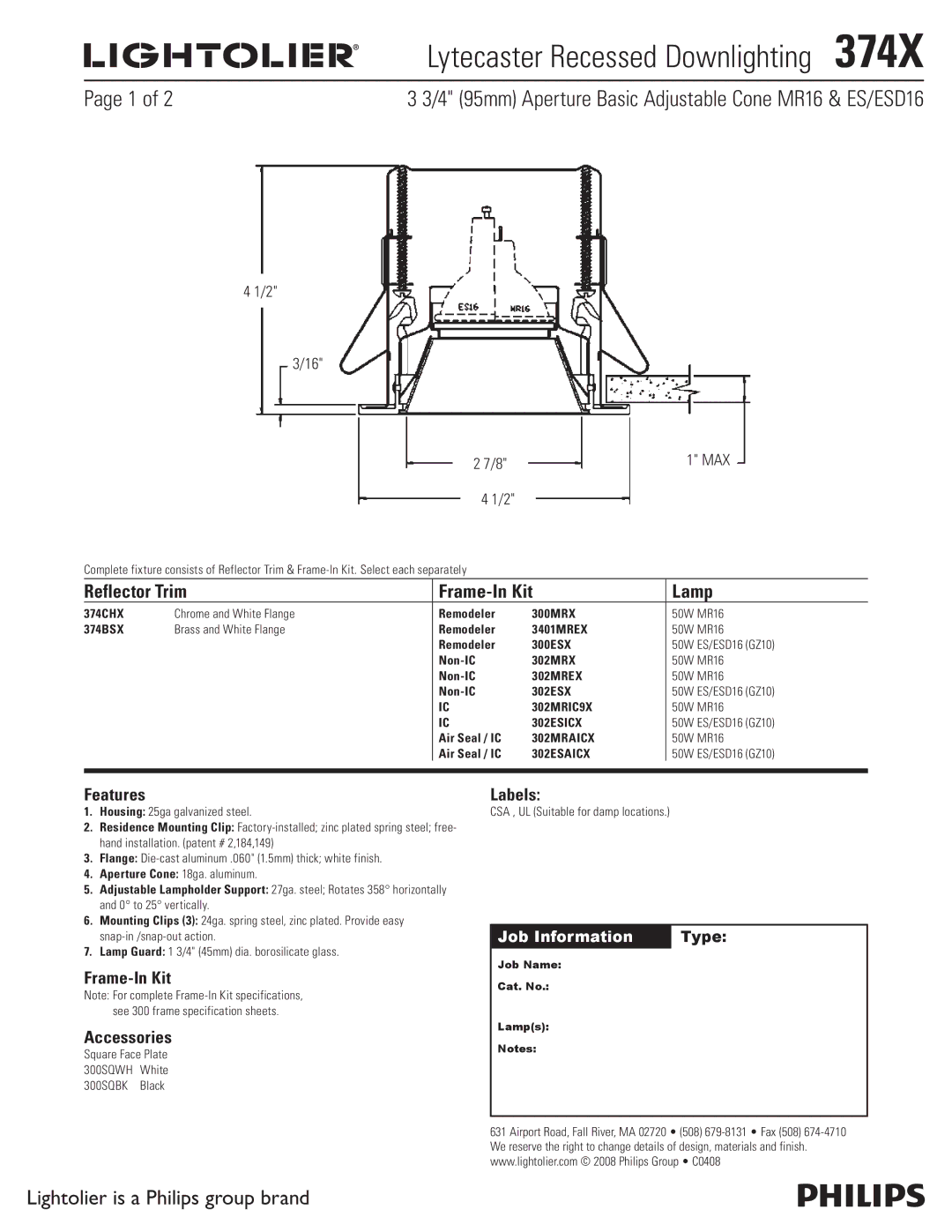

Page 1 of 2	3 3/4" (95mm) Aperture Basic Adjustable Cone MR16 & ES/ESD16

		4 1/2"
			3/16"
									1" MAX
					2 7/8"
						4 1/2"
Complete fixture consists of Reflector Trim & Frame-In Kit. Select each separately
Reflector Trim				Frame-In Kit				Lamp
374CHX	Chrome and White Flange			Remodeler			300MRX	50W		MR16
374BSX	Brass and White Flange			Remodeler			3401MREX	50W		MR16
				Remodeler			300ESX	50W		ES/ESD16 (GZ10)
				Non-IC			302MRX	50W MR16
				Non-IC			302MREX	50W MR16
				Non-IC			302ESX	50W		ES/ESD16 (GZ10)
				IC			302MRIC9X	50W MR16
				IC			302ESICX	50W		ES/ESD16 (GZ10)
				Air Seal / IC			302MRAICX	50W MR16
				Air Seal / IC			302ESAICX	50W		ES/ESD16 (GZ10)

Features

1.Housing: 25ga galvanized steel.

2.Residence Mounting Clip: Factory-installed; zinc plated spring steel; free- hand installation. (patent # 2,184,149)

3.Flange: Die-cast aluminum .060" (1.5mm) thick; white finish.

4.Aperture Cone: 18ga. aluminum.

5.Adjustable Lampholder Support: 27ga. steel; Rotates 358° horizontally and 0° to 25° vertically.

6.Mounting Clips (3): 24ga. spring steel, zinc plated. Provide easy snap-in /snap-out action.

7.Lamp Guard: 1 3/4" (45mm) dia. borosilicate glass.

Frame-In Kit

Note: For complete Frame-In Kit specifications, see 300 frame specification sheets.

Accessories

Square Face Plate 300SQWH White 300SQBK Black

Labels:

CSA , UL (Suitable for damp locations.)

Job Information Type:

Job Name:

Cat. No.:

Lamp(s):

Notes:

631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710 We reserve the right to change details of design, materials and finish. www.lightolier.com © 2008 Philips Group • C0408

Lightolier is a Philips group brand
