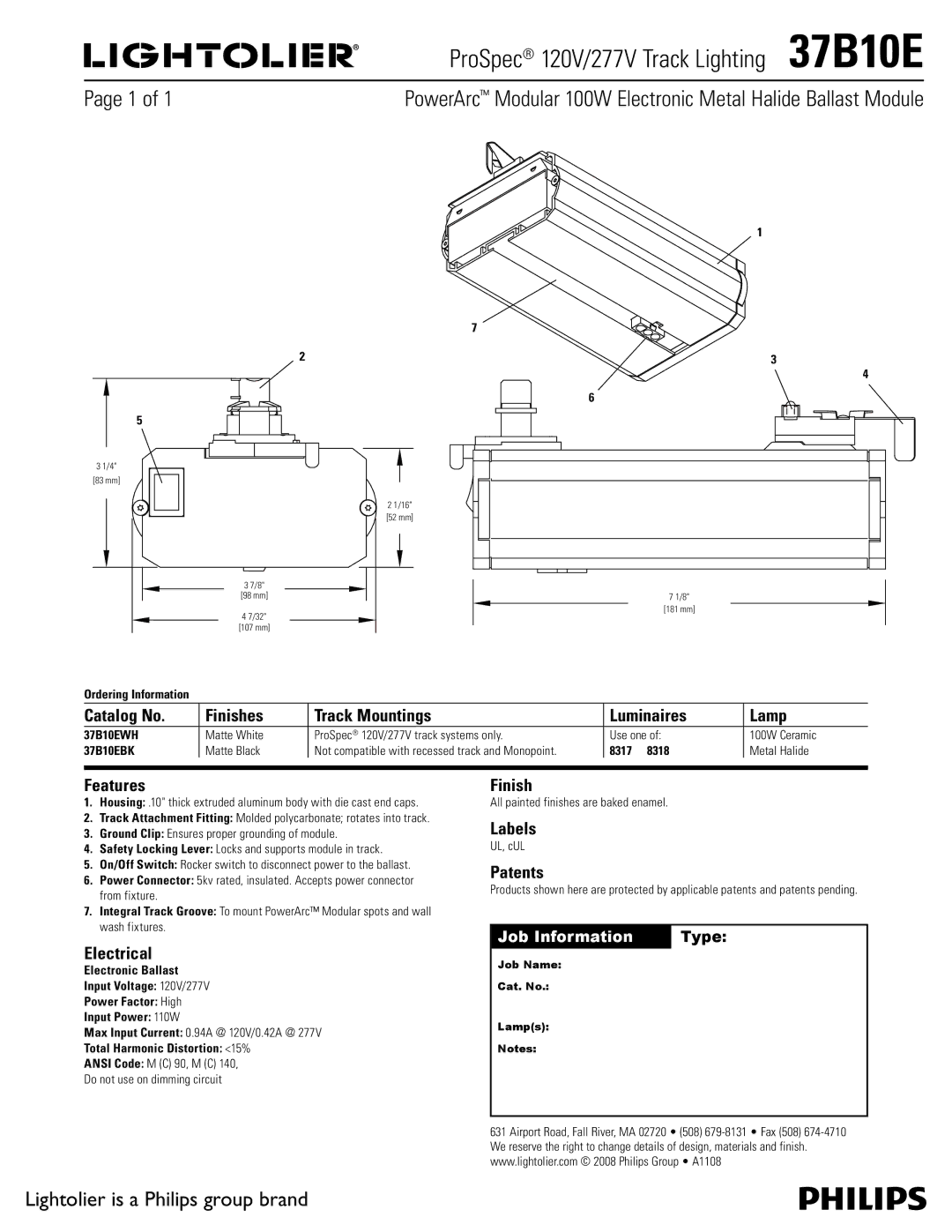

| ProSpec® 120V/277V Track Lighting 37B10E |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| |||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| ||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| |||||
Page 1 of 1 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| PowerArc™ Modular 100W Electronic Metal Halide Ballast Module | |||||||
2
5
31/4" [83 mm]
3 7/8"
[98 mm]
4 7/32"
[107 mm]
1
7
3
4
6
21/16" [52 mm]
7 1/8"
[181 mm]
Ordering Information
Catalog No. | Finishes | Track Mountings | Luminaires | Lamp |
37B10EWH | Matte White | ProSpec® 120V/277V track systems only. | Use one of: | 100W Ceramic |
37B10EBK | Matte Black | Not compatible with recessed track and Monopoint. | 8317 8318 | Metal Halide |
|
|
|
|
|
Features
1.Housing: .10" thick extruded aluminum body with die cast end caps.
2.Track Attachment Fitting: Molded polycarbonate; rotates into track.
3.Ground Clip: Ensures proper grounding of module.
4.Safety Locking Lever: Locks and supports module in track.
5.On/Off Switch: Rocker switch to disconnect power to the ballast.
6.Power Connector: 5kv rated, insulated. Accepts power connector from fixture.
7.Integral Track Groove: To mount PowerArc™ Modular spots and wall wash fixtures.
Electrical
Electronic Ballast
Input Voltage: 120V/277V
Power Factor: High
Input Power: 110W
Max Input Current: 0.94A @ 120V/0.42A @ 277V
Total Harmonic Distortion: <15%
ANSI Code: M (C) 90, M (C) 140,
Do not use on dimming circuit
Finish
All painted finishes are baked enamel.
Labels
UL, cUL
Patents
Products shown here are protected by applicable patents and patents pending.
Job Information | Type: |
|
|
Job Name:
Cat. No.:
Lamp(s):
Notes:
631 Airport Road, Fall River, MA 02720 • (508)
