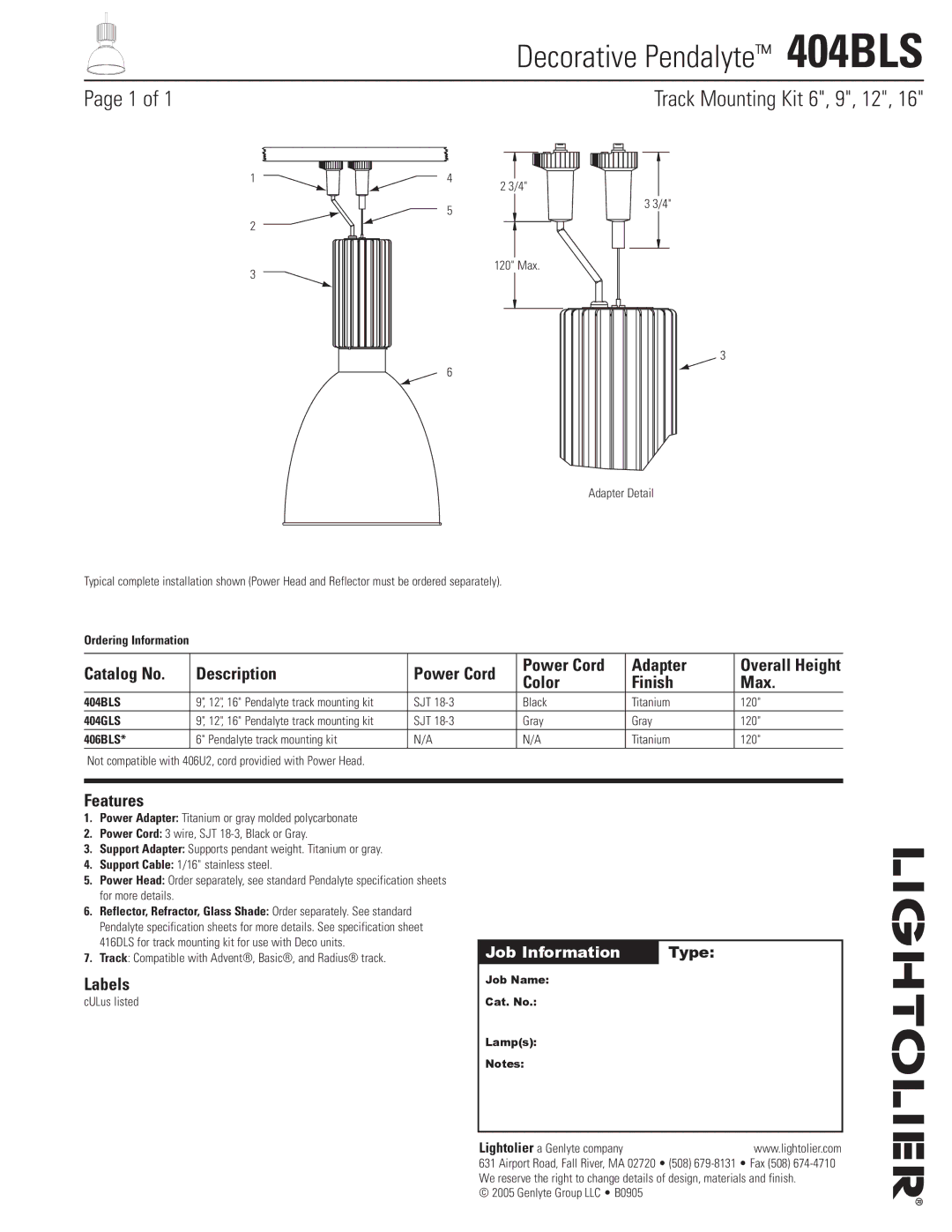

Lightolier specifications Decorative Pendalyte 404BLS, Page of, Track Mounting Kit, Catalog No

	Decorative Pendalyte™  404BLS
Page of 1	Track Mounting Kit 6", 9", 12", 16"

1 4 2 3/4"

	5	3 3/4"
2
3		120" Max.

3

6

Adapter Detail

Typical complete installation shown (Power Head and Reflector must be ordered separately).

Ordering Information

Catalog No.	Description	Power Cord	Power Cord	Adapter	Overall Height
			Color	Finish	Max.
404BLS	9", 12", 16" Pendalyte track mounting kit	SJT 18-3	Black	Titanium	120"
404GLS	9", 12", 16" Pendalyte track mounting kit	SJT 18-3	Gray	Gray	120"
406BLS*	6" Pendalyte track mounting kit	N/A	N/A	Titanium	120"

Not compatible with 406U2, cord providied with Power Head.

Features

1.Power Adapter: Titanium or gray molded polycarbonate

2.Power Cord: 3 wire, SJT 18-3, Black or Gray.

3.Support Adapter: Supports pendant weight. Titanium or gray.

4.Support Cable: 1/16" stainless steel.

5.Power Head: Order separately, see standard Pendalyte specification sheets for more details.

6.Reflector, Refractor, Glass Shade: Order separately. See standard Pendalyte specification sheets for more details. See specification sheet 416DLS for track mounting kit for use with Deco units.

7.Track: Compatible with Advent®, Basic®, and Radius® track.

Labels

cULus listed

Job Information Type:

Job Name:

Cat. No.:

Lamp(s):

Notes:

Lightolier a Genlyte companywww.lightolier.com 631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710 We reserve the right to change details of design, materials and finish.

© 2005 Genlyte Group LLC • B0905
