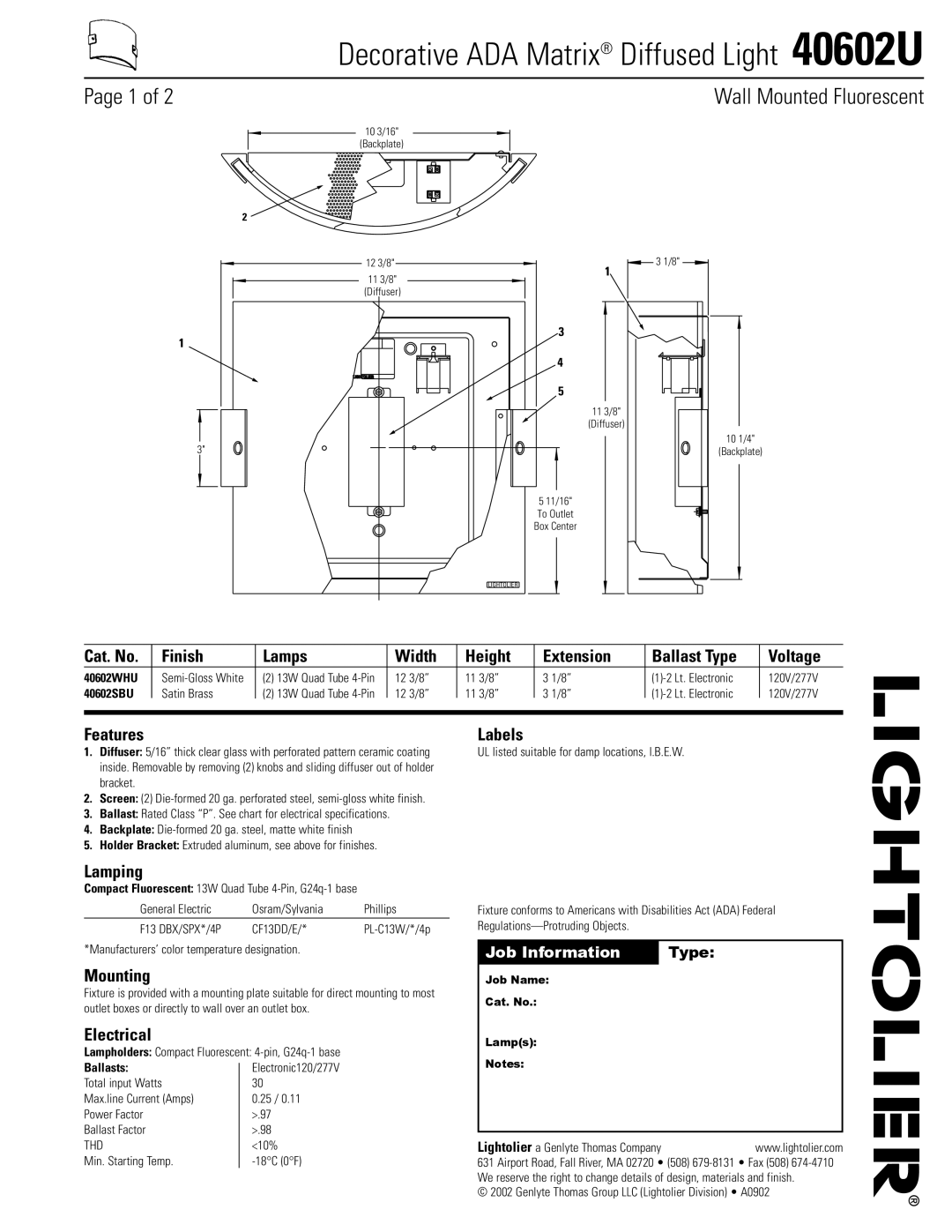

Lightolier specifications Decorative ADA Matrix Diffused Light 40602U, Page 1 of, Cat. No

Decorative ADA Matrix® Diffused Light 40602U

Page 1 of 2 Wall Mounted Fluorescent

10 3/16"

(Backplate)

2

12 3/8"

11 3/8"

(Diffuser)

1

LIGHTOLIER

3"

1

3

4

5

11 3/8"

(Diffuser)

3 1/8"

10 1/4"

(Backplate)

5 11/16" To Outlet Box Center

LIGHTOLIER

Cat. No.	Finish	Lamps	Width	Height	Extension	Ballast Type	Voltage
40602WHU	Semi-Gloss White	(2) 13W Quad Tube 4-Pin	12 3/8”	11 3/8”	3 1/8”	(1)-2 Lt. Electronic	120V/277V
40602SBU	Satin Brass	(2) 13W Quad Tube 4-Pin	12 3/8”	11 3/8”	3 1/8”	(1)-2 Lt. Electronic	120V/277V
Features				Labels

1.Diffuser: 5/16” thick clear glass with perforated pattern ceramic coating inside. Removable by removing (2) knobs and sliding diffuser out of holder bracket.

2.Screen: (2) Die-formed 20 ga. perforated steel, semi-gloss white finish.

3.Ballast: Rated Class “P”. See chart for electrical specifications.

4.Backplate: Die-formed 20 ga. steel, matte white finish

5.Holder Bracket: Extruded aluminum, see above for finishes.

UL listed suitable for damp locations, I.B.E.W.

Lamping

Compact Fluorescent: 13W Quad Tube 4-Pin, G24q-1 base

General Electric	Osram/Sylvania	Phillips
F13 DBX/SPX*/4P	CF13DD/E/*	PL-C13W/*/4p

*Manufacturers’ color temperature designation.

Mounting

Fixture is provided with a mounting plate suitable for direct mounting to most outlet boxes or directly to wall over an outlet box.

Electrical

Lampholders: Compact Fluorescent: 4-pin, G24q-1 base

Ballasts:	Electronic120/277V
Total input Watts	30
Max.line Current (Amps)	0.25 / 0.11
Power Factor	>.97
Ballast Factor	>.98
THD	<10%
Min. Starting Temp.	-18°C (0°F)

Fixture conforms to Americans with Disabilities Act (ADA) Federal Regulations—Protruding Objects.

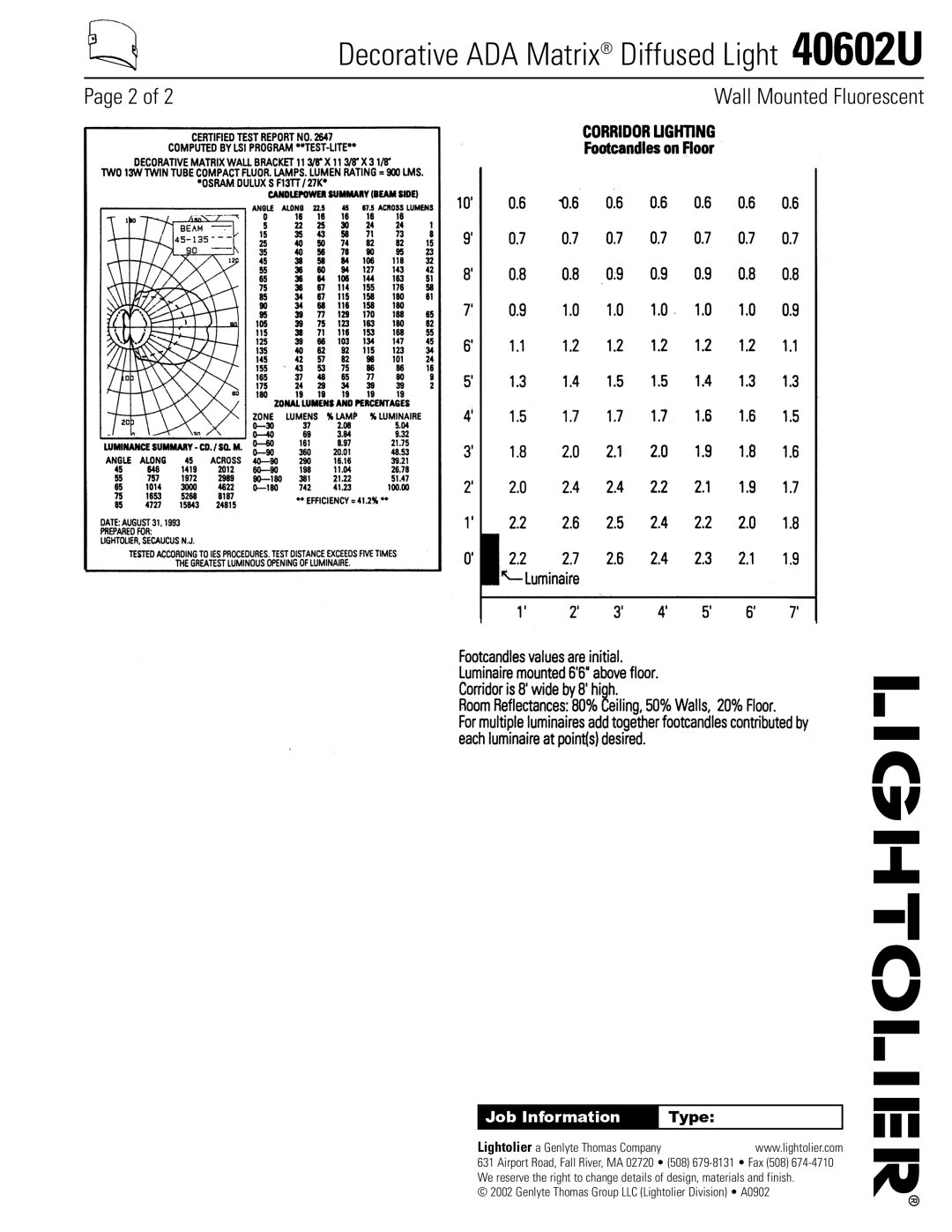

Job Information Type:

Job Name:

Cat. No.:

Lamp(s): Notes:

Lightolier a Genlyte Thomas Companywww.lightolier.com 631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710 We reserve the right to change details of design, materials and finish.

© 2002 Genlyte Thomas Group LLC (Lightolier Division) • A0902
