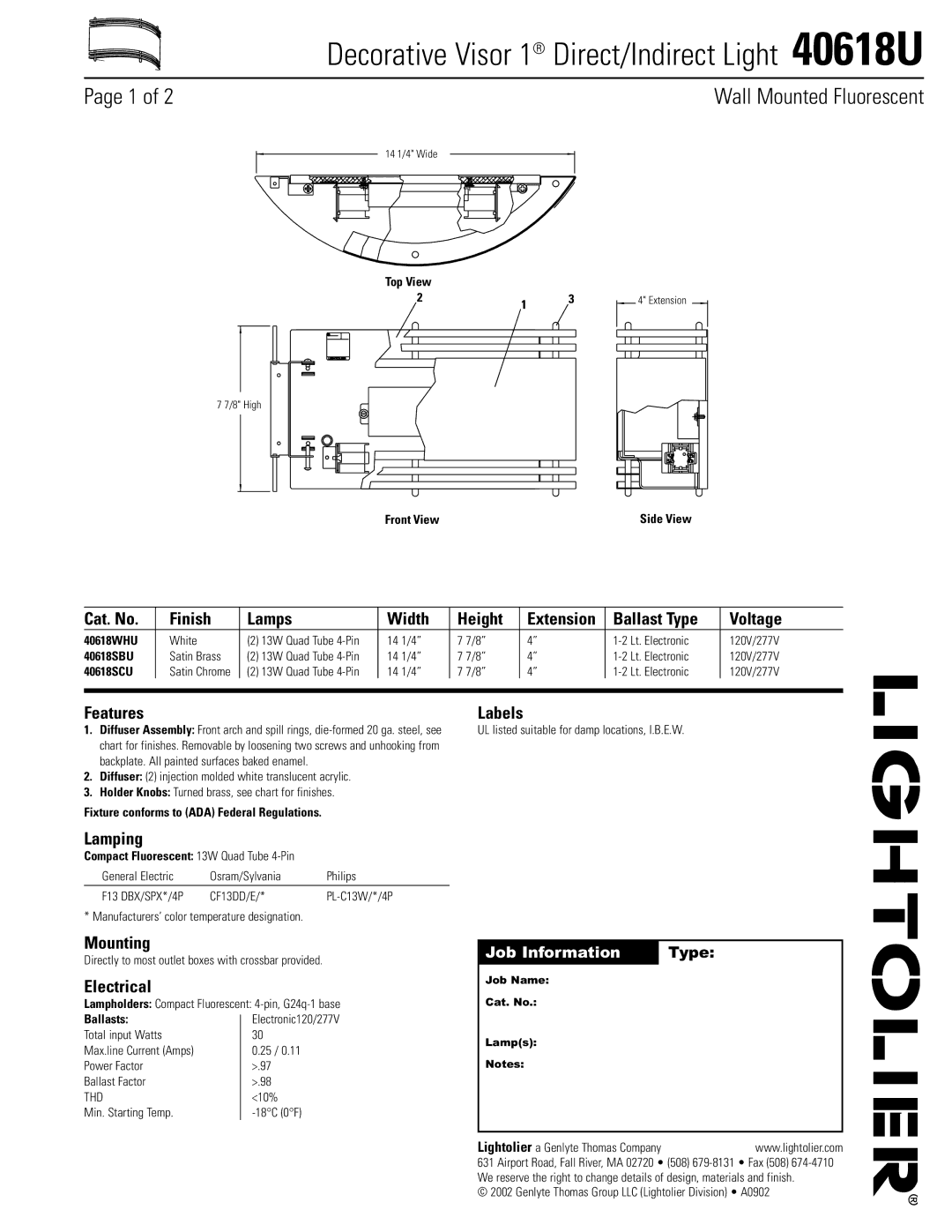

Lightolier 40618U manual Cat. No Finish Lamps Width Height, Ballast Type Voltage, Lamping

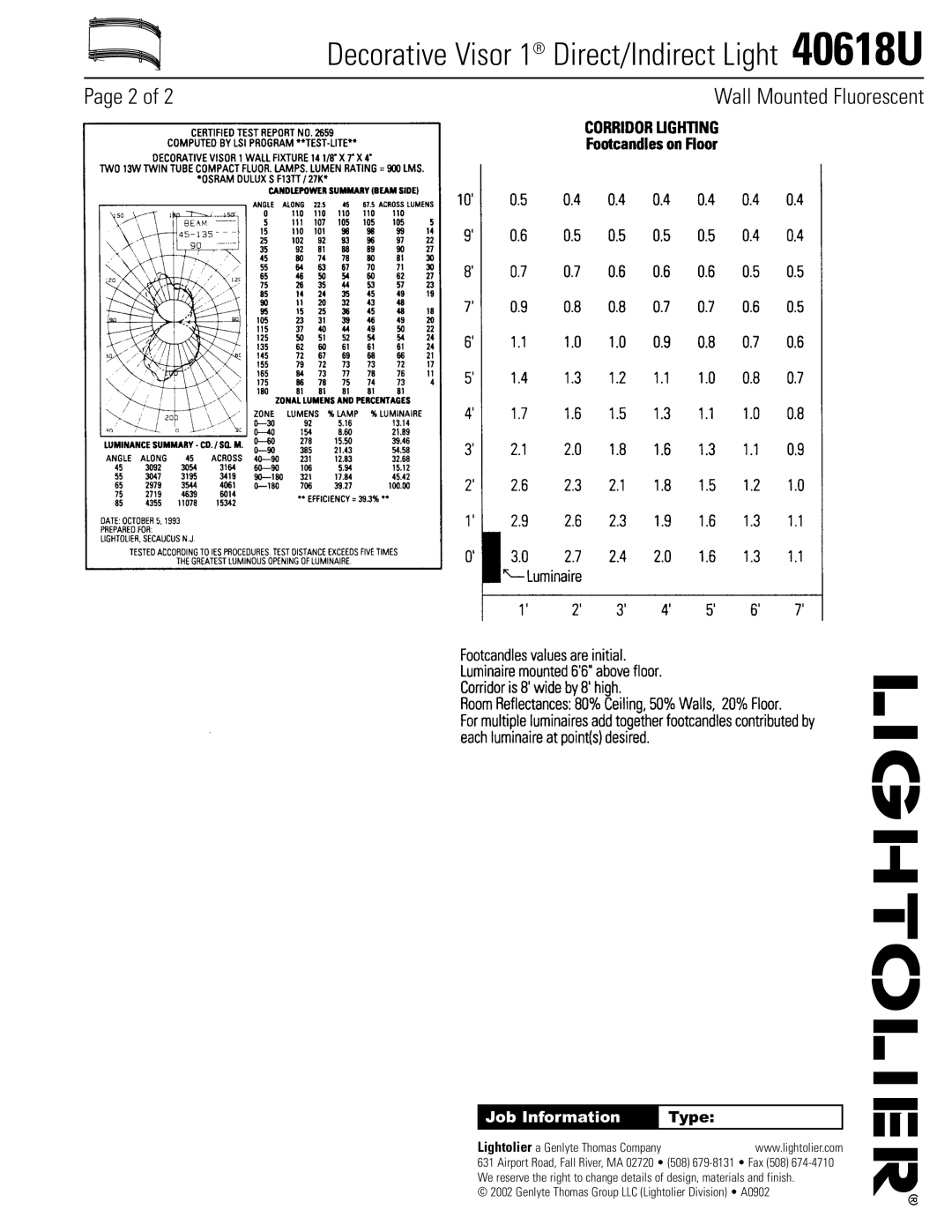

	Decorative Visor 1® Direct/Indirect Light 40618U
Page 1 of 2	Wall Mounted Fluorescent
	14 1/4" Wide

Top View

2 1 3 4" Extension

7 7/8" High

Front View Side View

Cat. No.	Finish	Lamps	Width	Height	Extension	Ballast Type	Voltage
40618WHU	White	(2) 13W Quad Tube 4-Pin	14 1/4”	7 7/8”	4”	1-2 Lt. Electronic	120V/277V
40618SBU	Satin Brass	(2) 13W Quad Tube 4-Pin	14 1/4”	7 7/8”	4”	1-2 Lt. Electronic	120V/277V
40618SCU	Satin Chrome	(2) 13W Quad Tube 4-Pin	14 1/4”	7 7/8”	4”	1-2 Lt. Electronic	120V/277V
Features				Labels

1.Diffuser Assembly: Front arch and spill rings, die-formed 20 ga. steel, see chart for finishes. Removable by loosening two screws and unhooking from backplate. All painted surfaces baked enamel.

2.Diffuser: (2) injection molded white translucent acrylic.

3.Holder Knobs: Turned brass, see chart for finishes.

Fixture conforms to (ADA) Federal Regulations.

UL listed suitable for damp locations, I.B.E.W.

Lamping

Compact Fluorescent: 13W Quad Tube 4-Pin

General Electric	Osram/Sylvania	Philips
F13 DBX/SPX*/4P	CF13DD/E/*	PL-C13W/*/4P

* Manufacturers’ color temperature designation.

Mounting

Directly to most outlet boxes with crossbar provided.

Electrical

Lampholders: Compact Fluorescent: 4-pin, G24q-1 base

Ballasts:	Electronic120/277V
Total input Watts	30
Max.line Current (Amps)	0.25 / 0.11
Power Factor	>.97
Ballast Factor	>.98
THD	<10%
Min. Starting Temp.	-18°C (0°F)
