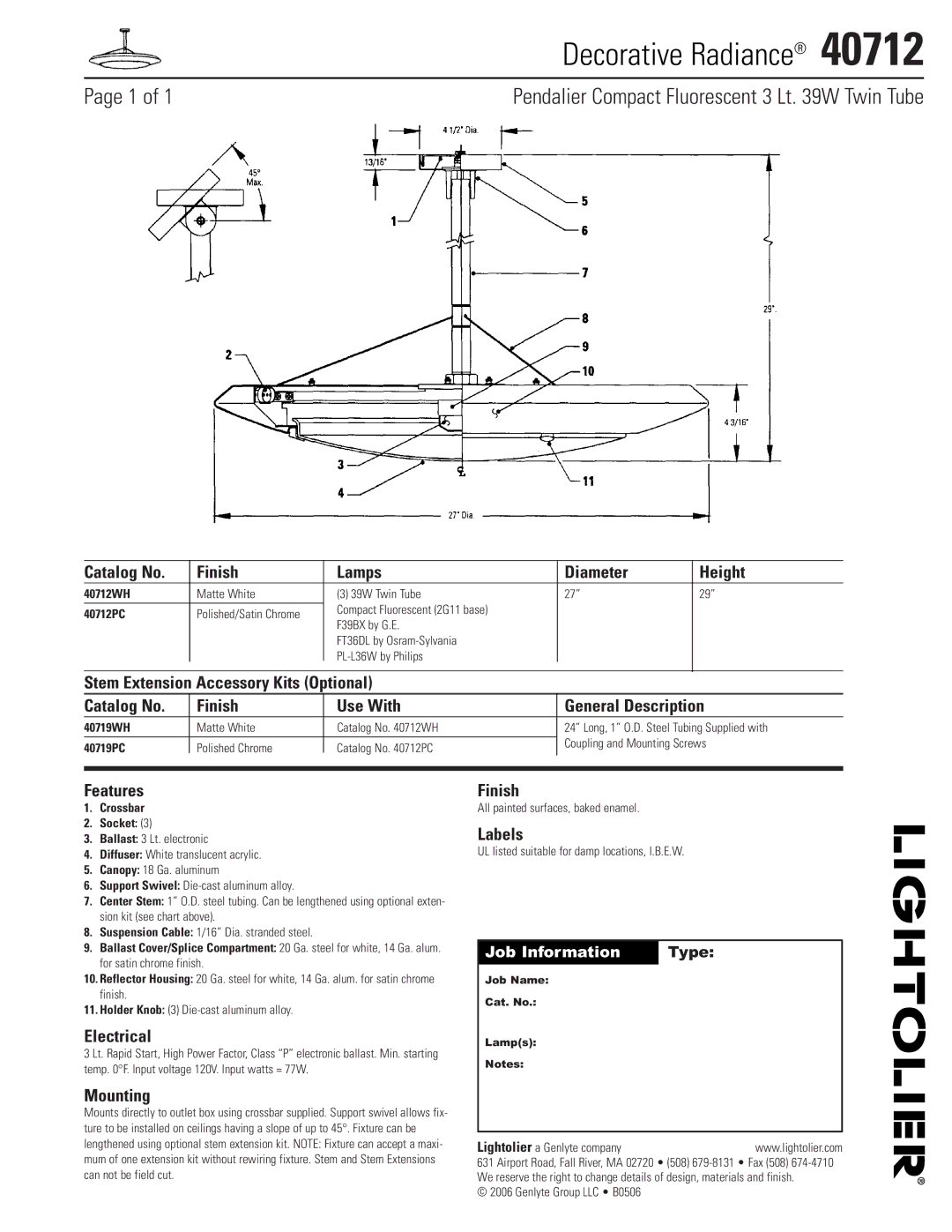

Decorative Radiance® 40712

Page 1 of 1

Pendalier Compact Fluorescent 3 Lt. 39W Twin Tube

Catalog No.

Finish

Lamps

Diameter

Height

40712WH

Matte White

(3) 39W Twin Tube

27”

29”





Compact Fluorescent (2G11 base)





40712PC

Polished/Satin Chrome





F39BX by G.E.

















FT36DL by Osram-Sylvania









PL-L36W by Philips















Stem Extension Accessory Kits (Optional)





Catalog No.

Finish

Use With

General Description

40719WH

Matte White

Catalog No. 40712WH

24” Long, 1” O.D. Steel Tubing Supplied with

40719PC

Polished Chrome

Catalog No. 40712PC

Coupling and Mounting Screws











Features

1.Crossbar

2.Socket: (3)

3.Ballast: 3 Lt. electronic

4.Diffuser: White translucent acrylic.

5.Canopy: 18 Ga. aluminum

6.Support Swivel: Die-cast aluminum alloy.

7.Center Stem: 1” O.D. steel tubing. Can be lengthened using optional exten- sion kit (see chart above).

8.Suspension Cable: 1/16” Dia. stranded steel.

9.Ballast Cover/Splice Compartment: 20 Ga. steel for white, 14 Ga. alum. for satin chrome finish.

10.Reflector Housing: 20 Ga. steel for white, 14 Ga. alum. for satin chrome finish.

11.Holder Knob: (3) Die-cast aluminum alloy.

Electrical

3 Lt. Rapid Start, High Power Factor, Class “P” electronic ballast. Min. starting temp. 0°F. Input voltage 120V. Input watts = 77W.

Mounting

Mounts directly to outlet box using crossbar supplied. Support swivel allows fix- ture to be installed on ceilings having a slope of up to 45°. Fixture can be lengthened using optional stem extension kit. NOTE: Fixture can accept a maxi- mum of one extension kit without rewiring fixture. Stem and Stem Extensions can not be field cut.

Finish

All painted surfaces, baked enamel.

Labels

UL listed suitable for damp locations, I.B.E.W.

Job Information

Type:

Job Name:

Cat. No.:

Lamp(s):

Notes:

Lightolier a Genlyte companywww.lightolier.com 631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710 We reserve the right to change details of design, materials and finish.

© 2006 Genlyte Group LLC • B0506

Page 1
Image 1
Lightolier 40712 manual Decorative Radiance

40712 specifications

The Lightolier 40712 is a prominent offering in the realm of lighting solutions, designed to meet both residential and commercial needs. Known for its blend of functionality and aesthetic appeal, this product exemplifies the manufacturer's commitment to quality and performance.

One of the main features of the Lightolier 40712 is its energy efficiency. Equipped with LED technology, it significantly reduces energy consumption compared to traditional lighting options. This not only lowers electricity bills but also promotes environmental sustainability by contributing to lower carbon emissions. The LED lights have a long lifespan, lasting up to 25,000 hours, which minimizes the need for frequent replacements and ultimately leads to cost savings over time.

Another significant characteristic of the Lightolier 40712 is its sleek and modern design. It seamlessly fits into various interior decors, making it suitable for a wide range of applications, from kitchens and living rooms to offices and retail spaces. The adaptable design allows for both surface and recessed mounting, providing flexibility in installation.

The quality of light produced by the 40712 model is exceptional. It offers a high color rendering index (CRI) which ensures that colors appear true to life. This is particularly beneficial in settings where accurate color representation is crucial, such as in art studios or retail environments. Additionally, the adjustable brightness settings allow users to create the desired ambiance, whether for task lighting or mood lighting.

Safety is paramount, and the Lightolier 40712 complies with various industry standards, ensuring reliable performance. The fixture is built with durable materials, enhancing its longevity and resilience to daily wear and tear.

Moreover, the integration of smart technology allows the Lightolier 40712 to be compatible with smart home systems. This feature enables remote control and automation, providing convenience and enhancing user experience.

In summary, the Lightolier 40712 stands out with its energy efficiency, sleek design, high-quality light output, safety compliance, and smart technology integration. Whether upgrading home lighting or outfitting a commercial space, this fixture delivers on performance, style, and sustainability, making it a valuable addition to any lighting scheme.
