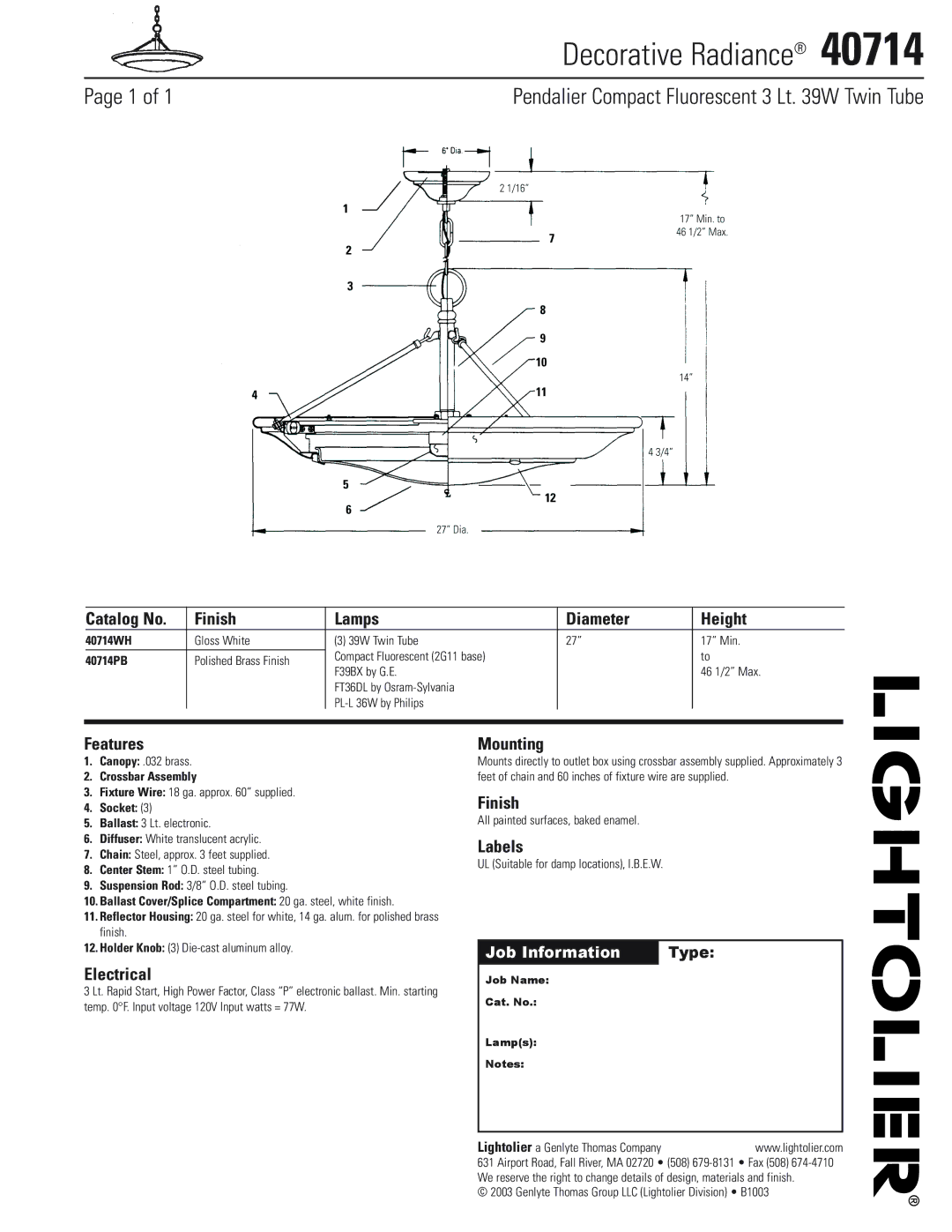

Decorative Radiance® 40714

Page 1 of 1

Pendalier Compact Fluorescent 3 Lt. 39W Twin Tube



Catalog No.

Finish

Lamps

Diameter

Height



40714WH

Gloss White

(3) 39W Twin Tube

27”

17” Min.



40714PB

Polished Brass Finish

Compact Fluorescent (2G11 base)



to



F39BX by G.E.



46 1/2” Max.















FT36DL by Osram-Sylvania













PL-L 36W by Philips





















Features

1.Canopy: .032 brass.

2.Crossbar Assembly

3.Fixture Wire: 18 ga. approx. 60” supplied.

4.Socket: (3)

5.Ballast: 3 Lt. electronic.

6.Diffuser: White translucent acrylic.

7.Chain: Steel, approx. 3 feet supplied.

8.Center Stem: 1” O.D. steel tubing.

9.Suspension Rod: 3/8” O.D. steel tubing.

10.Ballast Cover/Splice Compartment: 20 ga. steel, white finish.

11.Reflector Housing: 20 ga. steel for white, 14 ga. alum. for polished brass finish.

12.Holder Knob: (3) Die-cast aluminum alloy.

Electrical

3 Lt. Rapid Start, High Power Factor, Class “P” electronic ballast. Min. starting temp. 0°F. Input voltage 120V Input watts = 77W.

Mounting

Mounts directly to outlet box using crossbar assembly supplied. Approximately 3 feet of chain and 60 inches of fixture wire are supplied.

Finish

All painted surfaces, baked enamel.

Labels

UL (Suitable for damp locations), I.B.E.W.

Job Information

Type:

Job Name:

Cat. No.:

Lamp(s): Notes:

Lightolier a Genlyte Thomas Companywww.lightolier.com 631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710 We reserve the right to change details of design, materials and finish.

© 2003 Genlyte Thomas Group LLC (Lightolier Division) • B1003

Page 1
Image 1
Lightolier 40714 manual Decorative Radiance

40714 specifications

The Lightolier 40714 is a notable addition to the world of modern lighting design, known for its versatility, efficiency, and aesthetic appeal. This fixture stands out as a practical solution for both residential and commercial environments, combining form and function seamlessly.

One of the main features of the Lightolier 40714 is its sleek and contemporary design. The fixture is available in multiple finishes, making it easy to integrate into various interior decors, from minimalistic and modern to more traditional styles. Its clean lines and understated elegance allow it to complement existing furnishings and architecture without overwhelming the space.

In terms of technology, the Lightolier 40714 is known for its energy efficiency. Utilizing advanced LED technology, the fixture consumes significantly less power than traditional incandescent lighting, resulting in lower energy bills and a reduced carbon footprint. LEDs not only offer longevity, with lifespans of up to 25,000 hours, but they also deliver consistent, high-quality illumination that enhances the ambiance of any room.

Another characteristic of the Lightolier 40714 is its impressive versatility. The fixture is designed to be adjustable, allowing users to direct light precisely where it is needed. This feature is especially useful in spaces like kitchens, dining rooms, and even office environments, where task lighting and flexibility are essential. The ability to alter the direction of light also enables users to create dynamic lighting setups that can be changed to suit different moods or activities.

In addition, the Lightolier 40714 adheres to modern safety standards. It is UL listed, ensuring that it has been rigorously tested for quality and safety. With an easy installation process, the fixture is designed for both professional and DIY installations, making it accessible to a wide range of users.

Finally, the Lightolier 40714 offers dimmable options, allowing users to adjust brightness levels to their preference. This capability enhances the user experience by enabling personalized lighting schemes that can adapt to various settings and moods throughout the day.

In summary, the Lightolier 40714 is a well-rounded lighting fixture that excels in design, technology, and usability. Its energy efficiency, versatility, and aesthetic charm make it a top choice for anyone looking to upgrade their lighting solutions while maintaining an elegant and modern look.
