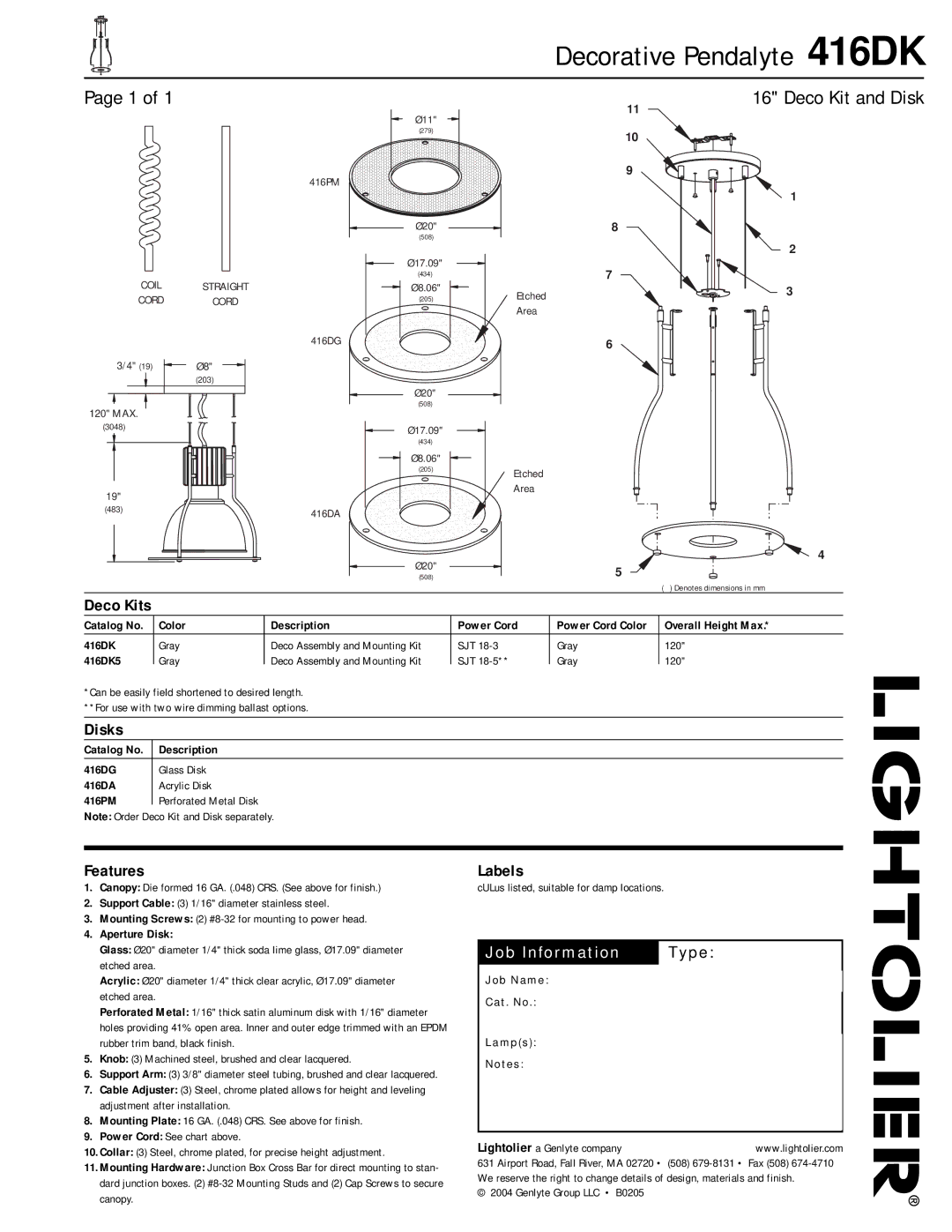

Decorative Pendalyte 416DK

Page 1 of 1

Ø11"

(279)

11

10

9

16" Deco Kit and Disk

COIL

CORD

3/4" (19)

120" MAX.

(3048)

416PM

STRAIGHT

CORD

416DG

Ø8"

(203)

Ø20"

(508)

Ø17.09"

(434)

Ø8.06"

(205)

Ø20"

(508)

Ø17.09"

(434)

Ø8.06"

(205)

8

7

Etched

Area

6

Etched

1

2

3

19"

(483) 416DA

Ø20"

(508)

Area

5

4

( ) Denotes dimensions in mm

Deco Kits

Catalog No.	Color	Description	Power Cord	Power Cord Color	Overall Height Max.*
416DK	Gray	Deco Assembly and Mounting Kit	SJT 18-3	Gray	120"
416DK5	Gray	Deco Assembly and Mounting Kit	SJT 18-5**	Gray	120"

*Can be easily field shortened to desired length. **For use with two wire dimming ballast options.

Disks

Catalog No.	Description
416DG	Glass Disk
416DA	Acrylic Disk
416PM	Perforated Metal Disk

Note: Order Deco Kit and Disk separately.

Features

1.Canopy: Die formed 16 GA. (.048) CRS. (See above for finish.)

2.Support Cable: (3) 1/16" diameter stainless steel.

3.Mounting Screws: (2) #8-32 for mounting to power head.

4.Aperture Disk:

Glass: Ø20" diameter 1/4" thick soda lime glass, Ø17.09" diameter etched area.

Acrylic: Ø20" diameter 1/4" thick clear acrylic, Ø17.09" diameter etched area.

Perforated Metal: 1/16" thick satin aluminum disk with 1/16" diameter holes providing 41% open area. Inner and outer edge trimmed with an EPDM rubber trim band, black finish.

5.Knob: (3) Machined steel, brushed and clear lacquered.

6.Support Arm: (3) 3/8" diameter steel tubing, brushed and clear lacquered.

7.Cable Adjuster: (3) Steel, chrome plated allows for height and leveling adjustment after installation.

8.Mounting Plate: 16 GA. (.048) CRS. See above for finish.

9.Power Cord: See chart above.

10.Collar: (3) Steel, chrome plated, for precise height adjustment.

11.Mounting Hardware: Junction Box Cross Bar for direct mounting to stan- dard junction boxes. (2) #8-32 Mounting Studs and (2) Cap Screws to secure canopy.

Labels

cULus listed, suitable for damp locations.

Job Information Type:

Job Name:

Cat. No.:

Lamp(s): Notes:

Lightolier a Genlyte companywww.lightolier.com 631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710 We reserve the right to change details of design, materials and finish.

© 2004 Genlyte Group LLC • B0205
