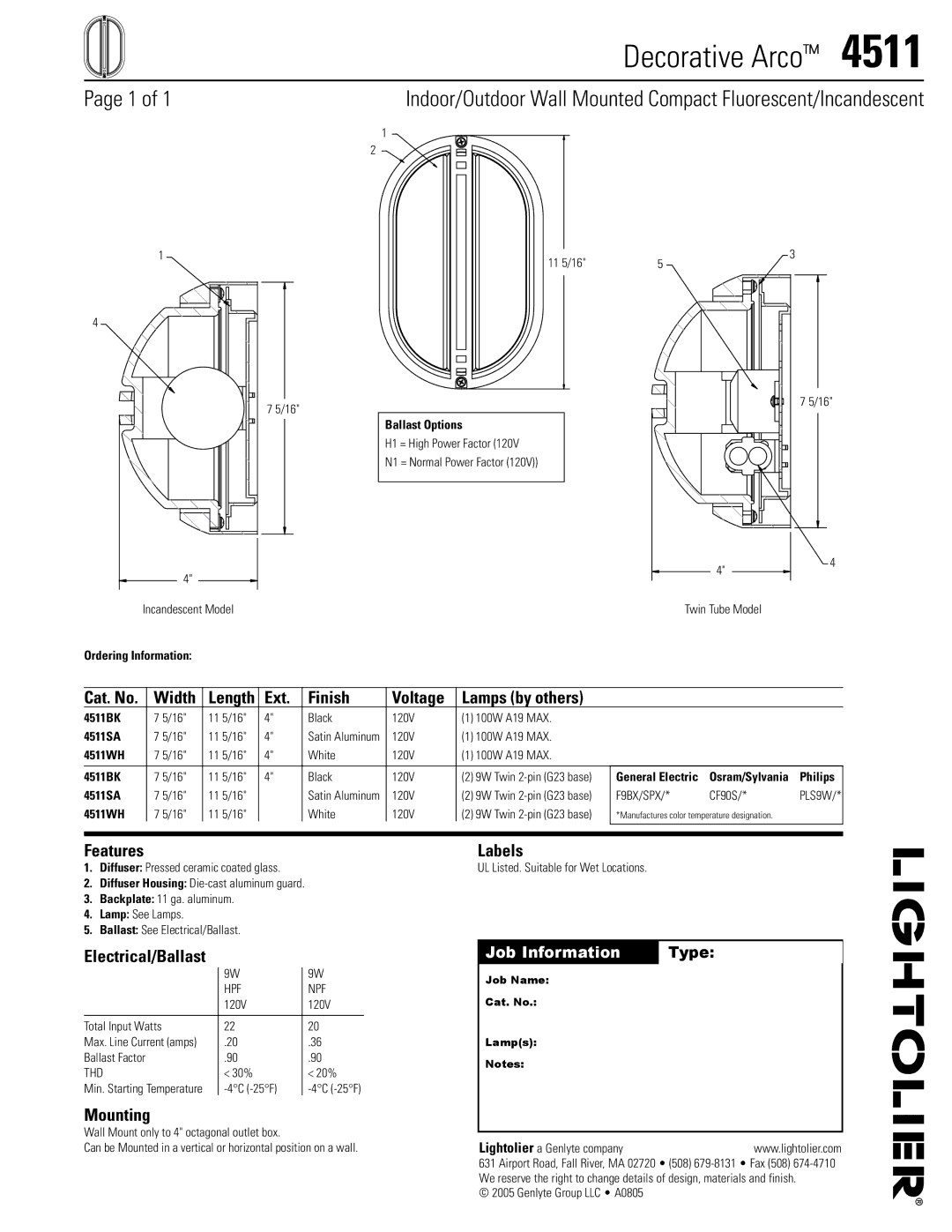

	Decorative Arco™   4511
Page 1 of 1	Indoor/Outdoor Wall Mounted Compact Fluorescent/Incandescent

2

1

4

7 5/16"

4"

Incandescent Model

1

11 5/16" 5 3

7 5/16"

Ballast Options

H1 = High Power Factor (120V

N1 = Normal Power Factor (120V))

4"4

Twin Tube Model

Ordering Information:

Cat. No.	Width	Length	Ext.	Finish	Voltage	Lamps (by others)
4511BK	7 5/16"	11 5/16"	4"	Black	120V	(1)	100W a19 Max.
4511SA	7 5/16"	11 5/16"	4"	Satin Aluminum	120V	(1)	100W a19 Max.
4511WH	7 5/16"	11 5/16"	4"	White	120V	(1)	100W a19 Max.
4511BK	7 5/16"	11 5/16"	4"	Black	120V	(2)	9W Twin 2-pin (G23 base)	General Electric	Osram/Sylvania	Philips
4511SA	7 5/16"	11 5/16"		Satin Aluminum	120V	(2)	9W Twin 2-pin (G23 base)	F9BX/SPX/*	CF90S/*	PLS9W/*
4511WH	7 5/16"	11 5/16"		White	120V	(2)	9W Twin 2-pin (G23 base)	*Manufactures color temperature designation.

Features	Labels
1. Diffuser: Pressed ceramic coated glass.	UL Listed. Suitable for Wet Locations.

2.Diffuser Housing: Die-cast aluminum guard.

3.Backplate: 11 ga. aluminum.

4.Lamp: See Lamps.

5.Ballast: See Electrical/Ballast.

Electrical/Ballast

	9W	9W
	HPF	NPF
	120V	120V
Total Input Watts	22	20
Max. Line Current (amps)	.20	.36
Ballast Factor	.90	.90
THD	< 30%	< 20%
Min. Starting Temperature	-4°C (-25°F)	-4°C (-25°F)

Mounting

Wall Mount only to 4" octagonal outlet box.

Can be Mounted in a vertical or horizontal position on a wall.

Job Information Type:

Job Name:

Cat. No.:

Lamp(s):

Notes:

Lightolier a Genlyte companywww.lightolier.com 631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710 We reserve the right to change details of design, materials and finish.

© 2005 Genlyte Group LLC • A0805
