Lightolier 48020ALU dimensions Catalog No Finish Wattage Voltage Lamping, Features, Options

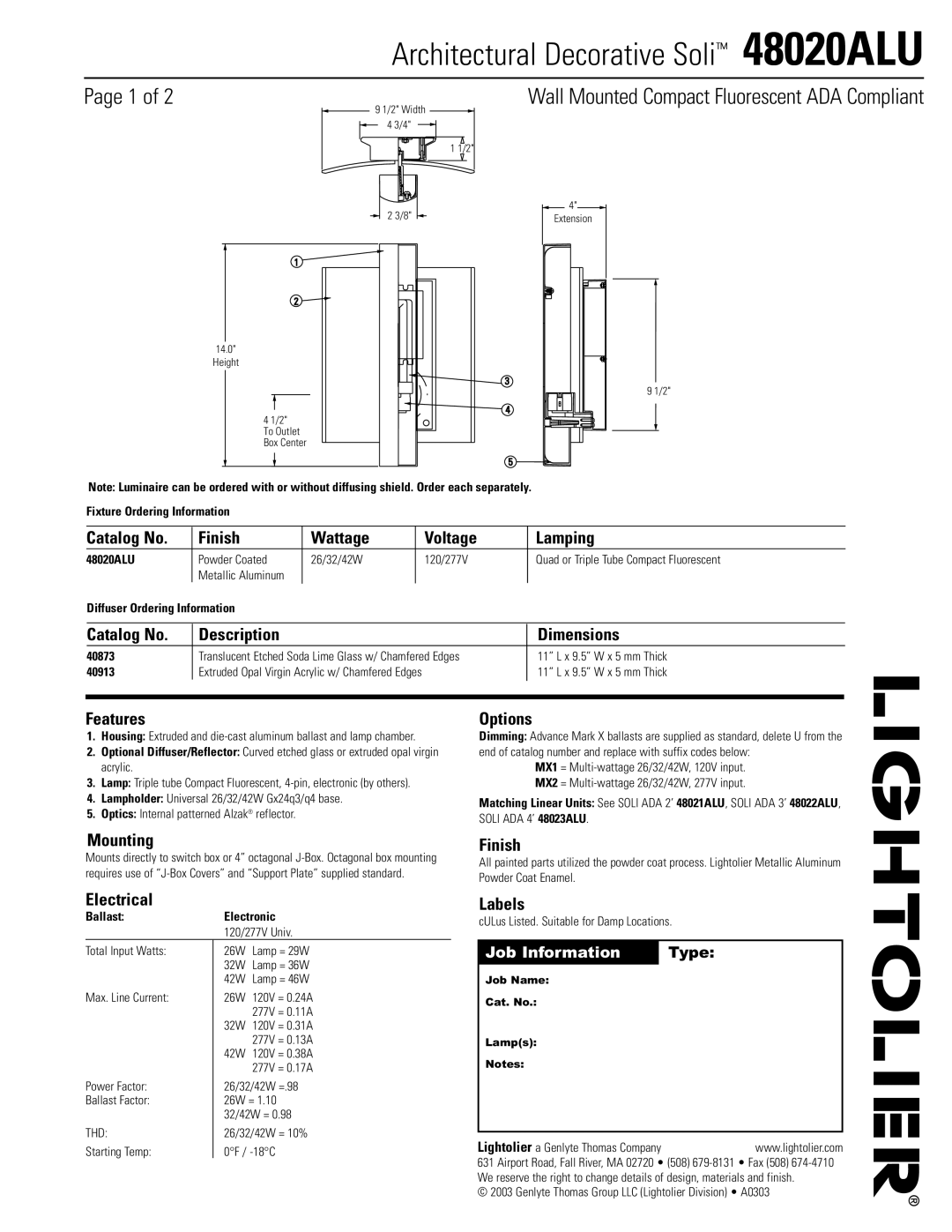

	Architectural Decorative Soli™ 48020ALU
Page 1 of 2	Wall Mounted Compact Fluorescent ADA Compliant

9 1/2" Width

4 3/4"

	1 1/2"
2 3/8"	4"
	Extension

1

2

14.0"

Height

3

9 1/2"

4

4 1/2" To Outlet Box Center

5

Note: Luminaire can be ordered with or without diffusing shield. Order each separately.

Fixture Ordering Information

Catalog No.	Finish	Wattage	Voltage	Lamping
48020ALU	Powder Coated	26/32/42W	120/277V	Quad or Triple Tube Compact Fluorescent
	Metallic Aluminum
Diffuser Ordering Information
Catalog No.	Description			Dimensions
40873	Translucent Etched Soda Lime Glass w/ Chamfered Edges			11” L x 9.5” W x 5 mm Thick
40913	Extruded Opal Virgin Acrylic w/ Chamfered Edges			11” L x 9.5” W x 5 mm Thick

Features

1.Housing: Extruded and die-cast aluminum ballast and lamp chamber.

2.Optional Diffuser/Reflector: Curved etched glass or extruded opal virgin acrylic.

3.Lamp: Triple tube Compact Fluorescent, 4-pin, electronic (by others).

4.Lampholder: Universal 26/32/42W Gx24q3/q4 base.

5.Optics: Internal patterned Alzak® reflector.

Options

Dimming: Advance Mark X ballasts are supplied as standard, delete U from the end of catalog number and replace with suffix codes below:

MX1 = Multi-wattage 26/32/42W, 120V input. MX2 = Multi-wattage 26/32/42W, 277V input.

Matching Linear Units: See SOLI ADA 2’ 48021ALU, SOLI ADA 3’ 48022ALU, SOLI ADA 4’ 48023ALU.

Mounting

Mounts directly to switch box or 4” octagonal J-Box. Octagonal box mounting requires use of “J-Box Covers” and “Support Plate” supplied standard.

Electrical

Ballast:Electronic

120/277V Univ.

Finish

All painted parts utilized the powder coat process. Lightolier Metallic Aluminum Powder Coat Enamel.

Labels

cULus Listed. Suitable for Damp Locations.

Total Input Watts:

Max. Line Current:

Power Factor: Ballast Factor:

THD:

Starting Temp:

26W Lamp = 29W

32W Lamp = 36W

42W Lamp = 46W

26W 120V = 0.24A

277V = 0.11A

32W 120V = 0.31A

277V = 0.13A

42W 120V = 0.38A

277V = 0.17A

26/32/42W =.98 26W = 1.10 32/42W = 0.98

26/32/42W = 10%

0°F / -18°C

Job Information Type:

Job Name:

Cat. No.:

Lamp(s):

Notes:

Lightolier a Genlyte Thomas Companywww.lightolier.com 631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710 We reserve the right to change details of design, materials and finish.

© 2003 Genlyte Thomas Group LLC (Lightolier Division) • A0303
