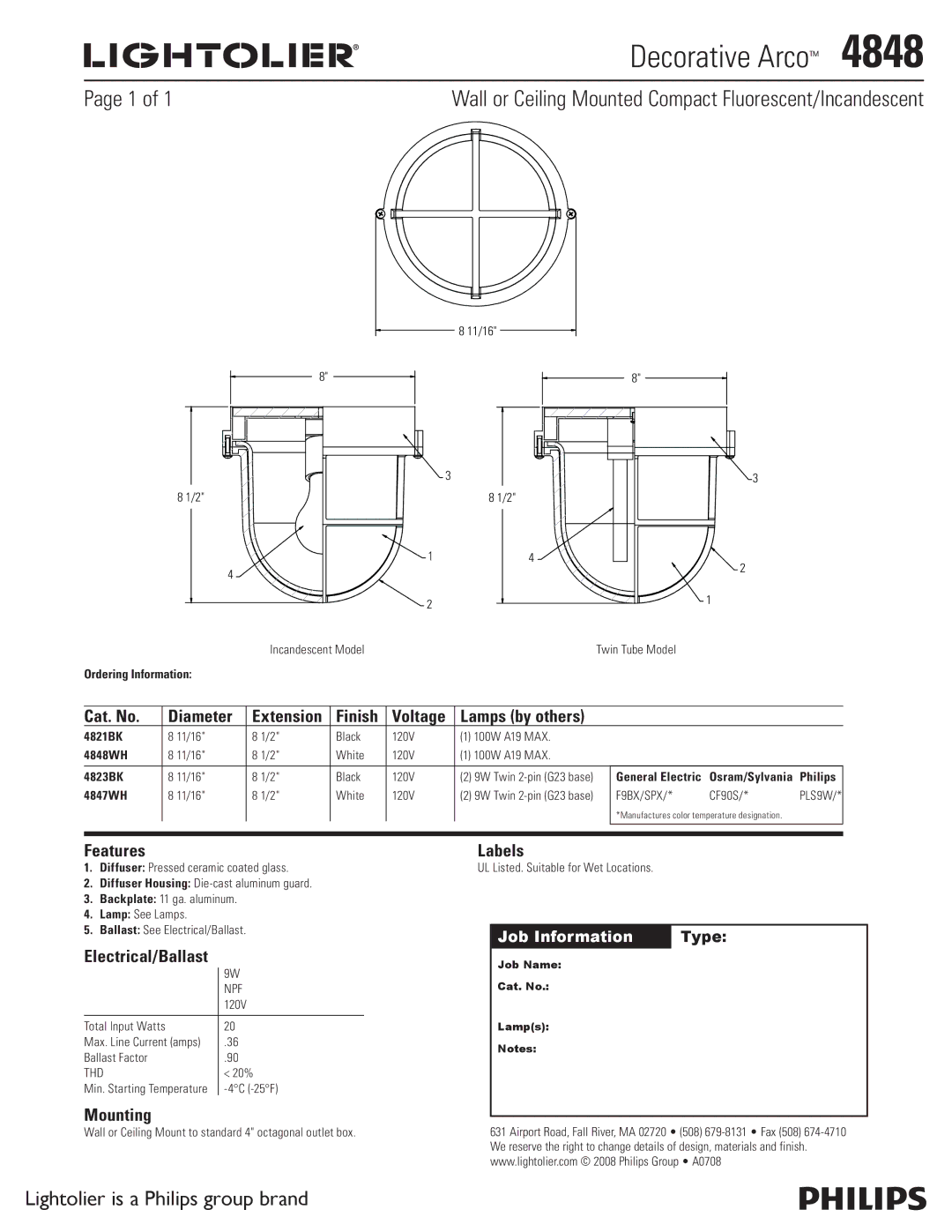

	Decorative Arco™   4848
Page 1 of 1	Wall or Ceiling Mounted Compact Fluorescent/Incandescent

8 11/16"

8" 8"

					3				3
	8 1/2"					8 1/2"
					1	4			2
		4
					2				1
			Incandescent Model				Twin Tube Model
Ordering Information:
Cat. No.	Diameter		Extension	Finish	Voltage	Lamps (by others)
4821BK	8 11/16"		8 1/2"	Black	120V	(1) 100W a19 Max.
4848WH	8 11/16"		8 1/2"	White	120V	(1) 100W a19 Max.
4823BK	8 11/16"		8 1/2"	Black	120V	(2) 9W Twin 2-pin (G23 base)		General Electric	Osram/Sylvania	Philips
4847WH	8 11/16"		8 1/2"	White	120V	(2) 9W Twin 2-pin (G23 base)		F9BX/SPX/*	CF90S/*	PLS9W/*
								*Manufactures color temperature designation.

Features

1.Diffuser: Pressed ceramic coated glass.

2.Diffuser Housing: Die-cast aluminum guard.

3.Backplate: 11 ga. aluminum.

4.Lamp: See Lamps.

5.Ballast: See Electrical/Ballast.

Electrical/Ballast

	9W
	NPF
	120V
Total Input Watts	20
Max. Line Current (amps)	.36
Ballast Factor	.90
THD	< 20%
Min. Starting Temperature	-4°C (-25°F)

Mounting

Wall or Ceiling Mount to standard 4" octagonal outlet box.

Labels

UL Listed. Suitable for Wet Locations.

Job Information Type:

Job Name:

Cat. No.:

Lamp(s):

Notes:

631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710 We reserve the right to change details of design, materials and finish. www.lightolier.com © 2008 Philips Group • A0708
