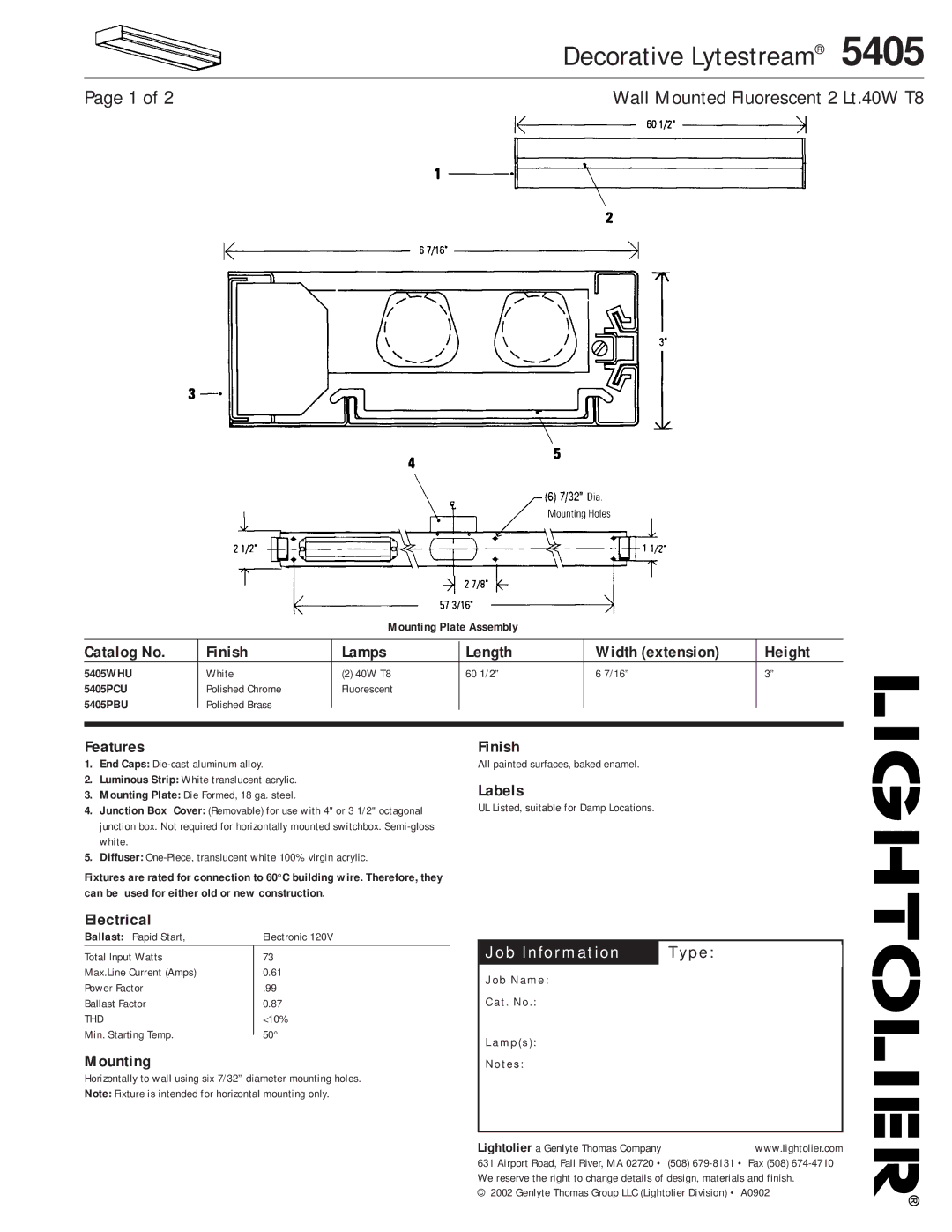

Decorative Lytestream® 5405
Page 1 of 2 | Wall Mounted Fluorescent 2 Lt.40W T8 |
Mounting Plate Assembly
Catalog No. | Finish | Lamps | Length | Width (extension) | Height |
5405WHU | White | (2) 40W T8 | 60 1/2” | 6 7/16” | 3” |
5405PCU | Polished Chrome | Fluorescent |
|
|
|
5405PBU | Polished Brass |
|
|
|
|
|
|
|
|
|
|
Features
1.End Caps:
2.Luminous Strip: White translucent acrylic.
3.Mounting Plate: Die Formed, 18 ga. steel.
4.Junction Box Cover: (Removable) for use with 4" or 3 1/2" octagonal junction box. Not required for horizontally mounted switchbox.
5.Diffuser:
Fixtures are rated for connection to 60°C building wire. Therefore, they can be used for either old or new construction.
Electrical
Ballast: Rapid Start, |
| Electronic 120V |
Total Input Watts |
| 73 |
Max.Line Current (Amps) |
| 0.61 |
Power Factor |
| .99 |
Ballast Factor |
| 0.87 |
THD |
| <10% |
Min. Starting Temp. |
| 50° |
|
Mounting
Horizontally to wall using six 7/32” diameter mounting holes. Note: Fixture is intended for horizontal mounting only.
Finish
All painted surfaces, baked enamel.
Labels
UL Listed, suitable for Damp Locations.
Job Information | Type: |
Job Name:
Cat. No.:
Lamp(s): Notes:
Lightolier a Genlyte Thomas Companywww.lightolier.com 631 Airport Road, Fall River, MA 02720 • (508)
© 2002 Genlyte Thomas Group LLC (Lightolier Division) • A0902
