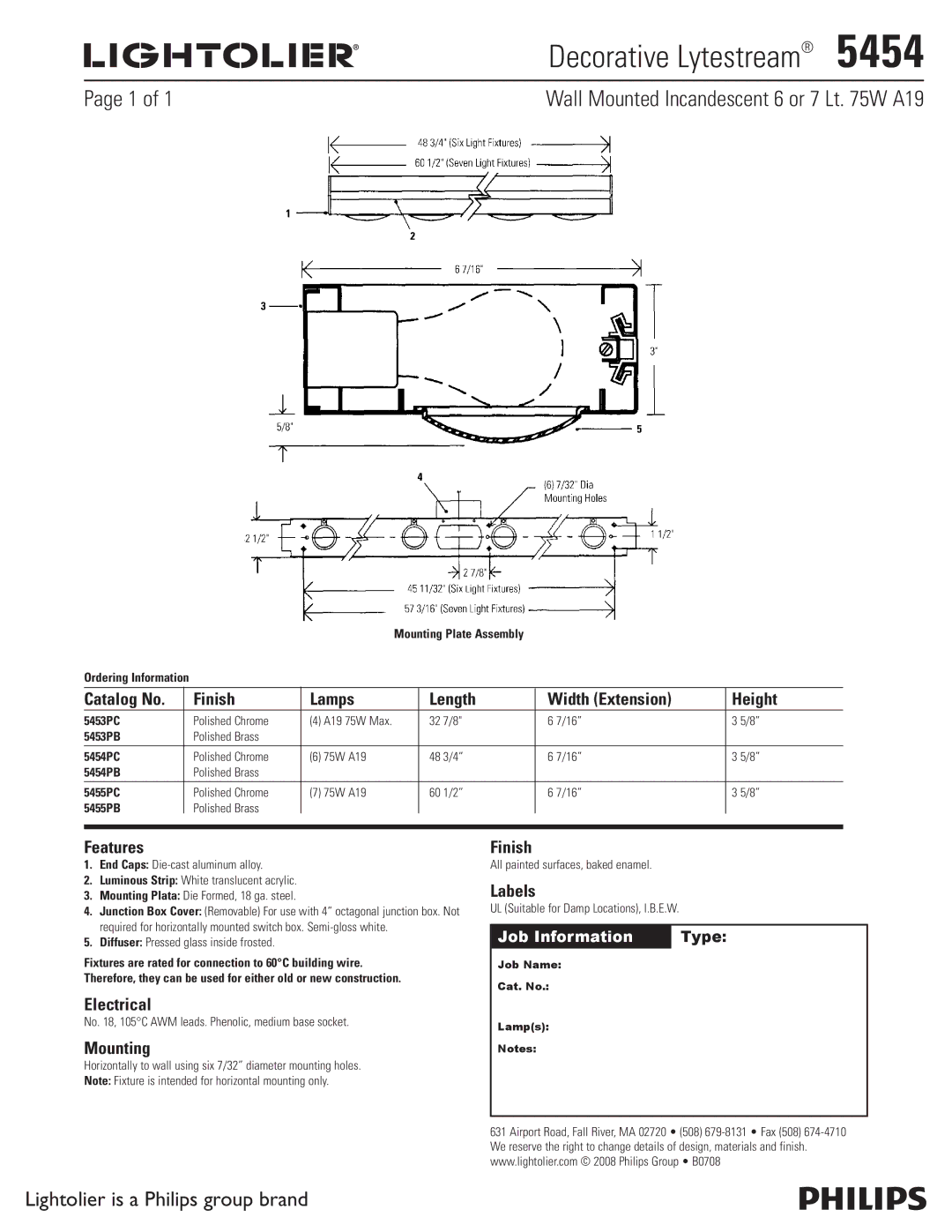

| Decorative Lytestream® 5454 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| |||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| ||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| |||||
Page 1 of 1 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| Wall Mounted Incandescent 6 or 7 Lt. 75W A19 | |||||||
Mounting Plate Assembly
Ordering Information
Catalog No. | Finish | Lamps | Length | Width (Extension) | Height | ||
5453PC | Polished Chrome | (4) | A19 75W Max. | 32 | 7/8" | 6 7/16” | 3 5/8” |
5453PB | Polished Brass |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
5454PC | Polished Chrome | (6) | 75W A19 | 48 | 3/4” | 6 7/16” | 3 5/8” |
5454PB | Polished Brass |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
5455PC | Polished Chrome | (7) | 75W A19 | 60 | 1/2” | 6 7/16” | 3 5/8” |
5455PB | Polished Brass |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Features
1.End Caps:
2.Luminous Strip: White translucent acrylic.
3.Mounting Plata: Die Formed, 18 ga. steel.
4.Junction Box Cover: (Removable) For use with 4“ octagonal junction box. Not required for horizontally mounted switch box.
5.Diffuser: Pressed glass inside frosted.
Fixtures are rated for connection to 60°C building wire. Therefore, they can be used for either old or new construction.
Electrical
No. 18, 105°C AWM leads. Phenolic, medium base socket.
Mounting
Horizontally to wall using six 7/32” diameter mounting holes.
Note: Fixture is intended for horizontal mounting only.
Finish
AII painted surfaces, baked enamel.
Labels
UL (Suitable for Damp Locations), I.B.E.W.
Job Information | Type: |
|
|
Job Name:
Cat. No.:
Lamp(s):
Notes:
631 Airport Road, Fall River, MA 02720 • (508)
Lightolier is a Philips group brand
