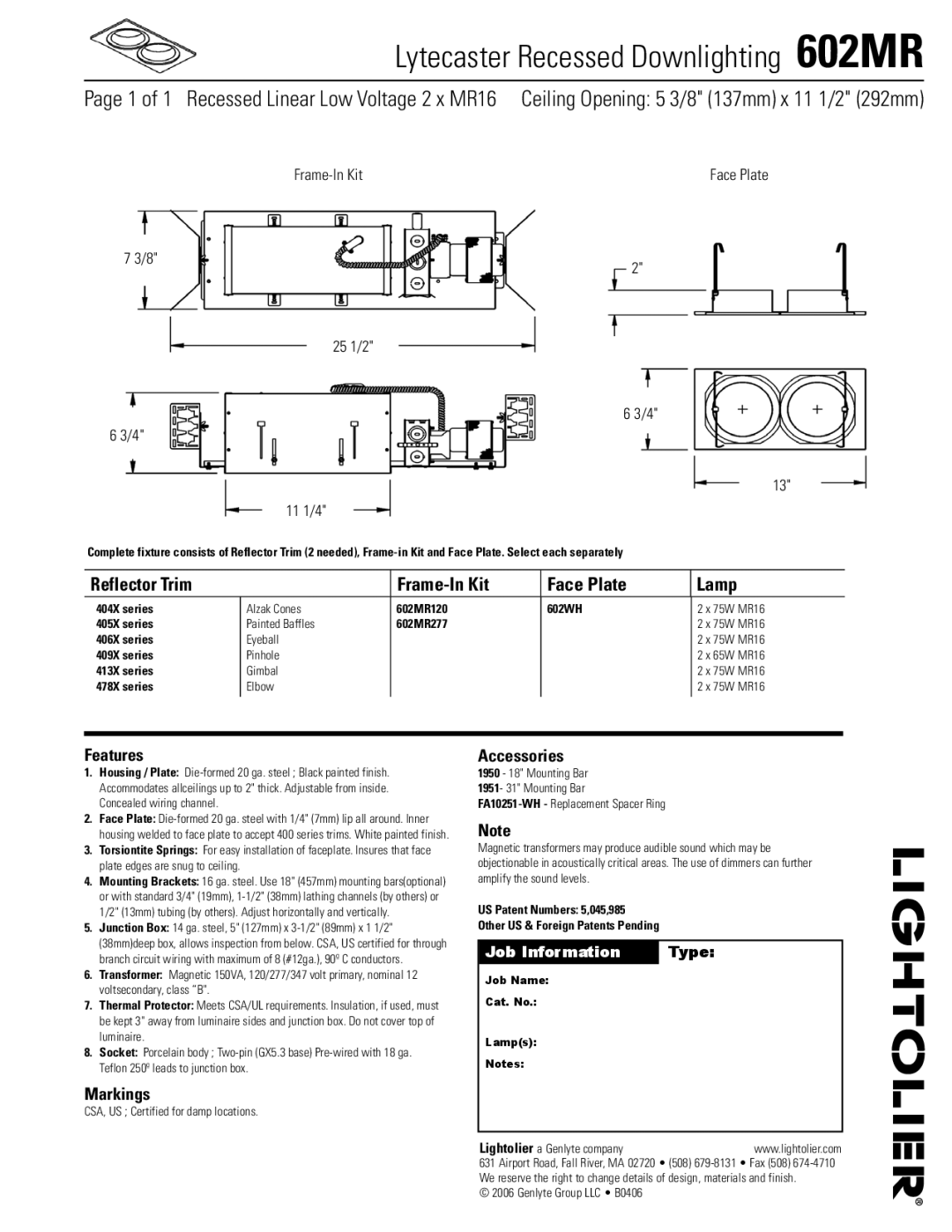

Lytecaster Recessed Downlighting  602MR

Page 1 of 1 Recessed Linear Low Voltage 2 x MR16

Ceiling Opening: 5 3/8" (137mm) x 11 1/2" (292mm)

Frame-In Kit

Face Plate



7 3/8"







































2"



















































































25 1/2"































































6 3/4"







6 3/4"





























































































13"









11 1/4"































































Complete fixture consists of Reflector Trim (2 needed), Frame-in Kit and Face Plate. Select each separately

Reflector Trim

Frame-In Kit

Face Plate

Lamp

404X series

405X series

406X series

409X series

413X series

478X series

Alzak Cones

Painted Baffles

Eyeball

Pinhole

Gimbal

Elbow

602MR120

602MR277

602WH

2 x 75W MR16

2 x 75W MR16

2 x 75W MR16

2 x 65W MR16

2 x 75W MR16

2 x 75W MR16

Features

1.Housing / Plate: Die-formed 20 ga. steel ; Black painted finish. Accommodates allceilings up to 2" thick. Adjustable from inside. Concealed wiring channel.

2.Face Plate: Die-formed 20 ga. steel with 1/4" (7mm) lip all around. Inner housing welded to face plate to accept 400 series trims. White painted finish.

3.Torsiontite Springs: For easy installation of faceplate. Insures that face plate edges are snug to ceiling.

4.Mounting Brackets: 16 ga. steel. Use 18" (457mm) mounting bars(optional) or with standard 3/4" (19mm), 1-1/2" (38mm) lathing channels (by others) or 1/2" (13mm) tubing (by others). Adjust horizontally and vertically.

5.Junction Box: 14 ga. steel, 5" (127mm) x 3-1/2" (89mm) x 1 1/2" (38mm)deep box, allows inspection from below. CSA, US certified for through branch circuit wiring with maximum of 8 (#12ga.), 90º C conductors.

6.Transformer: Magnetic 150VA, 120/277/347 volt primary, nominal 12 voltsecondary, class “B".

7.Thermal Protector: Meets CSA/UL requirements. Insulation, if used, must be kept 3" away from luminaire sides and junction box. Do not cover top of luminaire.

8.Socket: Porcelain body ; Two-pin (GX5.3 base) Pre-wired with 18 ga. Teflon 250º leads to junction box.

Markings

CSA, US ; Certified for damp locations.

Accessories

1950 - 18" Mounting Bar

1951- 31" Mounting Bar

FA10251-WH - Replacement Spacer Ring

Note

Magnetic transformers may produce audible sound which may be objectionable in acoustically critical areas. The use of dimmers can further amplify the sound levels.

US Patent Numbers: 5,045,985

Other US & Foreign Patents Pending

Job Information

Type:





Job Name:

Cat. No.:

Lamp(s):

Notes:

Lightolier a Genlyte companywww.lightolier.com 631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710 We reserve the right to change details of design, materials and finish.

© 2006 Genlyte Group LLC • B0406
