READ AND UNDERSTAND THESE INSTRUCTIONS BEFORE INSTALLING FIXTURE
lis fixture is intended for installation in accordance with the National Electrical Codeand local regulations. I assure full compliance with local codes and regulations, check with your local electrical inspector before lstallation. To prevent electrical shock, turn off electricity at fuse box before proceeding.
Retain these instructions for maintenance reference.

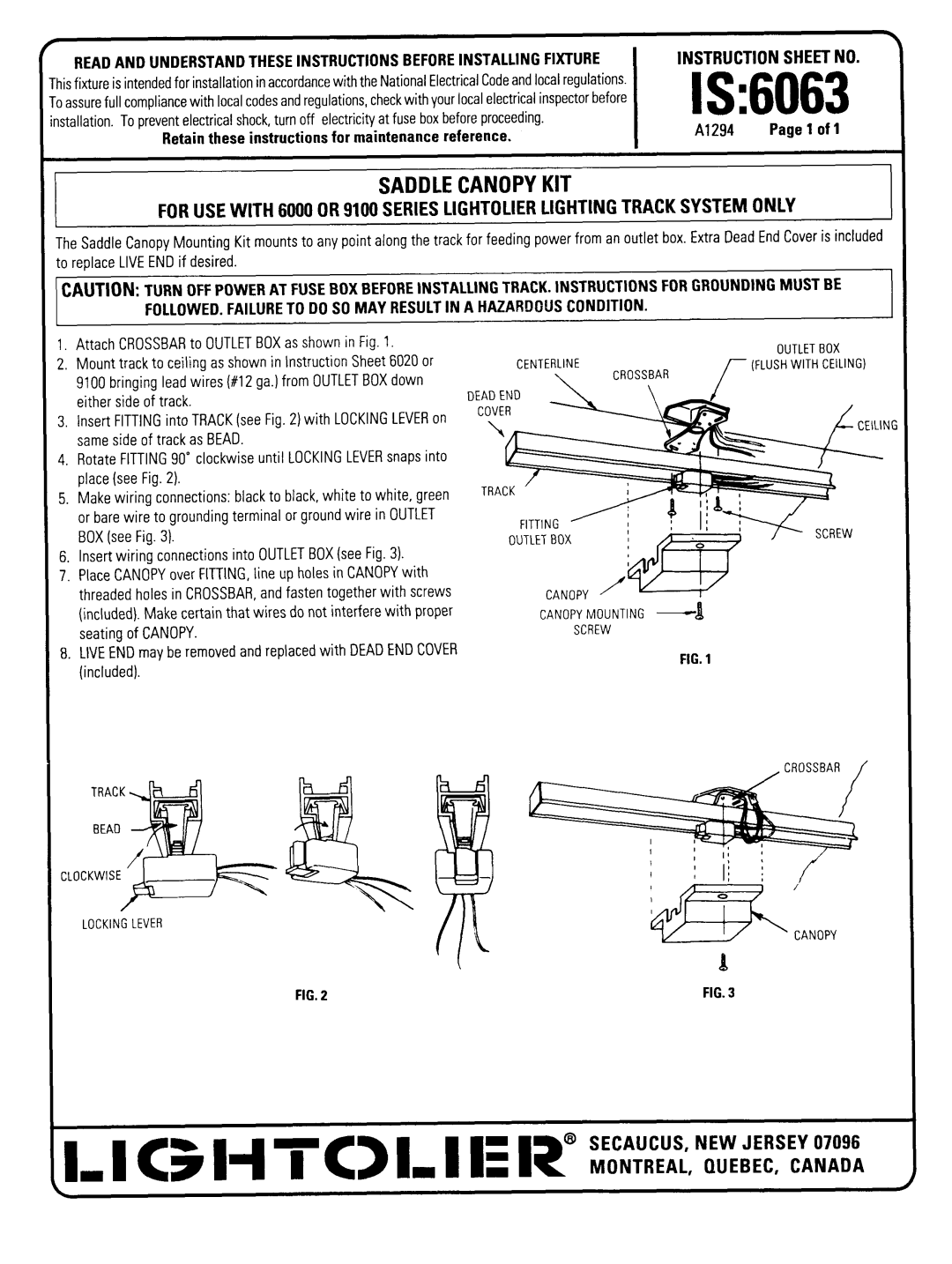

SADDLE CANOPY KIT
INSTRUCTIONSHEET NO. 7
IS:6063
A1294 | Page 1 of 1 |
FORUSEWITH 6000 OR9100SERIESLIGHTOLIERLIGHTINGTRACKSYSTEM ONLY
rhe Saddle Canopy Mounting Kit mounts to any point along the track for feeding power from an outlet box. Extra Dead End Cover is included :0 replace LIVE END if desired.
CAUTION:TURN OFF POWER AT FUSEBOX BEFOREINSTALLING TRACK. INSTRUCTIONS FOR GROUNDING MUST BE FOLLOWED.FAILURETO DO SO MAY RESULTIN A HAZARDOUS CONDITION.
1, Attach CROSSBAR to OUTLET BOX as shown in Fig. 1.
OUTLETBOX
2, Mount track to ceiling as shown in Instruction Sheet 6020 orCENTERLINE(FLUSHWITH CEILING) 9100 bringing lead wires (#1 2 ga.) from OUTLET BOX down
either side of track.
3.Insert FITTING into TRACK (see Fig. 2) with LOCKING LEVER on same side of track as BEAD.
4, Rotate FITTING 90” clockwise until LOCKING LEVER snaps into place (see Fig. 2).
5.Make wiring connections: black to black, white to white, green or bare wire to grounding terminal or ground wire in OUTLET
BOX (see Fig. 3).
6.Insert wiring connections into OUTLET BOX (see Fig, 3).
7.Place CANOPY over FITTING, lineup holes in CANOPY with threaded holes in CROSSBAR, and fasten together with screws (included). Make certain that wires do not interfere with proper seating of CANOPY.
oEAO END
COVER
\
TRACK
FITTINGI
CANOPY /“
CANOPY MOUNTING
SCREW
B. LIVE END maybe removed and replaced with DEAD END COVER
FIG. 1
(included).
CROSSBAR
,Lo:pR& | ~’ |
LOCKING LEVER
CANOPY
.!
FIG.2 | FIG. 3 |
