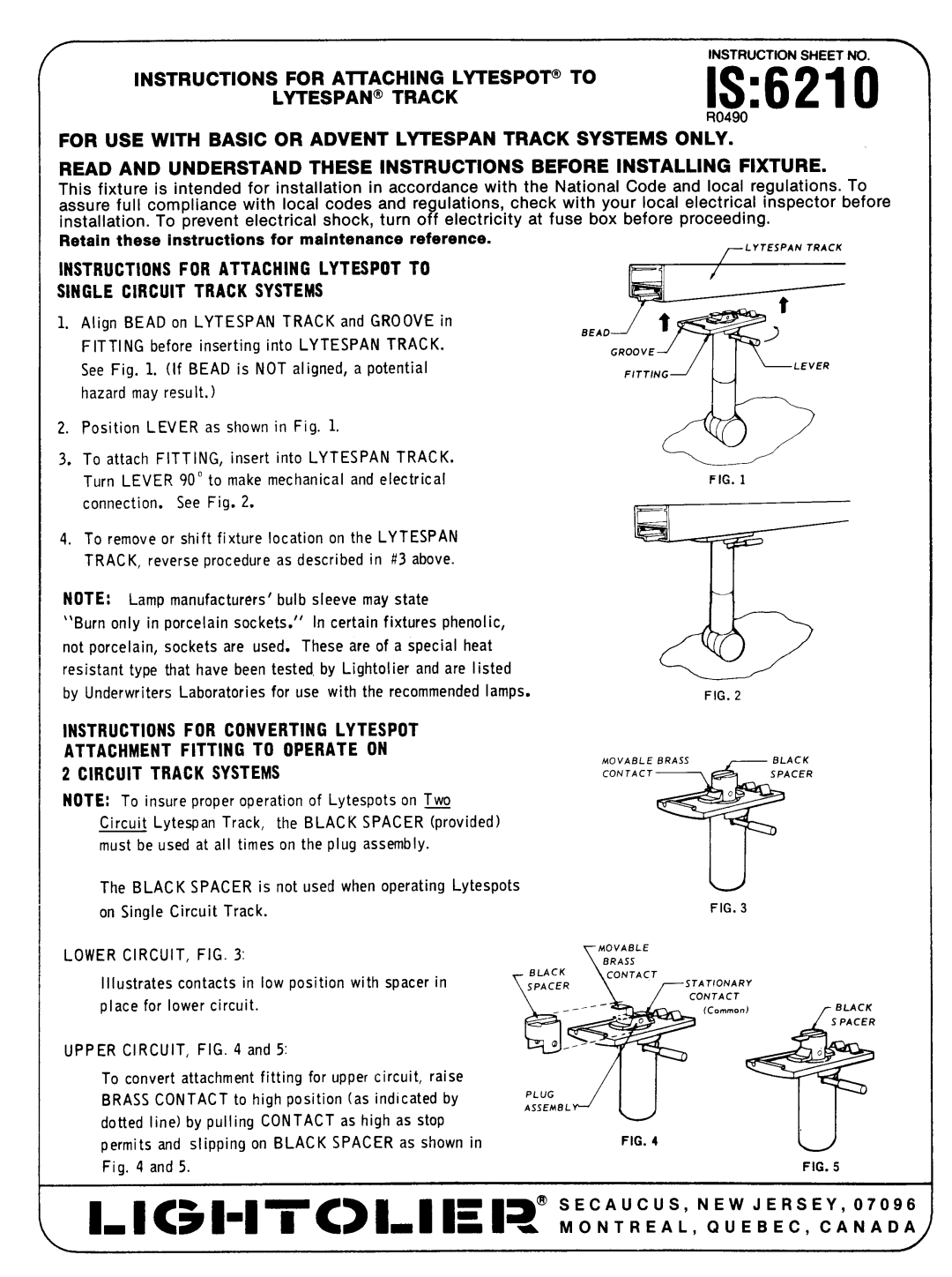

Lightolier instruction sheet IS6210, Instructions Lytespan Track, For Aitaching Lytespot

INSTRUCTION SHEET NO. ‘

INSTRUCTIONS	LYTESPAN”	TRACK	TO	IS:6210
	FOR AITACHING LYTESPOT”
				R0490
FOR USE WITH BASIC	OR ADVENT	LYTESPAN TRACK	SYSTEMS ONLY.

READ AND UNDERSTAND THESE INSTRUCTIONS BEFORE INSTALLING FIXTURE.

This fixture is intended for installation in accordance with the National Code and local regulations. To assure full compliance with local codes and regulations, check with your local electrical inspector before

installation. To prevent electrical shock, turn off electricity at fuse box before proceeding.

Retain these instructions for maintenance reference. /- LYTESPAN TRACK

INSTRUCTIONS FOR ATTACHING LYTESPOT TO

SINGLE CIRCUIT TRACK SYSTEMS

1.Align BEAD on LYTESPAN TRACK and GROOV’E in FITTING before inserting into LYTESPAN TRACK. See Fig. 1. (if BEAD is NOT aligned, a potential hazard may result. )

,,~

GROOVE

LEVER

FITTING

2. Position LEVER as shown in Fig. 1.

3.To attach FITTING, insert into LYTESPAN TRACK. Turn LEVER 90° to make mechanical and electrical connection. See Fig. 2.

4.To remove or shift fixture location on the LYTESPAN TRACK, reverse procedure as described in #3 above.

NOTE: Lamp manufacturers’ bulb sleeve may state

“Burn only in porcelain sockets.” In certain fixtures phenolic,

not porcelain, sockets are used. These are of a special heat resistant type that have been tested, by Lightolier and are listed by Underwriters Laboratories for use with the recommended lamps.

INSTRUCTIONSFOR CONVERTINGLYTESPOT ATTACHMENTFITTING TO OPERATE ON

2 CIRCUIT TRACK SYSTEMS

NOTE; TO insure proper operation of Lytespots on TM Circuit Lytespan Track, the BLACK SPACER (provided) must be used at all times on the plug assembly.

%

FIG. 1

&

	FIG.	2
MOVABLE	BRASS	BLACK
CONTACT		SPACER
		o

*

The BLACK SPACER is not used when operating Lytespots on Single Circuit Track.

LOWER CIRCUIT,	FIG. 3:
Illustrates contacts in low position with spacer in
place for lower	circuit.
UPPER CIRCUIT,	FIG. 4 and 5:	b

To convert attachment fitting for upper circuit, raise BRASS CONTACT to high position (as indicated by dotted line) by pulling CONTACT as high as stop permits and slipping on BLACK SPACER as shown in Fig. 4 and 5.

FIG. 3

	MOVABLE
BLACK	‘18RASS
	CONTACT
SPACER	STATIONARY
	CONTACT
-----	(Comm.n)	BLACK
	:- ~	S PACER
0 ----	---
		0

PLUG

AS SEM8L

%*

FIG. 4

FIG. 5
