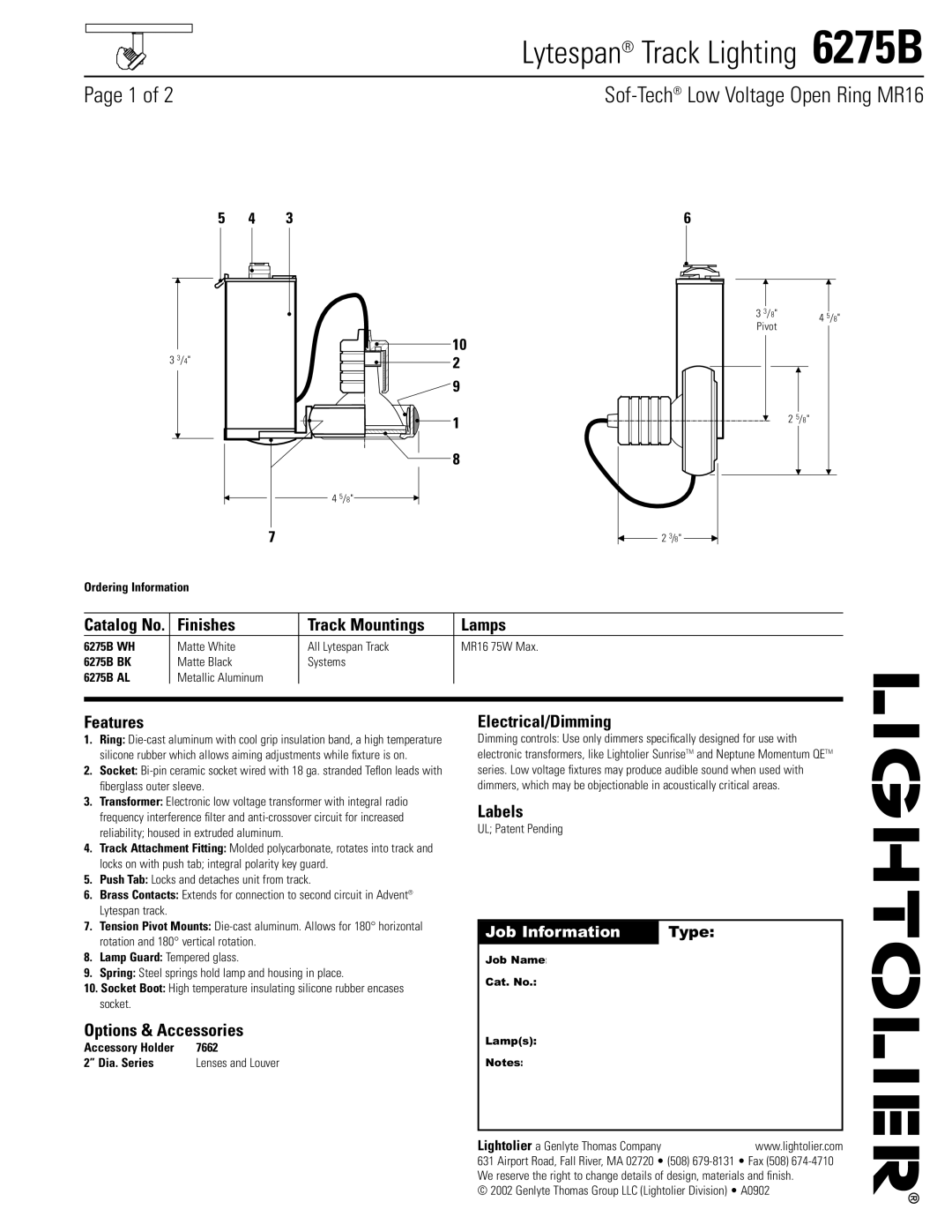

Lytespan® Track Lighting 6275B

Page 1 of 2 Sof-Tech®Low Voltage Open Ring MR16

5 4 3 6

3 3/4"

4 5/8"

7

Ordering Information

10

2

9

1 8

3	3/8"
		4 5/8"
Pivot

2 5/8"

2 3/8"

Catalog No.	Finishes	Track Mountings	Lamps
6275B WH	Matte White	All Lytespan Track	MR16 75W Max.
6275B BK	Matte Black	Systems
6275B AL	Metallic Aluminum

Features

1.Ring: Die-cast aluminum with cool grip insulation band, a high temperature silicone rubber which allows aiming adjustments while fixture is on.

2.Socket: Bi-pin ceramic socket wired with 18 ga. stranded Teflon leads with fiberglass outer sleeve.

3.Transformer: Electronic low voltage transformer with integral radio frequency interference filter and anti-crossover circuit for increased reliability; housed in extruded aluminum.

4.Track Attachment Fitting: Molded polycarbonate, rotates into track and locks on with push tab; integral polarity key guard.

5.Push Tab: Locks and detaches unit from track.

6.Brass Contacts: Extends for connection to second circuit in Advent® Lytespan track.

7.Tension Pivot Mounts: Die-cast aluminum. Allows for 180° horizontal rotation and 180° vertical rotation.

8.Lamp Guard: Tempered glass.

9.Spring: Steel springs hold lamp and housing in place.

10.Socket Boot: High temperature insulating silicone rubber encases socket.

Options & Accessories

Accessory Holder	7662
2” Dia. Series	Lenses and Louver

Electrical/Dimming

Dimming controls: Use only dimmers specifically designed for use with electronic transformers, like Lightolier SunriseTM and Neptune Momentum QETM series. Low voltage fixtures may produce audible sound when used with dimmers, which may be objectionable in acoustically critical areas.

Labels

UL; Patent Pending

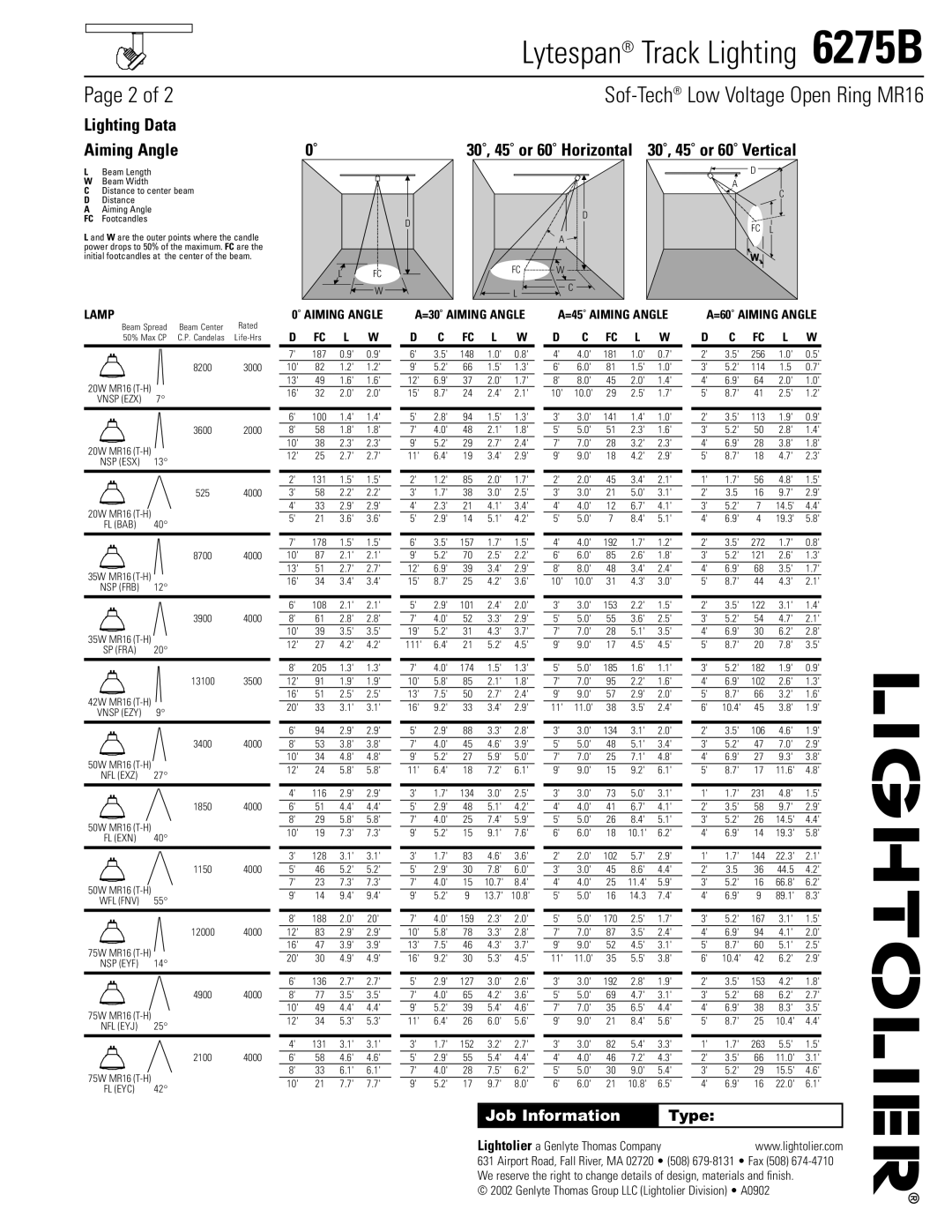

Job Information Type:

Job Name:

Cat. No.:

Lamp(s):

Notes:
