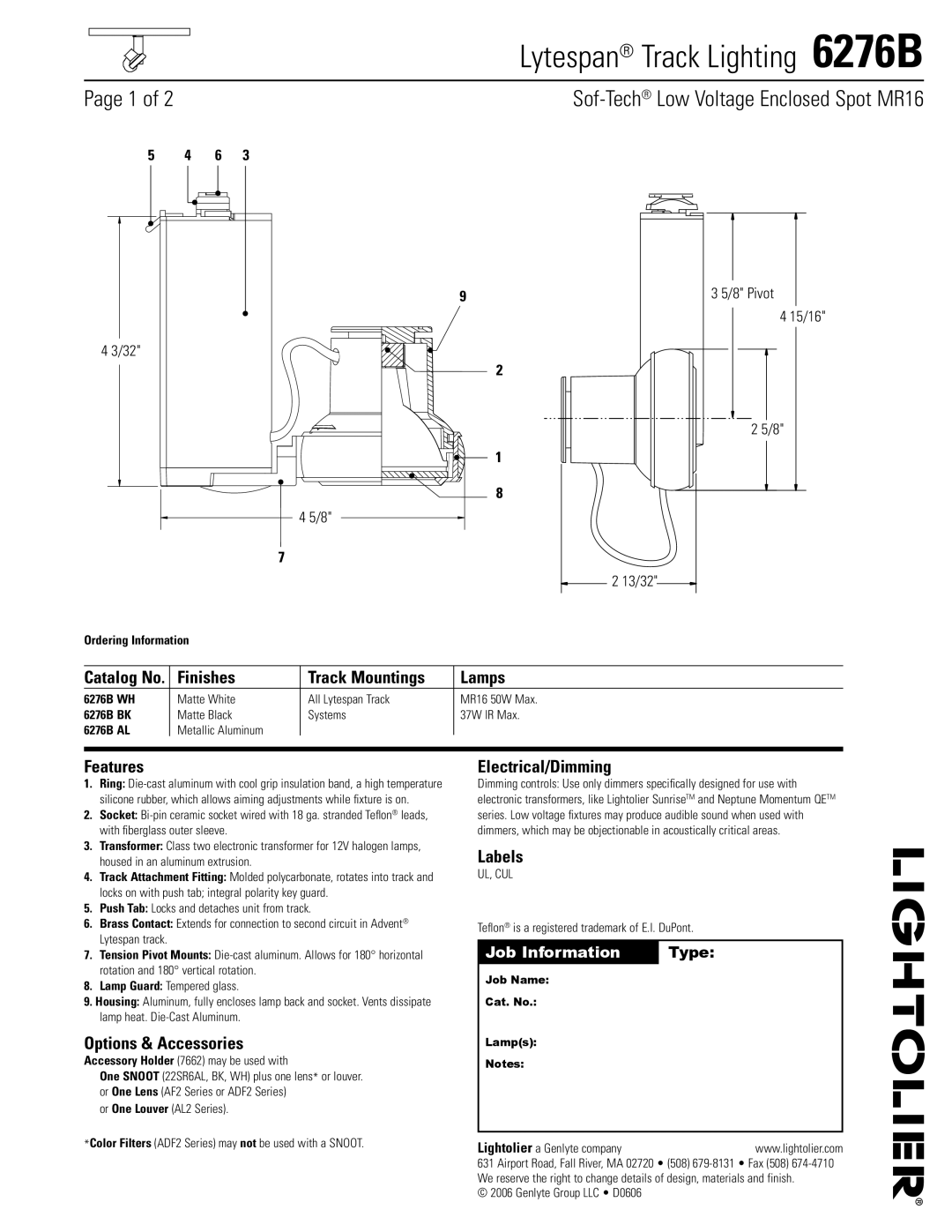

			Lytespan® Track Lighting  6276B

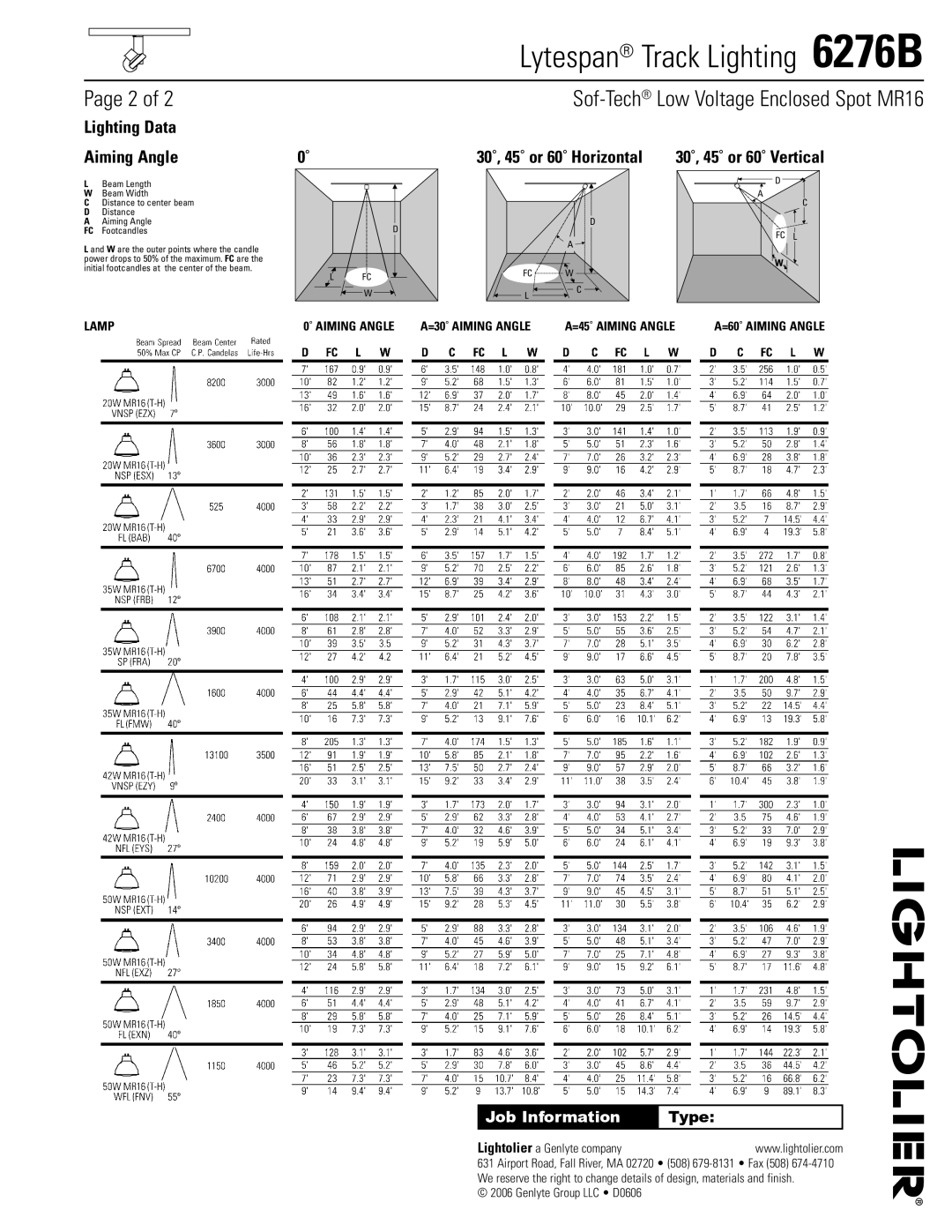

Page of 2			Sof-Tech®Low Voltage Enclosed Spot MR16
5	4	6	3

9	3 5/8" Pivot
	4 15/16"
4 3/32"
	2
	2 5/8"
	1
	8

4 5/8"

7

2 13/32"

Ordering Information

Catalog No.	Finishes	Track Mountings	Lamps
6276B WH	Matte White	All Lytespan Track	MR16 50W Max.
6276B BK	Matte Black	Systems	37W IR Max.
6276B AL	Metallic Aluminum

Features

1.Ring: Die-cast aluminum with cool grip insulation band, a high temperature silicone rubber, which allows aiming adjustments while fixture is on.

2.Socket: Bi-pin ceramic socket wired with 18 ga. stranded Teflon® leads, with fiberglass outer sleeve.

3.Transformer: Class two electronic transformer for 12V halogen lamps, housed in an aluminum extrusion.

4.Track Attachment Fitting: Molded polycarbonate, rotates into track and locks on with push tab; integral polarity key guard.

5.Push Tab: Locks and detaches unit from track.

6.Brass Contact: Extends for connection to second circuit in Advent® Lytespan track.

7.Tension Pivot Mounts: Die-cast aluminum. Allows for 180° horizontal rotation and 180° vertical rotation.

8.Lamp Guard: Tempered glass.

9.Housing: Aluminum, fully encloses lamp back and socket. Vents dissipate lamp heat. Die-Cast Aluminum.

Options & Accessories

Accessory Holder (7662) may be used with

One SNOOT (22SR6AL, BK, WH) plus one lens* or louver. or One Lens (AF2 Series or ADF2 Series)

or One Louver (AL2 Series).

Electrical/Dimming

Dimming controls: Use only dimmers specifically designed for use with electronic transformers, like Lightolier SunriseTM and Neptune Momentum QETM series. Low voltage fixtures may produce audible sound when used with dimmers, which may be objectionable in acoustically critical areas.

Labels

UL, CUL

Teflon® is a registered trademark of E.I. DuPont.

Job Information Type:

Job Name:

Cat. No.:

Lamp(s):

Notes:

*Color Filters (ADF2 Series) may not be used with a SNOOT.
