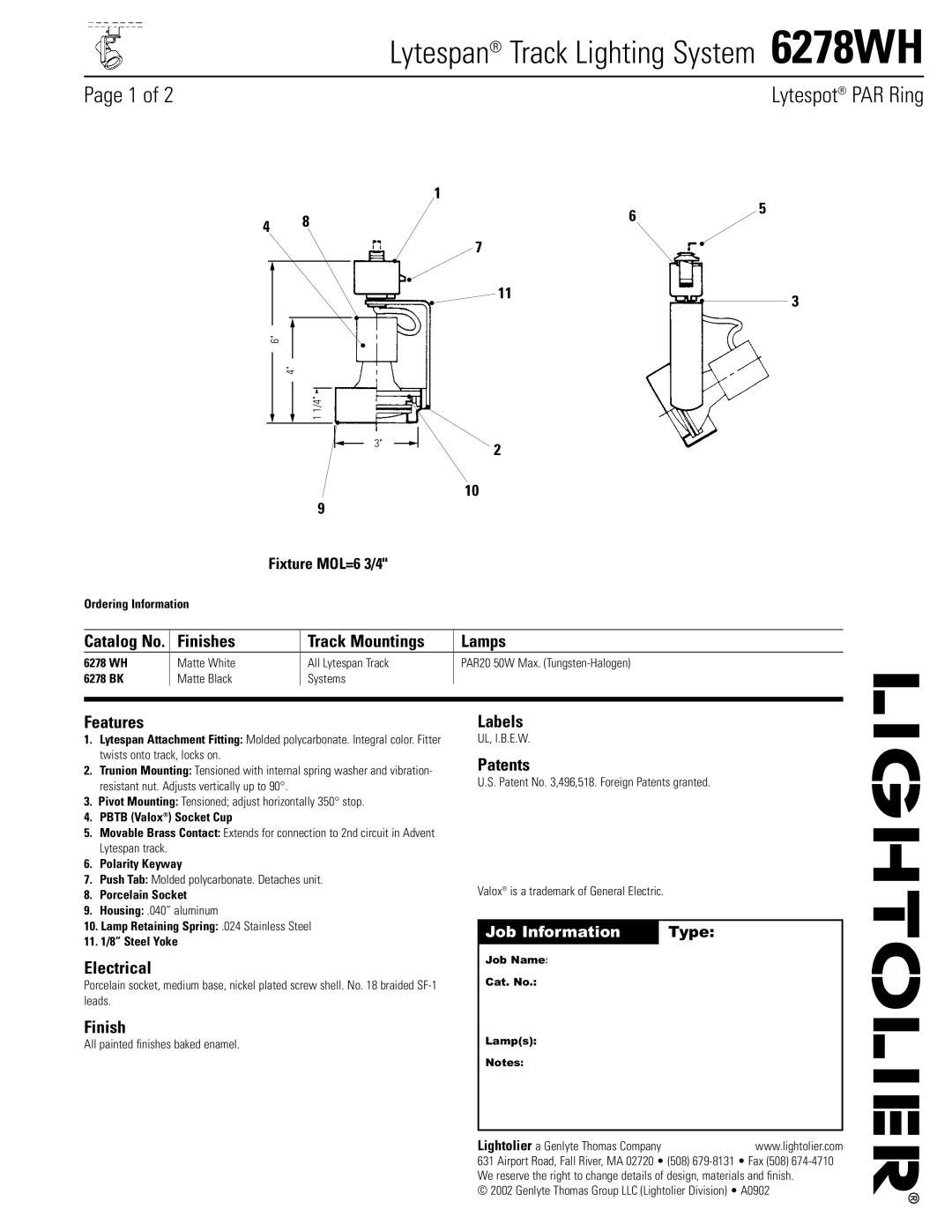

Lytespan® Track Lighting System 6278WH
Page 1 of 2 | Lytespot® PAR Ring |
1
4 | 8 |
|
|
|
| 6 | 5 | |||
|
|
|
|
| ||||||
|
|
|
|
|
| |||||
|
|
|
|
|
|
|
|
|
| |
|
|
|
|
|
|
|
| 7 |
|
|
|
|
|
|
|
|
|
| 11 |
| 3 |
|
|
|
|
|
|
|
|
|
| |
|
|
|
|
|
|
|
|
|
|
|
| 6" |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| ||
|
| 4" |
|
|
|
|
|
|
| |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| 1 1/4" |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| 3" | 2 |
|
| ||
|
|
|
|
|
|
|
|
|
| |
|
|
|
|
|
|
|
|
|
| |
10
9
Fixture MOL=6 3/4"
Ordering Information
Catalog No. | Finishes | Track Mountings | Lamps |
6278 WH | Matte White | All Lytespan Track | PAR20 50W Max. |
6278 BK | Matte Black | Systems |
|
|
|
|
|
Features
1.Lytespan Attachment Fitting: Molded polycarbonate. Integral color. Fitter twists onto track, locks on.
2.Trunion Mounting: Tensioned with internal spring washer and vibration- resistant nut. Adjusts vertically up to 90°.
3.Pivot Mounting: Tensioned; adjust horizontally 350° stop.
4.PBTB (Valox®) Socket Cup
5.Movable Brass Contact: Extends for connection to 2nd circuit in Advent Lytespan track.
6.Polarity Keyway
7.Push Tab: Molded polycarbonate. Detaches unit.
8.Porcelain Socket
9.Housing: .040” aluminum
10.Lamp Retaining Spring: .024 Stainless Steel
11.1/8” Steel Yoke
Electrical
Porcelain socket, medium base, nickel plated screw shell. No. 18 braided
Finish
All painted finishes baked enamel.
Labels
UL, I.B.E.W.
Patents
U.S. Patent No. 3,496,518. Foreign Patents granted.
Valox® is a trademark of General Electric.
