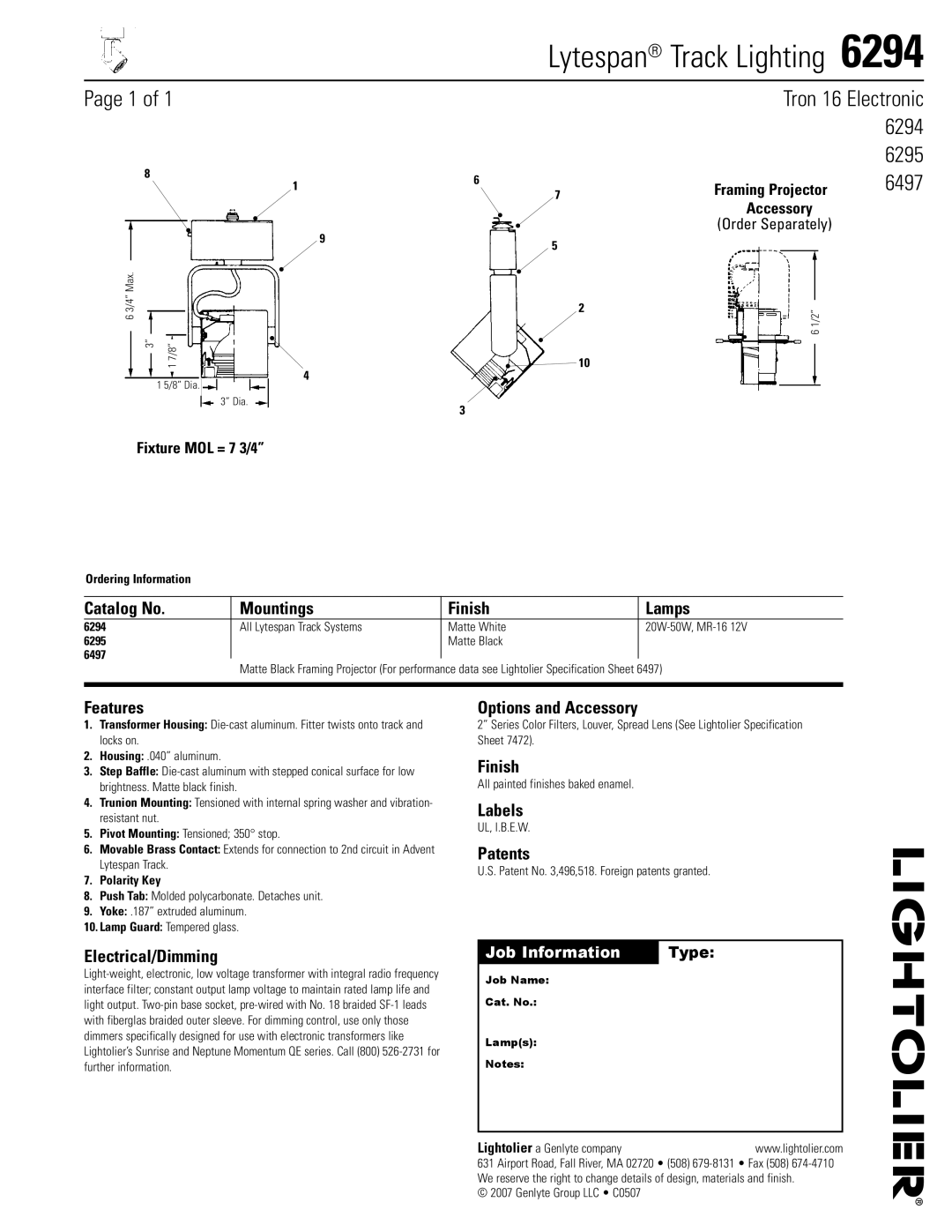

Lightolier 6294 specifications Lytespan Track Lighting, Page 1 of, Catalog No, Mountings, Finish

Lytespan® Track Lighting  6294

Page 1 of

8	1	6
		9

6 3/4” Max.

3”
		7/8”
		1		4
	1 5/8” Dia.
			3” Dia.	3

7

5

2

10

Tron 16 Electronic 6294 6295

Framing Projector 6497

Accessory

(Order Separately)

6 1/2”

Fixture MOL = 7 3/4”

Ordering Information

Catalog No.	Mountings	Finish	Lamps
6294	All Lytespan Track Systems	Matte White	20W-50W, MR-16 12V
6295		Matte Black
6497

Matte Black Framing Projector (For performance data see Lightolier Specification Sheet 6497)

Features

1.Transformer Housing: Die-cast aluminum. Fitter twists onto track and locks on.

2.Housing: .040” aluminum.

3.Step Baffle: Die-cast aluminum with stepped conical surface for low brightness. Matte black finish.

4.Trunion Mounting: Tensioned with internal spring washer and vibration- resistant nut.

5.Pivot Mounting: Tensioned; 350° stop.

6.Movable Brass Contact: Extends for connection to 2nd circuit in Advent Lytespan Track.

7.Polarity Key

8.Push Tab: Molded polycarbonate. Detaches unit.

9.Yoke: .187” extruded aluminum.

10.Lamp Guard: Tempered glass.

Electrical/Dimming

Light-weight, electronic, low voltage transformer with integral radio frequency interface filter; constant output lamp voltage to maintain rated lamp life and light output. Two-pin base socket, pre-wired with No. 18 braided SF-1 leads with fiberglas braided outer sleeve. For dimming control, use only those dimmers specifically designed for use with electronic transformers like Lightolier’s Sunrise and Neptune Momentum QE series. Call (800) 526-2731 for further information.

Options and Accessory

2” Series Color Filters, Louver, Spread Lens (See Lightolier Specification Sheet 7472).

Finish

All painted finishes baked enamel.

Labels

UL, I.B.E.W.

Patents

U.S. Patent No. 3,496,518. Foreign patents granted.

Job Information Type:

Job Name:

Cat. No.:

Lamp(s):

Notes:

Lightolier a Genlyte companywww.lightolier.com 631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710 We reserve the right to change details of design, materials and finish.

© 2007 Genlyte Group LLC • C0507
