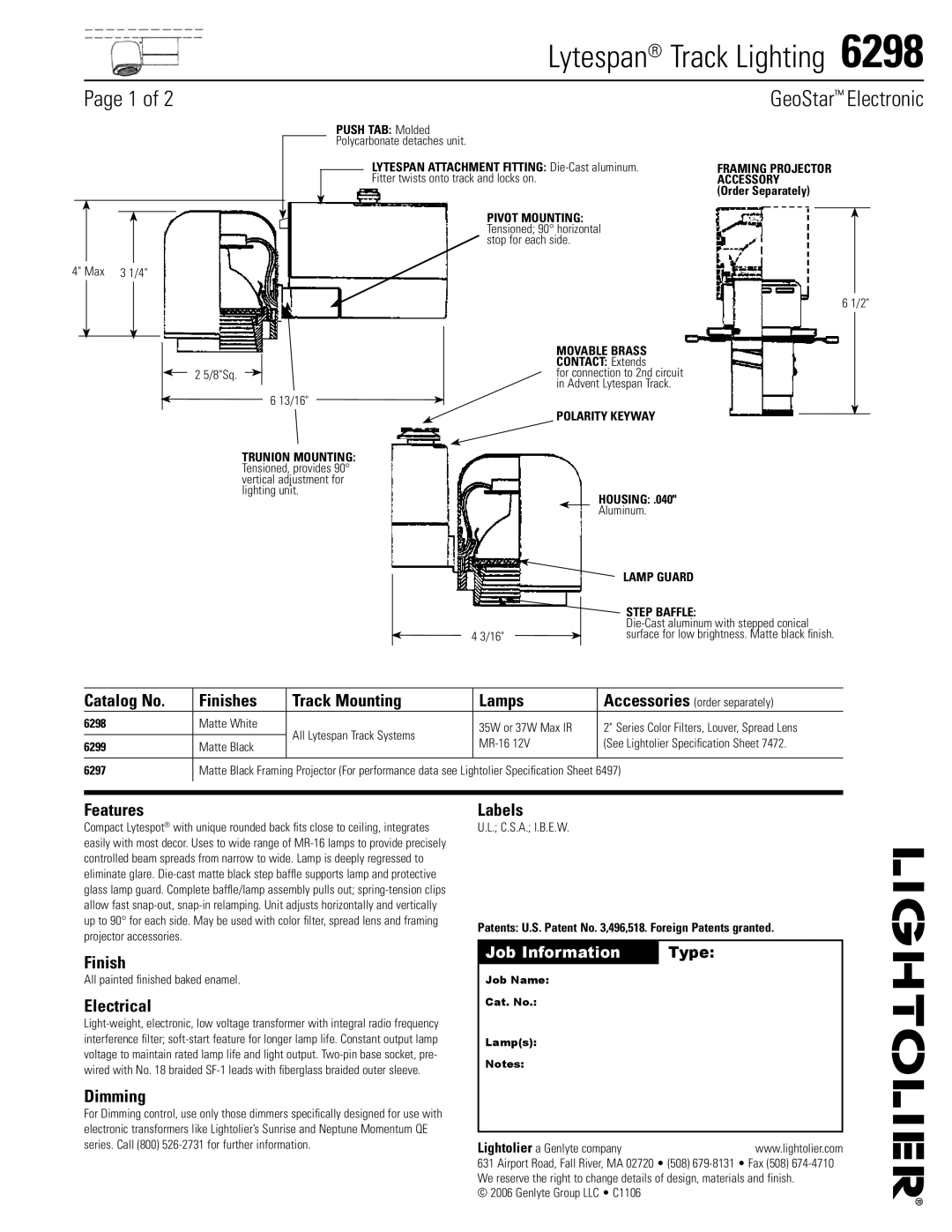

	Lytespan® Track Lighting  6298
Page of 2	GeoStar™ Electronic

PUSH TAB: Molded

Polycarbonate detaches unit.

4" Max 3 1/4"

2 5/8"Sq.

6 13/16"

TRUNION MOUNTING: Tensioned, provides 90° vertical adjustment for lighting unit.

LYTESPAN ATTACHMENT FITTING: Die-Cast aluminum.	FRAMING PROJECTOR
Fitter twists onto track and locks on.	ACCESSORY
	(Order Separately)
PIVOT MOUNTING:
Tensioned; 90° horizontal
stop for each side.

6 1/2"

MOVABLE BRASS

CONTACT: Extends

for connection to 2nd circuit in Advent Lytespan Track.

POLARITY KEYWAY

	HOUSING: .040"
	Aluminum.
	LAMP GUARD
	STEP BAFFLE:
	Die-Cast aluminum with stepped conical
4 3/16"	surface for low brightness. Matte black finish.

Catalog No.	Finishes	Track Mounting	Lamps	Accessories (order separately)
6298	Matte White	All Lytespan Track Systems	35W or 37W Max IR	2" Series Color Filters, Louver, Spread Lens
6299	Matte Black		MR-16 12V	(See Lightolier Specification Sheet 7472.
6297	Matte Black Framing Projector (For performance data see Lightolier Specification Sheet 6497)

Features

Compact Lytespot® with unique rounded back fits close to ceiling, integrates easily with most decor. Uses to wide range of MR-16 lamps to provide precisely controlled beam spreads from narrow to wide. Lamp is deeply regressed to eliminate glare. Die-cast matte black step baffle supports lamp and protective glass lamp guard. Complete baffle/lamp assembly pulls out; spring-tension clips allow fast snap-out, snap-in relamping. Unit adjusts horizontally and vertically up to 90° for each side. May be used with color filter, spread lens and framing projector accessories.

Finish

All painted finished baked enamel.

Electrical

Light-weight, electronic, low voltage transformer with integral radio frequency interference filter; soft-start feature for longer lamp life. Constant output lamp voltage to maintain rated lamp life and light output. Two-pin base socket, pre- wired with No. 18 braided SF-1 leads with fiberglass braided outer sleeve.

Dimming

For Dimming control, use only those dimmers specifically designed for use with electronic transformers like Lightolier’s Sunrise and Neptune Momentum QE series. Call (800) 526-2731 for further information.

Labels

U.L.; C.S.A.; I.B.E.W.

Patents: U.S. Patent No. 3,496,518. Foreign Patents granted.

Job Information Type:

Job Name:

Cat. No.:

Lamp(s):

Notes:
