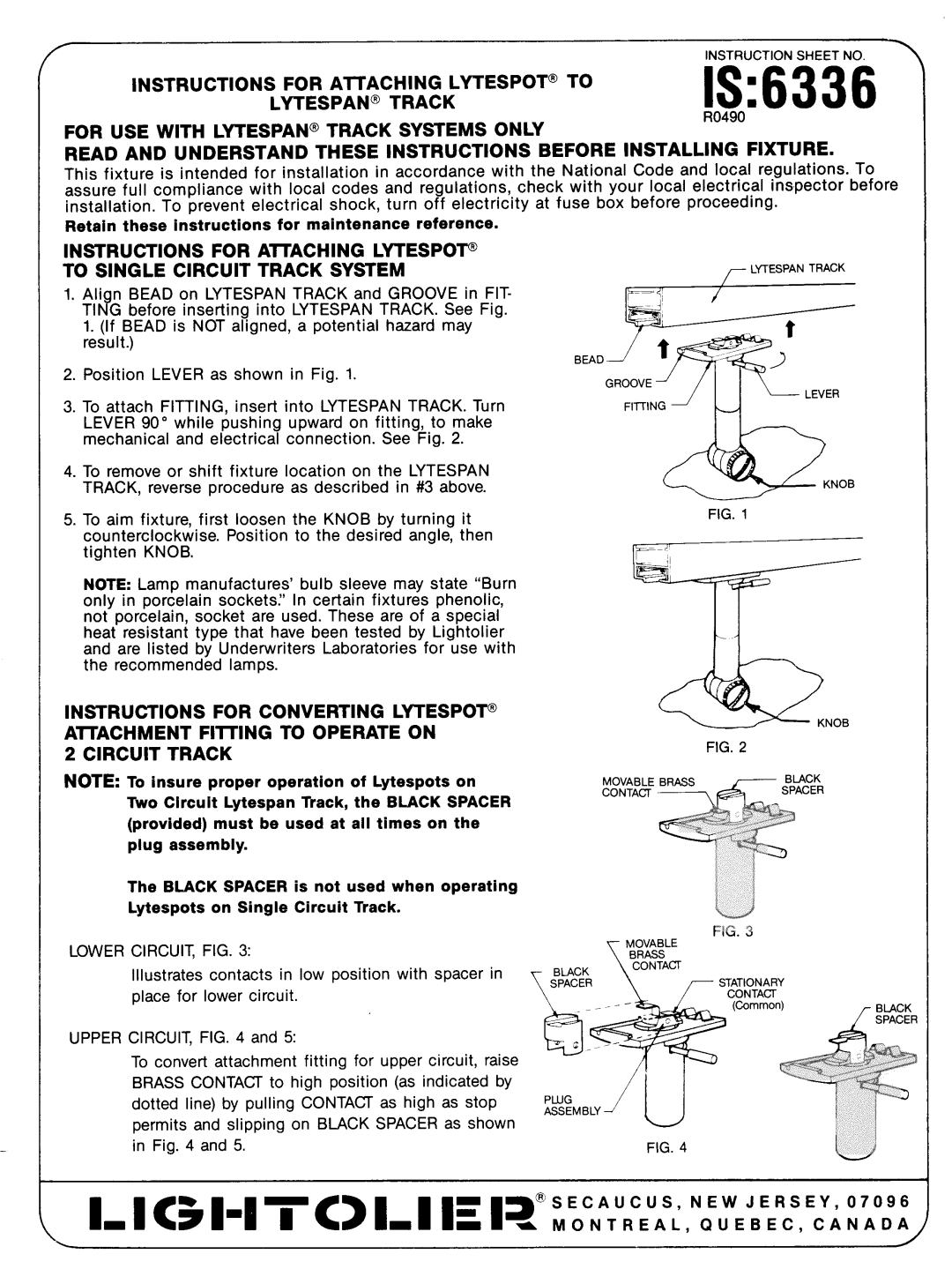

/			INSTRUCTION SHEET NO.
INSTRUCTIONS	LYTESPAN” TRACK	LYTESPOT” TO	IS:6336
	FOR AITACHING
FOR USE WITH LWESPAN” TRACK SYSTEMS ONLY			R0490

READ AND UNDERSTAND THESE INSTRUCTIONS BEFORE INSTALLING FIXTURE.

This fixture is intended for installation in accordance with the National Code and local regulations. To assure full compliance with local codes and regulations, check with your local electrical inspector before

installation. To prevent electrical shock, turn off electricity at fuse box before proceeding.

Retain these instructions for maintenance reference.

INSTRUCTIONS FOR AITACHING LYTESPO~ TO SINGLE CIRCUIT TRACK SYSTEM

1.Align BEAD on LYTESPAN TRACK and GROOVE in FIT- TiNG before inserting into LYTESPAN TRACK. See Fig. 1. (if BEAD is NOT aligned, a potentiai hazard may result.)

2.Position LEVER as shown in Fig. 1.

3.To attach FiTTi NG, insert into LYTESPAN TRACK. Turn LEVER 90° whiie pushing upward on fitting, to make mechanical and electrical connection. See Fig. 2.

4.To remove or shift fixture location on the LYTESPAN TRACK, reverse procedure as described in #3 above.

5.To aim fixture, first loosen the KNOB by turning it

counterclockwise. Position to the desired angle, then tighten KNOB.

NOTE: Lamp manufactures’ bulb sleeve may state “Burn oniy in porcelain sockets.” in certain fixtures phenoiic, not porcelain, socket are used. These are of a speciai heat resistant type that have been tested by Lightolier and are listed by Underwriters Laboratories for use with

the recommended lamps.

INSTRUCTIONS FOR CONVERTING LYTESPOT@

Attachment FllTING TO OPERATE ON 2 CIRCUIT TRACK

NOTE: To insure proper operation of Lytespots on Two Circuit Lytespan Track, the BLACK SPACER (provided) must be used at aii times on the piug assembiy.

The BLACK SPACER is not used when operating Lytespots on Singie Circuit Track.

LOWER CIRCUi~ FIG. 3:

Illustrates contacts in low position with spacer in place for lower circuit.

UPPER CIRCUIT, FiG. 4 and 5:

To convert attachment fitting for upper circuit, raise BRASS CONTACT to high position (as indicated by dotted line) by pulling CONTACX as high as stop permits and slipping on BLACK SPACER as shown in Fig. 4 and 5.

.m.m

GROOVE

– LEVER

FllTING m

&KNoB

FIG. 1

&KNOB

FIG. 2
